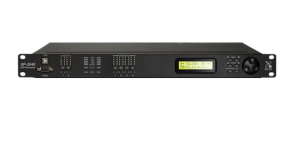

SOLARO FR1-D
Original price was: €4,615.00.€4,155.00Current price is: €4,155.00. (inc. VAT)
Xilica The FR1-Frame as above but with the MOD-Dante-ETH module already pre-installed into the FR1-Frame-Dante mainframe to provide 64×64 I/O channels of Dante network audio. Dual RJ45 Dante and single RJ45 Ethernet connectors.
Out of stock
Deliver premium collaboration experiences without the cost. Solaro FR1 is a 1U 16-card-slot DSP with modular I/O functionality
that can evolve to meet your future requirements, while benefiting from the processing power to drive multiple rooms
over an installed CatX network. Xilica’s open-architecture digital signal processor can be populated with any combination
of Solaro Series I/O card, offering capabilities including analog audio, USB (with volume/mute HID support), GPIO,
relay control and AES/EBU digital audio. Incorporating the optional XC-CTODN module for networked audio, Solaro FR1
can handle up-to 64×64 bi-directional channels of audio over Dante™, using standard CatX cable with no proprietary
switches. With the capability to grow as you need, Solaro FR1 is a multi-purpose, scalable signal processor suited to
most medium-to-large applications including multi-room conferencing, education spaces, and mass communication.
TECHNICAL SPECIFICATIONS
Electrical
THD+N (22Hz to 22kHz) 0.002% (1kHz @ +4dBu)
EIN <125dBu, unweighted (20Hz to 20kHz)
Dynamic Range 110dB, unweighted
Propagation Delay 4ms
Crosstalk, input to input, 1kHz <110dB
Sampling Rate 48kHz
A/D-D/A Converters 32-bit
Acoustic Echo Cancellation Requires HearClear™ license; 250ms latency at eight channels, 100ms at 16 channels
BTU/Heat Load 205 BTU/hr
Processor Type 40-bit floating point
Phantom Power +48VDC (with XC-SML)
Power Supply 90-240 VAC (50-60Hz) via internal power supply with IEC socket
Power Consumption <60W
Ambient Operating Temperature 32-104°F (0–40°C)
Humidity 0–98%, non-condensing
Altitude 0-6,600 feet (0–2000 Meters) MSL
Network Connections Without XC-CTODN: 1x RJ45 (≥Cat 5e) for control.
With XC-CTODN: 3x RJ45 (≥Cat 5e) including dual dedicated 1000Mbps
Dante™ connections and separate Ethernet port for control
USB (with XC-SUB) Bit depth: 16-bit
Number of channels: 2×2, send and receive
Driver sample rate: 48kHz
Card sample rate: follows DSP settings
Connector: USB B, female
Dante™ Requires XC-CTODN; 64×64 bi-directional (primary, secondary) with dual NIC; AES67
