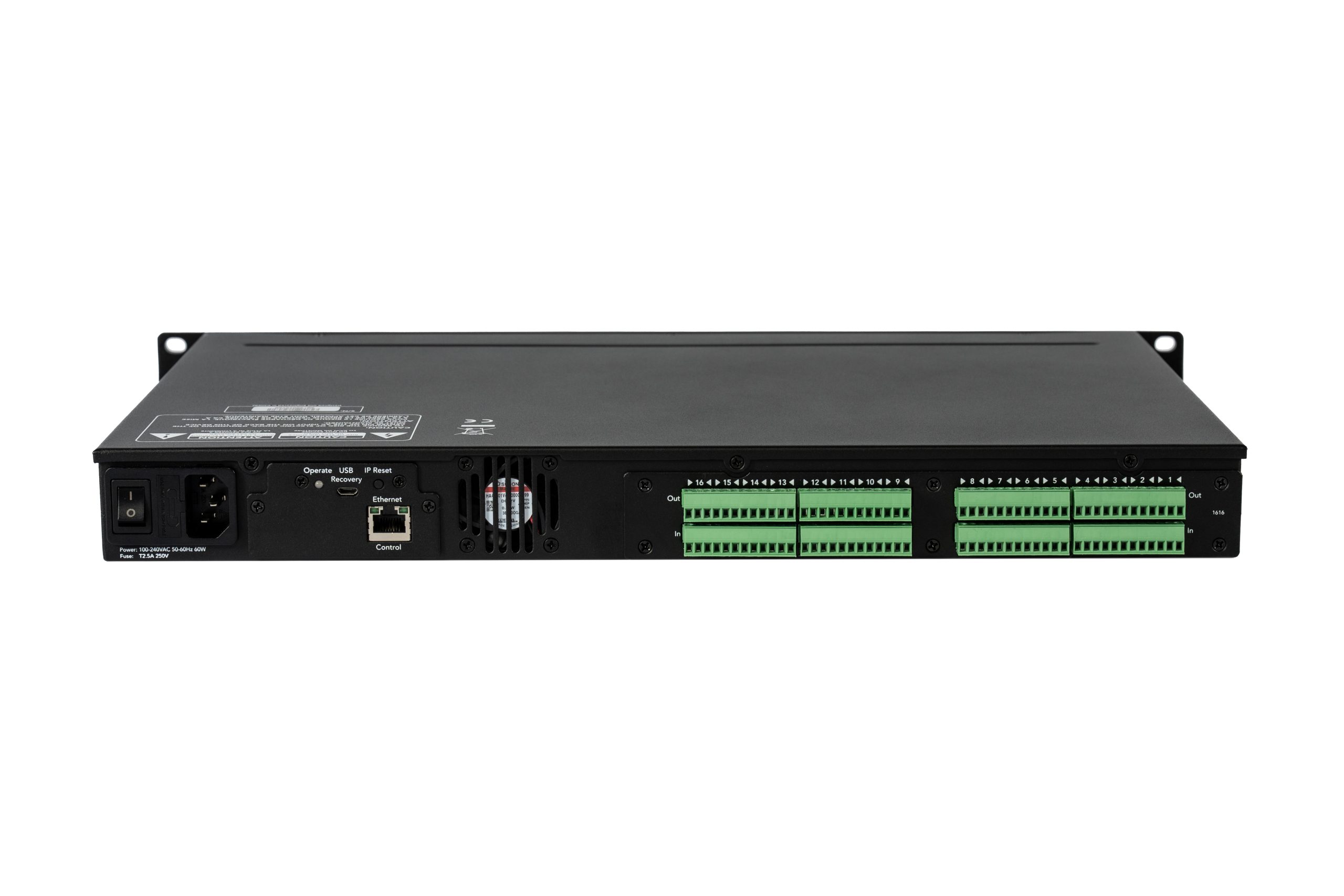

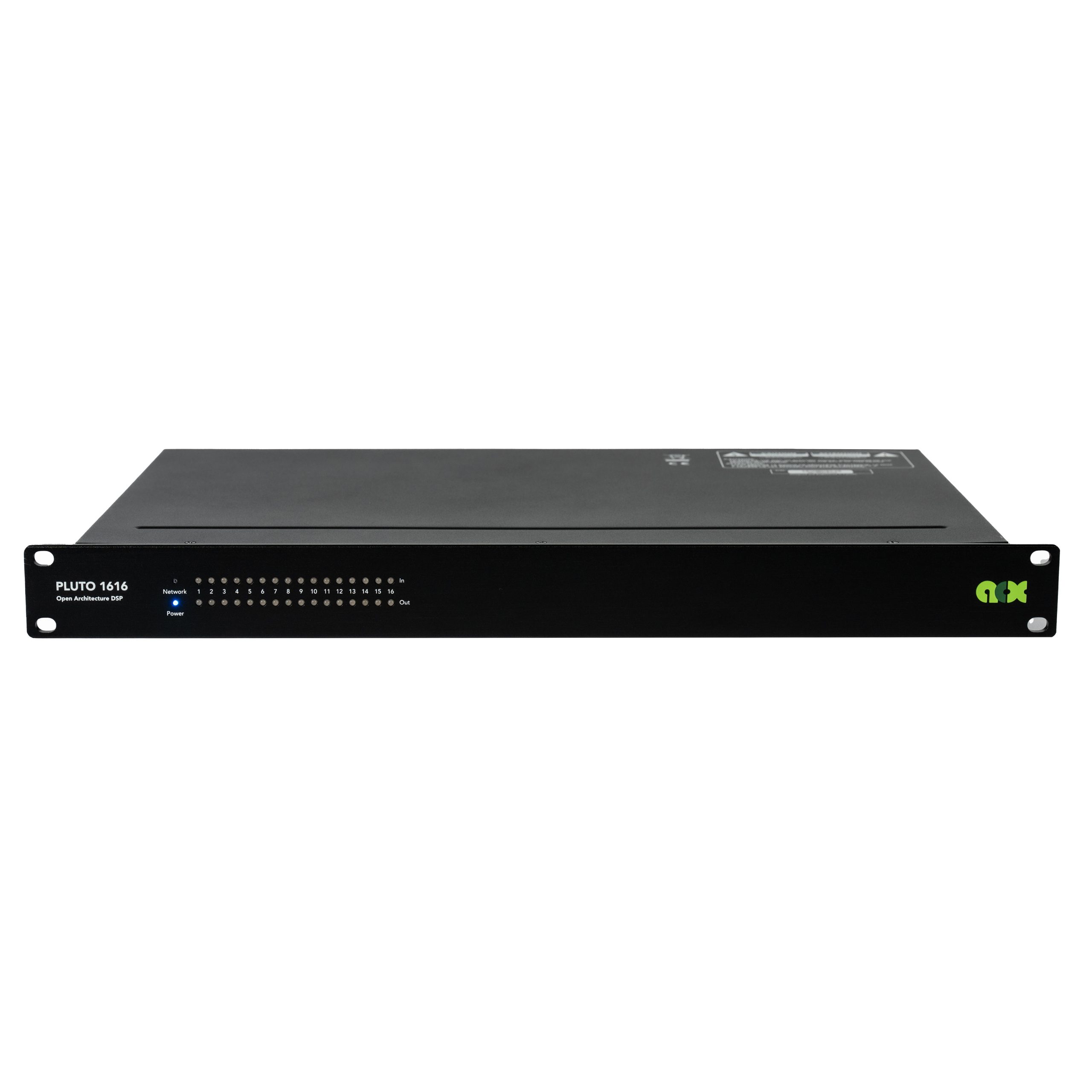

Pluto 1616
Original price was: €3,267.00.€2,940.00Current price is: €2,940.00. (inc. VAT)
16-in 16-out Audio Processor with Dante option
Only 1 left in stock
Description
Introducing the Pluto Series: the new generation of high-end Digital Sound Processing from ACX Audio. A range designed for multifunctional use in any application where premium audio
processing and optional room control are desired. The series consists of multiple I/O configurations: analog I/O frames of 12×8, 16×16, and 18×10, each optionally equipped with 64×64 Dante channels.
A compact 8×4 model comes with 2×2 USB audio and 4×4 Dante standard on board.
Features
- Open Architecture-Drag & Drop DSP
- Innovative ACX software for MAC & PC
- Premium Grade Mic Pre-Amps
- Mic/Line Input Selection per Input with 48V Phantom Power
- Ethernet Connectivity and Control
- Free ACXTouch Software
- Third Party Control
Specifications
- Maximum level: +20dBU
- Frequency response: 20 to 20kHz +/- 0.15dB
- THD+N (22Hz to 22kHz): 0.002% (1kHz @ +4dBu)
- Dynamic Range: 110dB, unweighted
- Transmission Delay: 4ms / 2ms (corresponding to 48/96 kHz)
- Crosstalk, input to input, 1kHz: <110dB
- Sampling Rate: 48kHz / 96kHz switchable
- A/D-D/A Converters: 32-bit
- Processor type: Dynamic, up to 64-bit Floating Point
- Phantom Power: +48VDC, total budget 300mA
- AEC: 100ms x 16 channels or 250ms x 8 channels
- Warranty: 3 Years
