ZOOMMS-90LP+

Memory

• Number of Memories: 100
• Maximum Recording Time: 90 minutes (1 track)/13 hours or more (total)

Audio

• Sampling Frequency: 44.1kHz
• Signal Processing: 32-bit float
• Number of Recording and Playback Tracks: 1
• Data Format: WAV (44.1kHz, stereo, 32-bit floating-point)
• Frequency Response: 20Hz–20kHz (+0.5dB/-0.5dB) (when 10kohm load)
• Input S/N: 122dB
• Noise Floor (residual noise): -100dBu

Inputs

• L/R: Standard mono phone jacks
• Rated Input Level: -20dBu
• Input Impedance (line): 470 kohm

Outputs

• L/R: Standard mono phone jacks
• Maximum Output Level: +7.2dBu (when output impedance 10 kohm or higher)

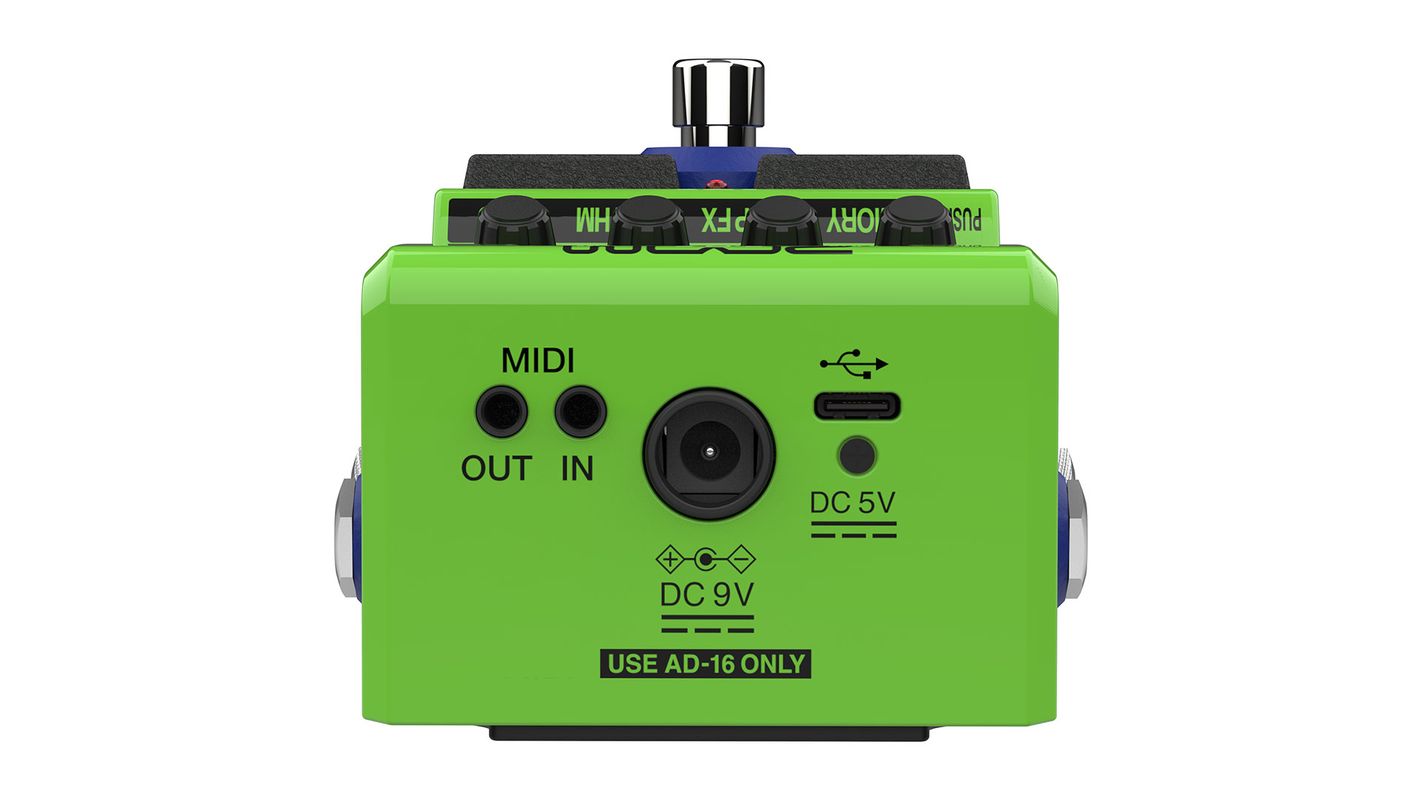

Connectors

• MIDI IN/OUT jacks: Stereo mini type
• USB Port: USB 2.0 Type-C

Power

• AC Adapter: 9V DC 500mA center negative (ZOOM AD-16)
• Batteries: 2 AA batteries (alkaline, lithium, or rechargeable NiMH)
• Estimated Operation Times (alkaline batteries): about 4 hours (about 3.5 hours using stereo input)

Dimensions

• 133 mm (D) x 79 mm (W) x 61 mm (H)
