The Record-Everything Recorder

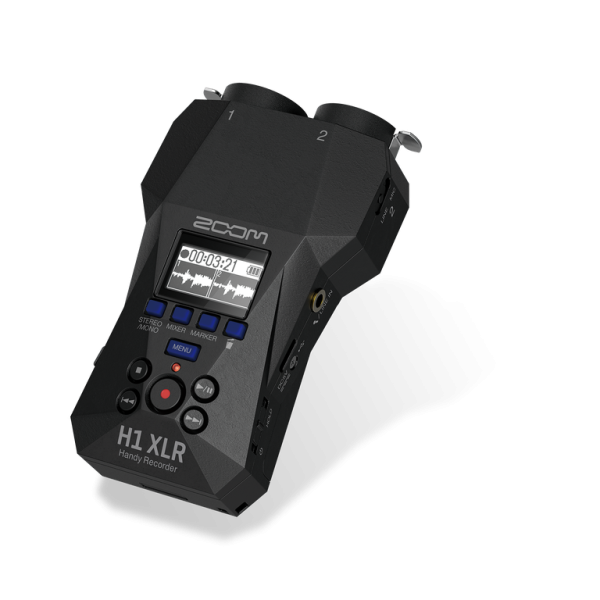

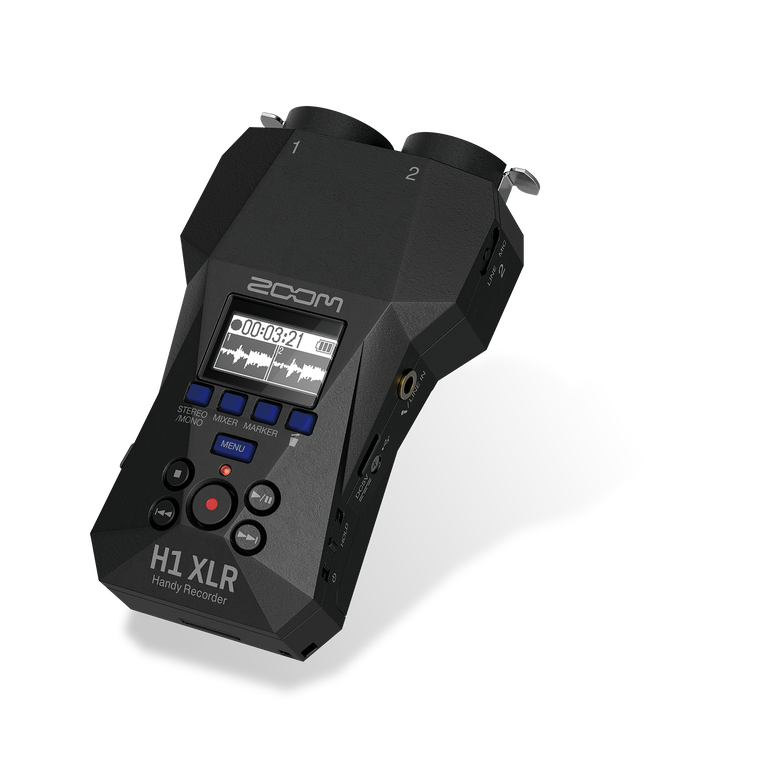

The H1 XLR Handy Recorder
In stock
Description
Zoom compact 32- Bit Recorder with two lockable XLR/TRS combo inputs
Features
- 2-track 32-bit float recorder with Dual A/D Converters
- Clip-free recording with no need to set gain
- Records up to 96kHZ sample rate
- Voice Guidance accessibility for the visually impaired

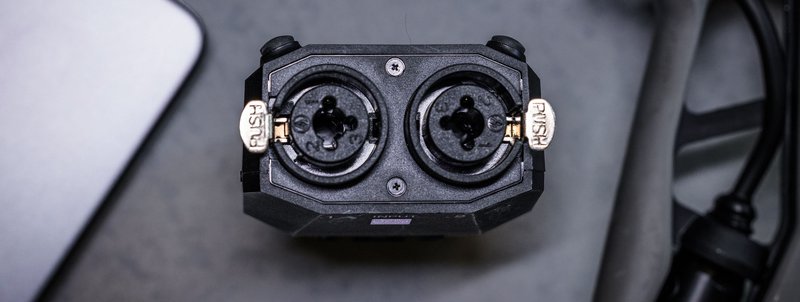

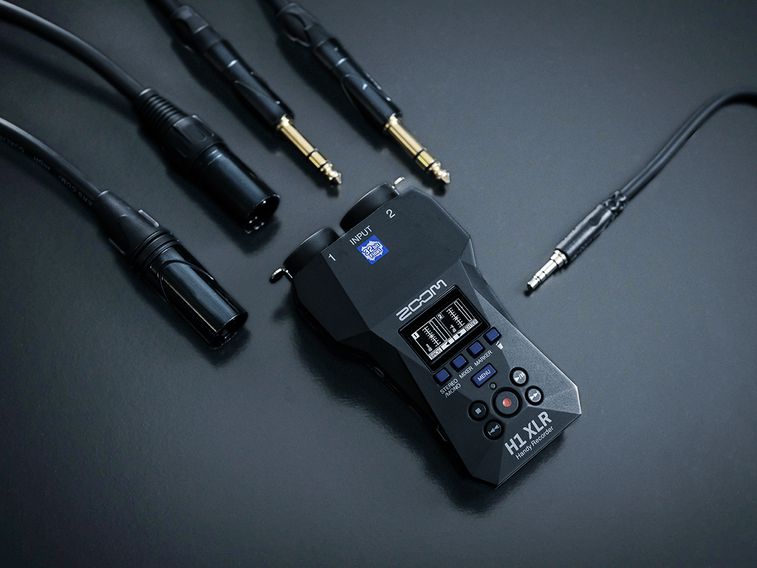

- 2 XLR/TRS combo inputs with locking connector
- Hardware MIC/LINE input level select switch for each input
- Stereo ⅛” Mic/Line In mini phone jack
- Stereo ⅛” Phone/Line Output jack with dedicated volume control
- ¼ | 20 Tripod mount
- Real time waveform display on OLED display
- Built-in mixer to adjust each track’s audio input level
- Built-in speaker for quick reference playback and voice guidance accessibility
- 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
- Use as an interface and record to SD card simultaneously
- Records directly to microSDHC and microSDXC cards up to 1 TB
- 10 hours of battery life on AA battery (2x) or USB-C Bus Power
Specifications
INPUTS
| MIC/LINE (mono) | Connectors | 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
|---|---|---|
| Input gain | Adjustment unnecessary (dual A/D converter circuits used) | |
| Input impedance | MIC: 2.7 kΩ or more | |
| LINE: 1 kΩ or more | ||
| Maximum input level | MIC: +4 dBu | |
| LINE: +24 dBu | ||
| Phantom power | +48 V | |
| Channel total 10 mA or less | ||
| Equivalent input noise | MIC: –122 dBu or less (IHF-A) at 150Ω input | |
| LINE: –100 dBu or less (IHF-A) at 600Ω input | ||
| MIC/LINE IN jack | Connector | Stereo mini jack |
| Input impedance | 2 kΩ | |
| Plug-in power | 2.5 V | |
OUTPUTS
| PHONE / LINE OUT jack | Connector | Stereo mini jack |
|---|---|---|
| Maximum output level | 20 mW + 20 mW (when 32 Ω load) | |
| Output impedance | 10 Ω or less | |
| Built-in speaker | Type | 20 mm × 30 mm elliptical dynamic speaker |
| Effective maximum output | 250mW | |
RECORDER
| Recording format | WAV |
|---|---|
| 44.1, 48 or 96 kHz / 32-bit float | |
| Stereo / Mono | |
| BWF and iXML formats supported | |
| Recording media | 4 – 32GB cards compatible with the microSDHC specification |
| 64GB – 1TB cards compatible with the microSDXC specification | |
DISPLAY
| OLED | 128 x 64 |
|---|---|
USB
| Connector | USB Type-C | |
|---|---|---|
| • Use a USB cable that supports data transfer. | ||
| Audio interface | USB Audio Class 1.0 | |
| Input and output channels | 2 in / 2 out (Stereo) | |
| Sampling frequencies | 44.1, 48 kHz | |
| Bit depths | 16-bit, 32-bit float | |
| File transfer | USB 2.0 High Speed | |
POWER
| 2 AA batteries | Alkaline, Lithium, or Rechargeable NiMH |
|---|---|
| AC adapter | ZOOM AD-17: DC 5 V/1 A |
| • USB bus power is supported. | |
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (Phantom Power OFF)
| Alkaline batteries | About 12 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 11 hours |
| Lithium batteries | About 19 hours |
INPUT 1 and 2 recording at 48 kHz/32-bit float, phantom power off, no headphones, Power Save Time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES (Phantom Power ON)
| Alkaline batteries | About 4 hours |
|---|---|
| NiMH batteries (1900 mAh) | About 3 hours |
| Lithium batteries | About 9 hours |
INPUT 1 and 2 recording at 48 kHz/32-bit float, phantom power on (INPUT 1), no headphones, Power Save Time set to 1 minute
These values are approximate.
Continuous battery operation times were determined using in-house testing methods.
They will vary greatly according to use conditions.
| Power consumption | 2.5 W maximum |
|---|---|
| Dimensions | 62.1 mm (W) × 107 mm (D) × 39.3 mm (H) |
| Weight (including batteries) | 164 g |
