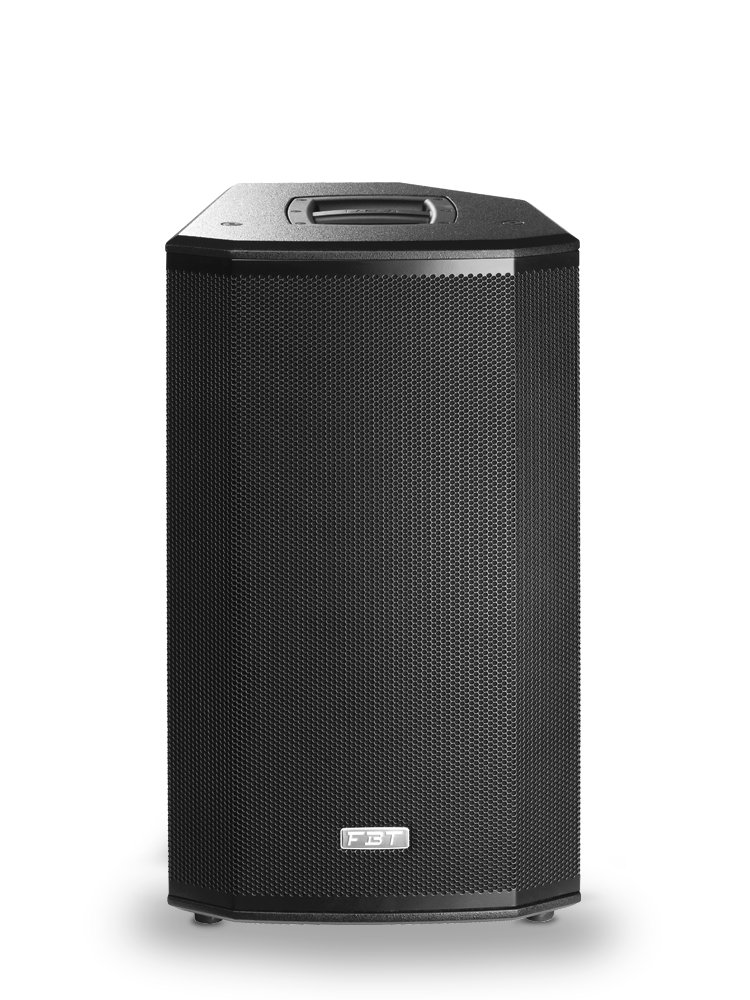

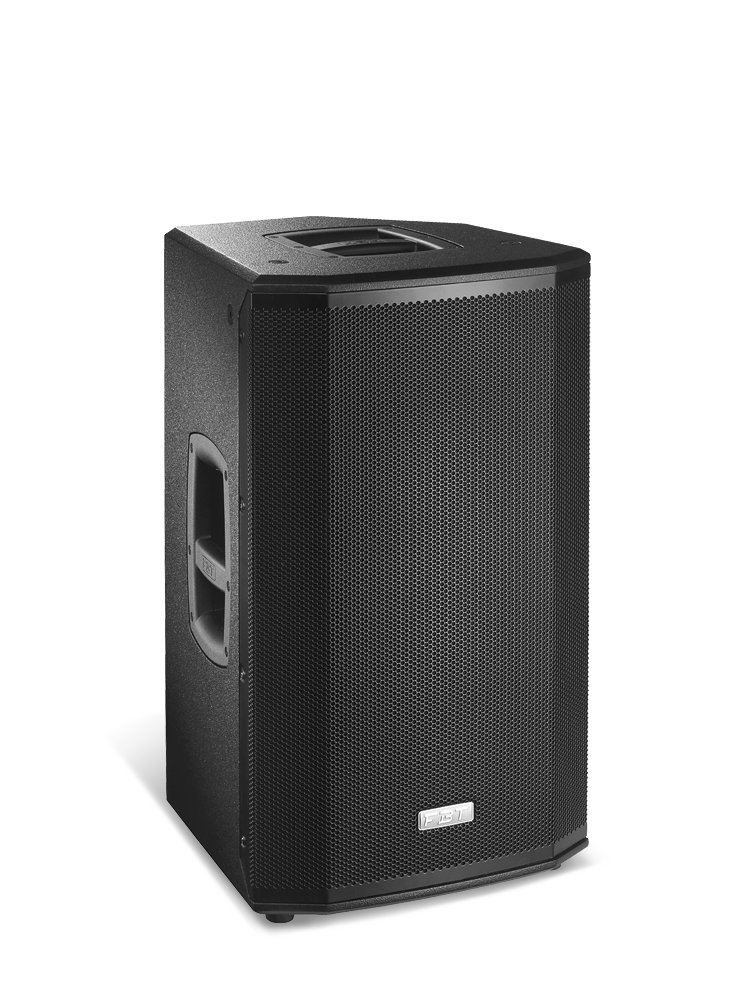

High-Power Ventis 112 A Active Speaker – 12″ Woofer, 133 d B SPL
Original price was: €1,800.00.€1,530.00Current price is: €1,530.00. (inc. VAT)
2-way Bass reflex Active speaker – 12″ + 1″ – 700Wrms+200Wrms
Out of stock
Ventis 112A Active Speaker12″ + 1″ 700w + 200w with DSP and Delay Active SpeakerVentis 112A is part of the Ventis range which are ideal for portable performance or fixed installation. This Active speaker includes an 12″ woofer and a 1″ exit 1.4″VC compression driver .The built in DSP LCD screened Amp module is 700W + 200W Delivering 133dB SPL. Features a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille. optional brackets for installation are available
·2-way, bi-amplified, bass reflex design
·Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
·Digital Signal Processor with graphic display
·15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing
·High efficiency switch mode power supply
·Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
·320mm (12") LF woofer with 64mm (2.5") voice coil, custom made for FBT
·25mm (1") exit throat B&C HF compression driver with 36mm (1.4") voice coil
·Frequency response from 48Hz to 20 kHz
·80°H x 50°V Constant Directivity Rotatable Horn
·6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8") top-hat
·Speaker stand socket, two aluminium handles
·45° monitor taper
·Adjustable delay between 0 - 10m
·Weight : 20.6Kg
·Dimensions : 387 x 665 x 380mm
·Configuration: 2 Way
·Frequency response: 42Hz - 20kHz -6dB
·Low frequency woofer: 12
·High frequency driver: 1
·Maximum SPL cont/peak: 126/133dB
·Dispersion: 80 x 50 rotatable
·Input impedance: 22kOhm
·Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
·Net Dimension (WxHxD): 387 x 665 x 380mm
·Net Weight: 20.6kg
·Transport Dimension (WxHxD): 500 x 765 x 470mm
·Transport Weight: 23.1kg
·AC Power requirements: 640VA
·Built-in amplifier LF/HF: 900w (700w LF + 200w HF)
·Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
·Power cord: 5m
·Built in amplifier: 900w (700w LF + 200w HF)
·Built in amplifier peak: 1800w (1400w LF + 400w HF)
·Maximum SPL continuous/peak: 126/133dB
·Dispersion (HxV): 80? x 50? rotatable
