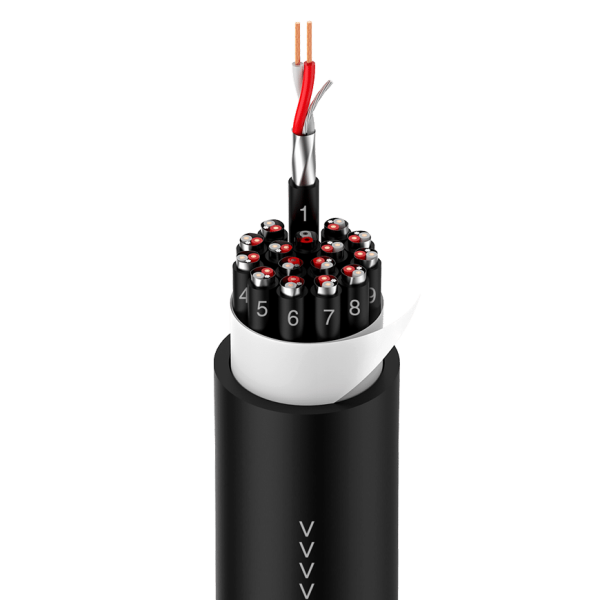

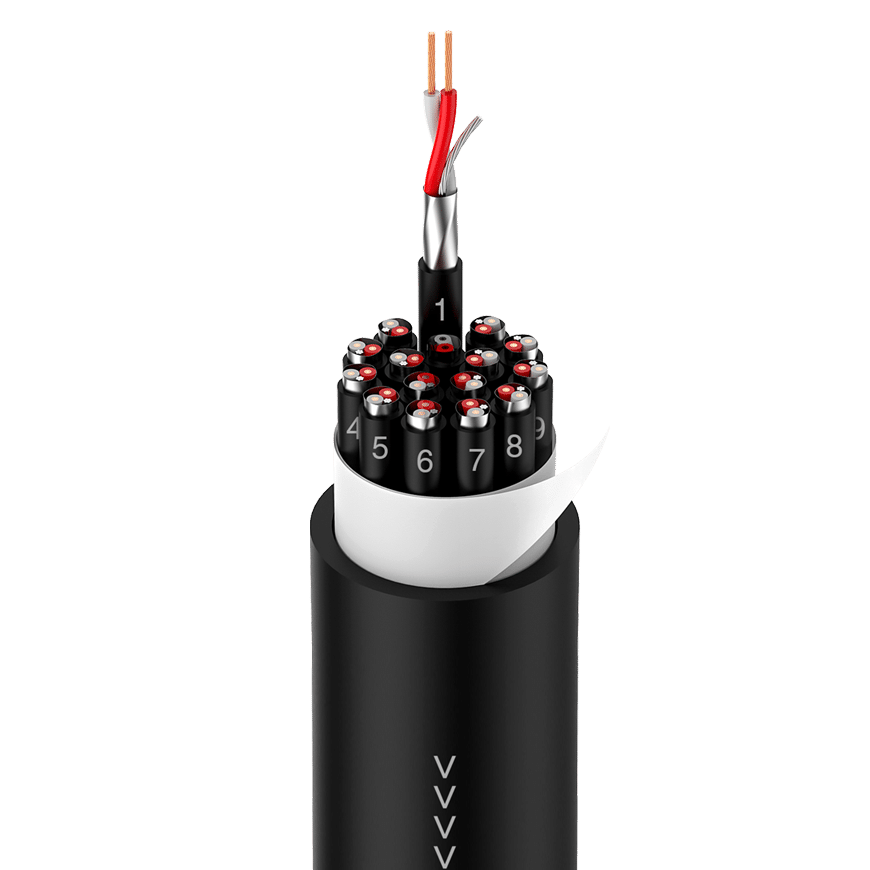

Name: High-Quality 26 AWG Multicore Audio Cable - Per Meter
Brand: ROXTONE
SKU: TCE8C
Availability: InStock

High-Quality 26 AWG Multicore Audio Cable – Per Meter

(inc. VAT)

For orders in non-standard lengths, a preparation time of 2 business days applies.

In stock

Technical Data
Order Code	TCE2	TCE4	TCE8	TCE12
PVC jacket, diameter	8.5 mm	10 mm	14 mm	15 mm
Cond. PVC jacket,diameter	3.0 mm	3.0 mm	3.0 mm	3.0 mm
AWG	26	26	26	26
No. of inner conductors	2 x 2 x 0.14 mm²	4 x 2 x 0.14 mm²	8 x 2 x 0.14 mm²	12 x 2 x 0.14 mm²
Copper strand per conductor	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm
Conductor insulation	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm
Shielding	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor	100 %	100 %	100 %	100 %
Temperature range	min. -20 °C	min. -20 °C	min. -20 °C	min. -20 °C
Temperature range	max. 70 °C	max. 70 °C	max. 70 °C	max. 70 °C

Electrical Data
Capac. cond./cond. per 1 m	66 pF	66 pF	66 pF	66 pF
Capac. cond./shield. per 1 m	140 pF	140 pF	140 pF	140 pF
Cond. resistance per 1 m	126.5 mΩ	126.5 mΩ	126.5 mΩ	126.5 mΩ
Shield. resistance per 1 m	105.2 mΩ	105.2 mΩ	105.2 mΩ	105.2 mΩ

Technical Data
Order Code	TCE16	TCE20	TCE24	TCE32
PVC jacket, diameter	18 mm	20 mm	22 mm	25 mm
Cond. PVC jacket,diameter	3.0 mm	3.0 mm	3.0 mm	3.0 mm
AWG	26	26	26	26
No. of inner conductors	16 x 2 x 0.14 mm²	20 x 2 x 0.14 mm²	24 x 2 x 0.14 mm²	32 x 2 x 0.14 mm²
Copper strand per conductor	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm
Conductor insulation	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm
Shielding	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor	100 %	100 %	100 %	100 %
Temperature range	min. -20 °C	min. -20 °C	min. -20 °C	min. -20 °C
Temperature range	max. 70 °C	max. 70 °C	max. 70 °C	max. 70 °C

Electrical Data
Capac. cond./cond. per 1 m	66 pF	66 pF	66 pF	66 pF
Capac. cond./shield. per 1 m	140 pF	140 pF	140 pF	140 pF
Cond. resistance per 1 m	126.5 mΩ	126.5 mΩ	126.5 mΩ	126.5 mΩ
Shield. resistance per 1 m	105.2 mΩ	105.2 mΩ	105.2 mΩ	105.2 mΩ

Technical Data
Order Code	TCE40
PVC jacket, diameter	26.7 mm
Cond. PVC jacket,diameter	3.0 mm
AWG	26
No. of inner conductors	40 x 2 x 0.14 mm²
Copper strand per conductor	18 x 0.10 mm
Conductor insulation	PE 1.05 mm
Shielding	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor	100 %
Temperature range	min. -20 °C
Temperature range	max. 70 °C

Electrical Data
Capac. cond./cond. per 1 m	66 pF
Capac. cond./shield. per 1 m	140 pF
Cond. resistance per 1 m	126.5 mΩ
Shield. resistance per 1 m	105.2 mΩ

-20%

SKU: TCE8C Category: Bulk Multicord Cables

Original price was: €7.50.Current price is: €6.00. (inc. VAT)

Specifications

Technical Data
Order Code	TCE2	TCE4	TCE8	TCE12
PVC jacket, diameter	8.5 mm	10 mm	14 mm	15 mm
Cond. PVC jacket,diameter	3.0 mm	3.0 mm	3.0 mm	3.0 mm
AWG	26	26	26	26
No. of inner conductors	2 x 2 x 0.14 mm²	4 x 2 x 0.14 mm²	8 x 2 x 0.14 mm²	12 x 2 x 0.14 mm²
Copper strand per conductor	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm
Conductor insulation	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm
Shielding	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor	100 %	100 %	100 %	100 %
Temperature range	min. -20 °C	min. -20 °C	min. -20 °C	min. -20 °C
Temperature range	max. 70 °C	max. 70 °C	max. 70 °C	max. 70 °C

Electrical Data
Capac. cond./cond. per 1 m	66 pF	66 pF	66 pF	66 pF
Capac. cond./shield. per 1 m	140 pF	140 pF	140 pF	140 pF
Cond. resistance per 1 m	126.5 mΩ	126.5 mΩ	126.5 mΩ	126.5 mΩ
Shield. resistance per 1 m	105.2 mΩ	105.2 mΩ	105.2 mΩ	105.2 mΩ

Technical Data
Order Code	TCE16	TCE20	TCE24	TCE32
PVC jacket, diameter	18 mm	20 mm	22 mm	25 mm
Cond. PVC jacket,diameter	3.0 mm	3.0 mm	3.0 mm	3.0 mm
AWG	26	26	26	26
No. of inner conductors	16 x 2 x 0.14 mm²	20 x 2 x 0.14 mm²	24 x 2 x 0.14 mm²	32 x 2 x 0.14 mm²
Copper strand per conductor	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm	18 x 0.10 mm
Conductor insulation	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm	PE 1.05 mm
Shielding	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor	100 %	100 %	100 %	100 %
Temperature range	min. -20 °C	min. -20 °C	min. -20 °C	min. -20 °C
Temperature range	max. 70 °C	max. 70 °C	max. 70 °C	max. 70 °C

Electrical Data
Capac. cond./cond. per 1 m	66 pF	66 pF	66 pF	66 pF
Capac. cond./shield. per 1 m	140 pF	140 pF	140 pF	140 pF
Cond. resistance per 1 m	126.5 mΩ	126.5 mΩ	126.5 mΩ	126.5 mΩ
Shield. resistance per 1 m	105.2 mΩ	105.2 mΩ	105.2 mΩ	105.2 mΩ

Technical Data
Order Code	TCE40
PVC jacket, diameter	26.7 mm
Cond. PVC jacket,diameter	3.0 mm
AWG	26
No. of inner conductors	40 x 2 x 0.14 mm²
Copper strand per conductor	18 x 0.10 mm
Conductor insulation	PE 1.05 mm
Shielding	AL/PT-foil + drain wire 7 x 0.15 mm tin plated copper
Shielding factor	100 %
Temperature range	min. -20 °C
Temperature range	max. 70 °C

Electrical Data
Capac. cond./cond. per 1 m	66 pF
Capac. cond./shield. per 1 m	140 pF
Cond. resistance per 1 m	126.5 mΩ
Shield. resistance per 1 m	105.2 mΩ
