SOLARO FR1-FRAME
Original price was: €3,150.00.€2,835.00Current price is: €2,835.00. (inc. VAT)
Xilica Full Rack 19 1RU modular chassis with 16 user-configured rear card slots.
Out of stock

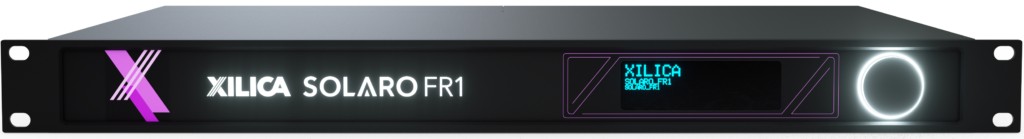

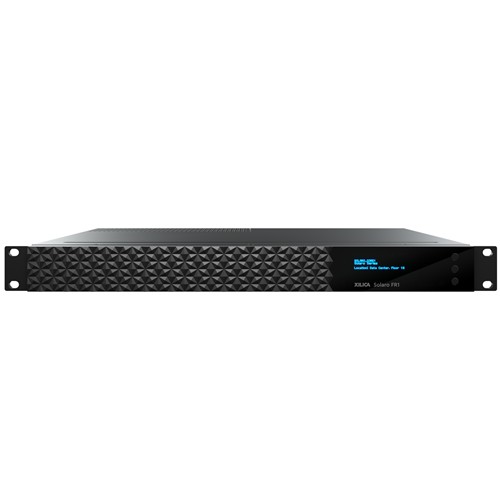

Full rack 19” 1RU processor mainframe with sixteen user-configured card slots (blank card slots included). Uses the same I/O PC-Plug-in Cards as the QR1 & XIO (see below). Selectable 48 & 96kHz sampling rates. Integrated license-activated AEC. Front panel OLED display with jog wheel. Rear panel includes an Ethernet module with RJ45 connector and internal power supply connection.
-
Card Slots
16 user-configurable
-
Display(s)
Single OLED display at front of device
-
Controls, Service & Indicators
Up/Select/Down buttons. Recessed IP reset. Factory service micro-USB.
-
Weight
11lbs; 5kg
-
Dimensions
Height: 1.75″ / 44mm
Width: 19″ / 483mm
Depth: 12″ / 305mm -
Mounting
Standard 19″ rack; occupies 1U
-
THD+N (22Hz to 22kHz)
0.002% (1kHz @ +4dBu)
-
EIN
<125dBu, unweighted (20Hz to 20kHz)
-
Dynamic Range
110dB, unweighted
-
Propagation Delay
4ms
-
Crosstalk, input to input, 1kHz
<110dB
-
Sampling Rate
48kHz
-
A/D-D/A Converters
32-bit
-
Acoustic Echo Cancellation
Requires HearClear™ license; 250ms latency at eight channels, 100ms at 16 channels
-
BTU/Heat Load
205 BTU/hr
-
Processor Type
40-bit floating point
-
Phantom Power
+48VDC (with XC-SML)
-
Power Supply
90-240 VAC (50-60Hz) via internal power supply with IEC socket
-
Power Consumption
<60W
-
Ambient Operating Temperature
32-104°F (0–40°C)
-
Humidity
0–98%, non-condensing
-
Altitude
0-6,600 feet (0–2000 Meters) MSL
-
Network Connections
Without XC-CTODN: 1x RJ45 (≥Cat 5e) for control.
With XC-CTODN: 3x RJ45 (≥Cat 5e) including dual dedicated 1000Mbps Dante™ connections and separate Ethernet port for control -
USB (with XC-SUB)
Bit depth: 16-bit
Number of channels: 2×2, send and receive
Driver sample rate: 48kHz
Card sample rate: follows DSP settings
Connector: USB B, female -
Dante™
Requires XC-CTODN; 64×64 bi-directional (primary, secondary) with dual NIC; AES67
