SM890i-WX-BK

Original price was: €850.00.Current price is: €700.00. (inc. VAT)

SOUNDTUBE SPEAKER 8INC 150W RMS 8OHMS AND 100V

In stock

SKU: SM890IBK Categories: ,
Description

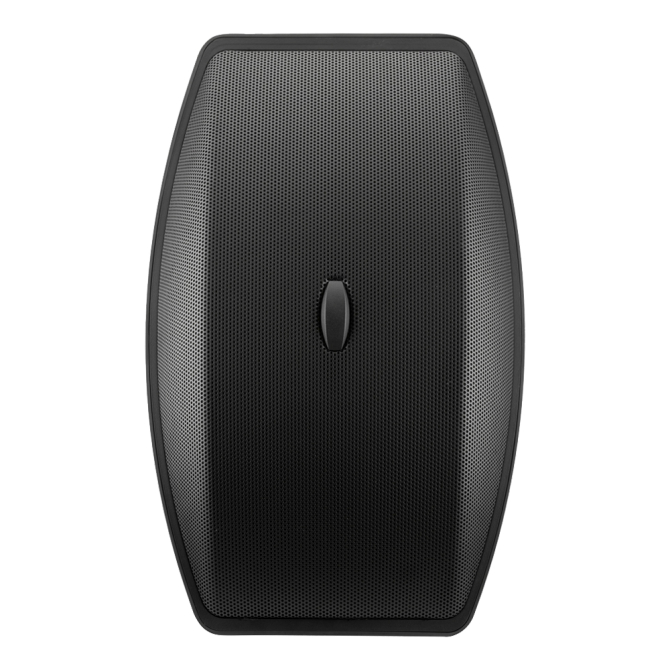

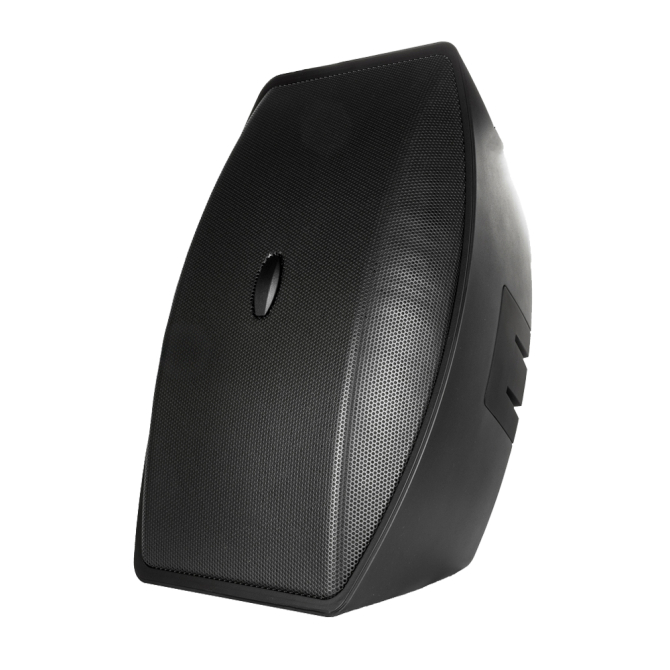

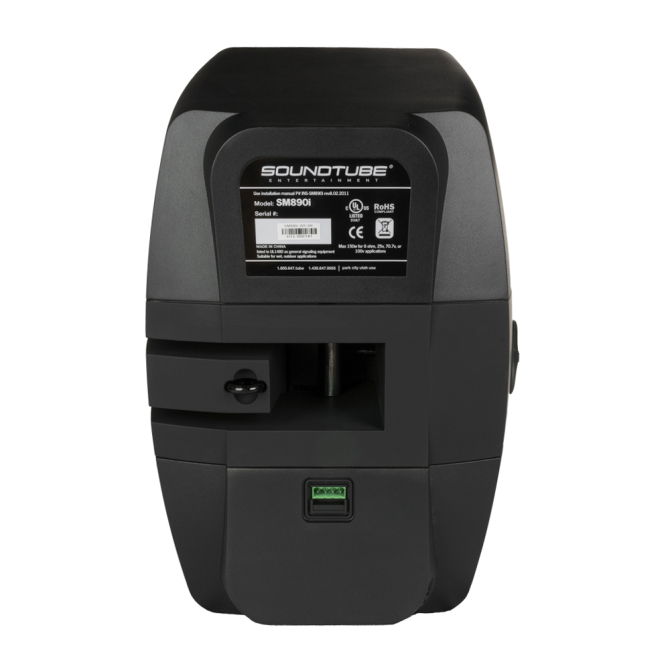

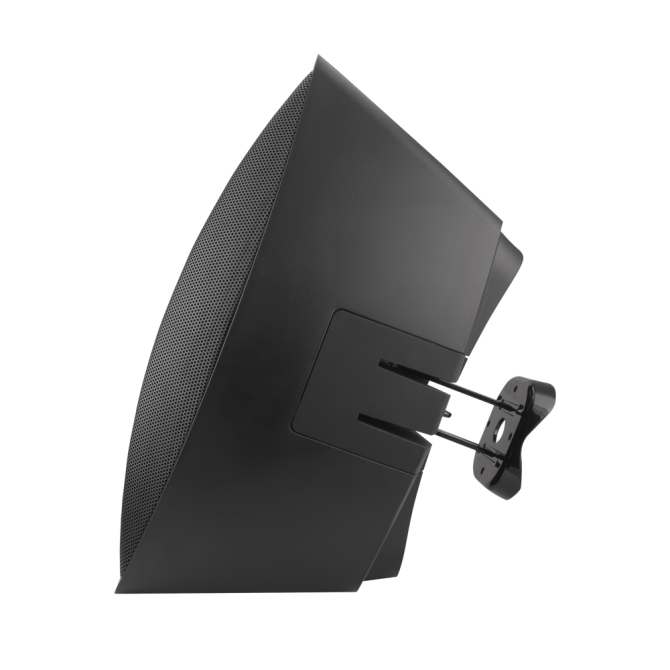

SoundTube SM890i-WX Outdoor Surface Mount Speaker in Black

SoundTube®’s WX Weather Guard technology utilizes a dual layer hydrophobic material inside the speaker grille to keep water from the drivers and internal electronics in even the most extreme weather conditions. The speaker also has as a powder-coated steel grille with tool-free locking system. Patented BroadBeamHP® waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. The SM890I-WX has one 8.0 inch treated fiber driver with an offset 1.42 inch compression horn configuration. The speaker features a proprietary tool-free rotatable 110 x 85 bayonet-mounted horn for tailored dispersion and throw. As well as 150-watt low-insertion loss transformer and maximum output for short to medium throw, PA and sound reinforcement and an easy-access six-position tap switch for 25-, 70.7-, 100-volt applications with transformer bypass position. Surface-Mount Bracket, Safety Cable, Euroblock Connector, Terminal Weather Boot, and Paint Mask are included. IP-Rating: IP44.

Specifications
Color Black
UPC 644216204007
Manufacturer SoundTube
Manufacturer’s Category SMi Surface Mount
Height 18.78 in / 477 mm
Width/Diameter 11.65 in / 295.9 mm
Shipping Weight 24.5 lbs / 11.11 kg
Carton Height 16 in / 406.4 mm
Carton Length 21.5 in / 546.1 mm
Carton Width 14.5 in / 368.3 mm
Certifications CCC, CE, IP44, RoHS, UL1480
Enclosure Properties ABS Glass Fiber Reinforced, Injection Molded, Ported
Enclosure Volume 1008 cu in / 16518.16 cu cm
Included Accessories Euroblock, Mounting Hardware, Paint Mask, Safety Cable, Terminal Weather Boot
Optional Accessories Black Grille (GRL-SM890-WX-BK)|10′ Safety Cable (AC-SC-10)|Black Mounting Bracket (AC-SM82-WM-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-S-BK)|Port Plug (AC-SM8-PP)
Source Inputs 4 Pin 5.08mm Euroblock
IP Rating IP44
TAA Compliant (Trade America) No
BAA Compliant (Made in USA) No
Crossover Frequency 2.5 kHz
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) 5.4 and 7.2
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) 6.7 dB and 9.4 dB
Frequency Response (± 10 dB) 80 Hz – 22 kHz
Frequency Response (± 3 dB) 105 Hz – 22 kHz
Grille Properties Powder-Coated, Weatherproof, Stainless Steel
Low Frequency Voice Coil 1.34 in / 34 mm
Low Pass Crossover 12 dB per octave 2nd order
Max. Continuous Power RMS 150 W
Max. Program Power 300 W
Minimum Impedance (Ω Ohms) 8 Ω
Mounting Depth 15.37 in / 390.4 mm
Network Type: High Pass 12 dB per octave 2nd order
Nominal Impedance (Ω Ohms) 8 Ω
Tweeter Driver 1.38″ Titanium Compression Driver w/ Waveguide
Woofer Driver 8″ High-Efficiency Woofer
Sensitivity dB @ 1W/1M 92 dB
Sensitivity dB @ 2.83V/1M 92 dB
Tap Selector Rotary Switch
Transformer Options 25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V) 19W/150W/150W
