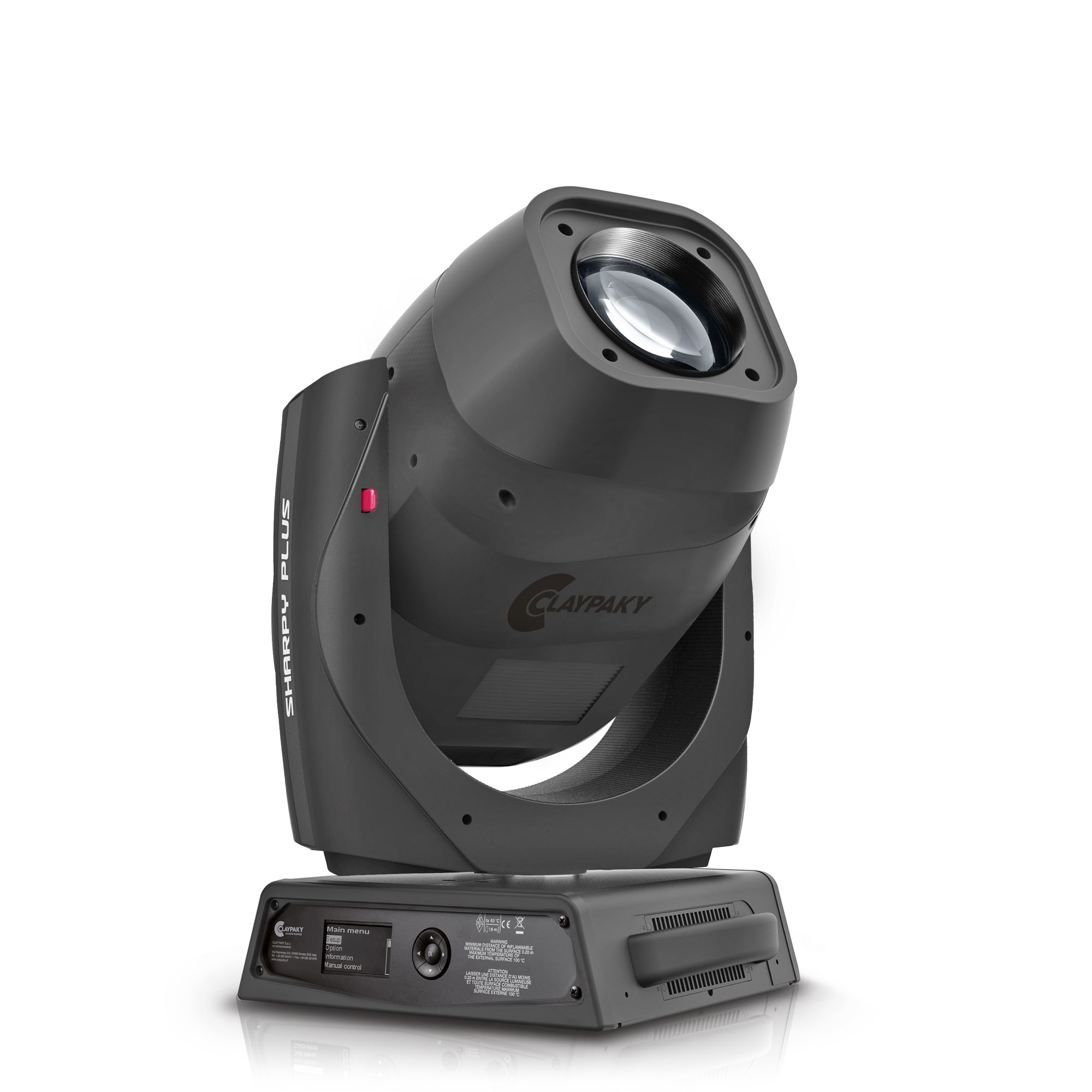

Energy-Saving CLP Sharpy Plus 330 W Beam & Spotlight Hybrid Light

LIGHT SOURCE TYPE

• 330W X8 HRI Sirius Osram Arc Lamp
• Colour Temperature: 8000K ±300
• Lamp life expectancy: 1500 hrs
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• Zoom range: 3°- 36°
• 12000 Lumen Output
• Front lens diameter: 135mm
• High efficiency optical system

NOISE LEVEL

• Auto fan mode:49.0 dBA

CONTROL and CONNECTIONS

• Personalities: Single mode with 31 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN.
• DMX and RDM connectors: Locking 5 pin XLR IN/OUT
• Ethernet port: RJ45 IN
• Power connector: Power Con True1 IN
• Built In Web Server

DYNAMIC EFFECTS

• Colours:
  • Linear CMY colour mixing
  • 5 colors on 3 wheels (2 CTO filters)
• Gobos:
  • 1 Static gobo wheel with 18 gobos, 6 beam reducers (down to 0.5°)
  • 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
  • Ext diam.15.9mm
  • Image diam. 12mm
  • Thickness 1.1mm
• Frost:
  • Linear soft edge frost filter
• Rotating Effects
  • Aluminum animation wheel with continuous rotation in both direction at variable speed
  • 4 Facets prism with rotation in both direction at variable speed
  • 8 Facets prism with rotation in both direction at variable speed
• Movement:
  • Tilt: 270° – 16bit
  • Pan: 540° – 16bit
  • Accuracy: Resolution ± 0,28° (Range 0,56°)
  • Automatic repositioning
  • Fast/Standard speed selectable by Function channel
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
• Beam:
  • Motorized Zoom and Focus
• Dimmer/Shutter:
  • High resolution Dimmer – 16 bit
  • High speed Shutter and Strobe

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

HOUSING

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

WORKING POSITION

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

ELECTRICAL

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 540VA

THERMAL SPECIFICATION

• Max ambient temperature 40°C (104°F)
• Min ambient temperature -10°C (14°F).
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 1845 BTU/hr ±10% / 1944 kJ/hr ±10%

SAFETY SPECS

• Fuse T6.3A – 250V
• Minimum distance of illuminated objects 8 meters (26’ 3”)
• Minimum distance from flammable materials 0.2 meters (8”)
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

COMPLIANCE

• CE marking: In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
• UKCA: conforms to UK legislation
• cETLus Listed / cMETus Listed

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (2 positions)

WEIGHT – SIZE

• 23.0 Kg (50.7 lbs)
• 307x375mm (base dimension) – 635mm with vertical head (h)
• Distance between two fixtures 500mm

ACCESSORIES

• Omega clamps: 2×183102/805 (included)
• Power cord: CAB02B/802 (included)
• Foam shell:  F21312/001 (optional)
• Flight case: CF1000F (optional)
• Safety Chain: 105041/003 (optional)
• Frost assembly 5°: 371081/802 (optional)
• Linear Prism assembly: 371020/803 (optional)
