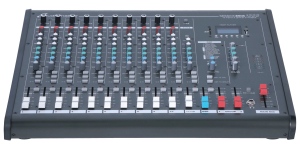

SESSIONMIX1622
Original price was: €750.00.€635.00Current price is: €635.00. (inc. VAT)
ANALOGUE CONSOLE 12 channel mic input 2 channel stereo input
Out of stock
Using the foundation of our popular CLUBXS16+, enhancing the design style and adding a stereo sub-group. The SESSIONMIX series of 3 models, give you up to 14 mic channels in a compact space saving design.
With the features available, such as USB recording, or the Bluetooth playback ability, there are many applications whether a small to medium size band or an installation where the channel count is important.
60mm faders on all channels, balanced XLR outputs, PFL/listen on every channel and professional mic/line inputs make the new SESSIONMIX series worth having a closer look at.
12 input, 10 mic + 1 stereo, 2 group, with media / bluetooth
USB/SD CARD/BLUETOOTH media module for playback/ recording
DSP EFFECTS 16 quality reverb, delay and stereo effects
3 BAND EQ on mic channel for superior tone adjustments
2 BAND EQ on stereo channels to add warmth to your instruments
2 x AUX & 1x DSP OUTPUT for a monitor mixes and external fx
| Inputs | 16 |
| Mic Input channels | 14 |
| Stereo Input channels | 1 |
| Sub Group / Output | 2 |
| Gain | MIN ~ MAX |
| Mic | 6dB ~ +50dB |
| Line | +10dB ~ -34dB |
| EIN | -100dB |
| Frequency response | |
| Mic Channel | 10Hz~20kHz+1/-3 |
| THD Mic Channel | ≤0.03% |
| Signal to noise ratio | 80dB |
| Output Levels | MAX +26(BAL) MAX +20(UNBAL) |
| Channel EQ | |
| Hi | 12kHz |
| Mid | 2.5kHz |
| Lo | 45Hz |
| Lo Cut | 80Hz |
| Compression | Yes – single control |
| MP3/USB/SD Audio playback | YES |
| USB/SD Audio recording | YES |
| DSP Effects | YES – 16 effects |
| Power requirements | External 12V DC adapter |
| Dimension (W x H x D) | 602.6 x 152 x 467.5mm |
| Net Weight | 8.5kg |
