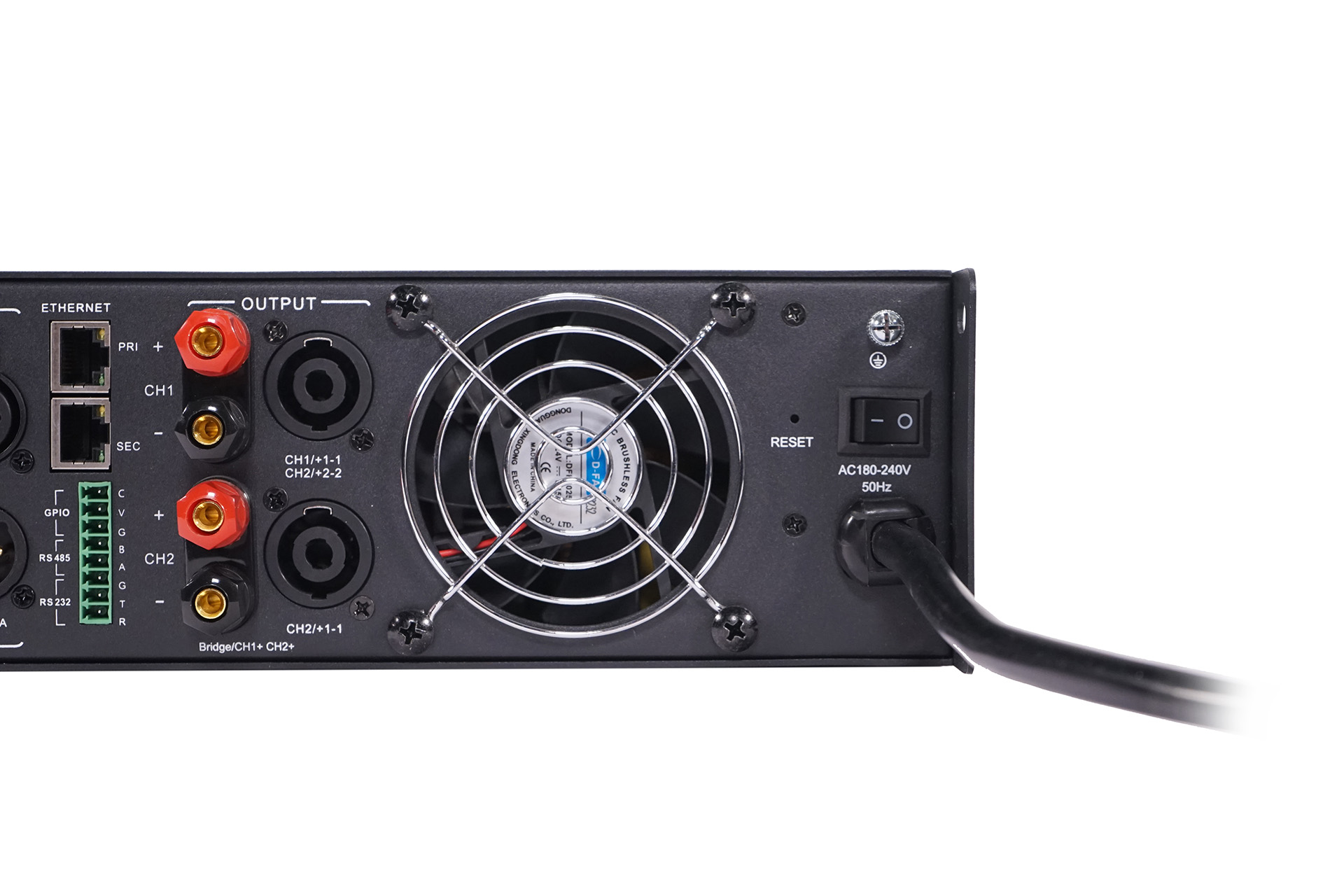

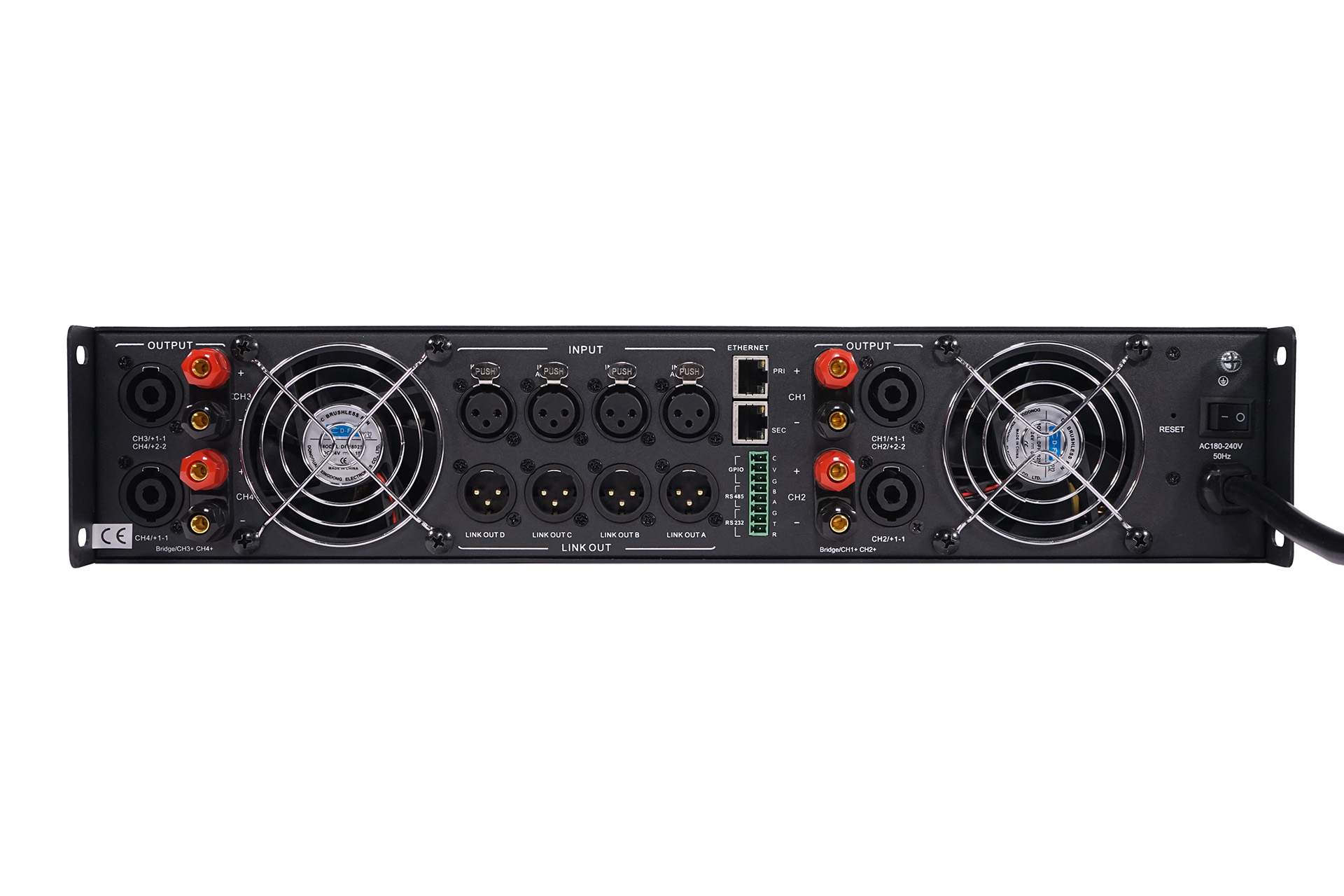

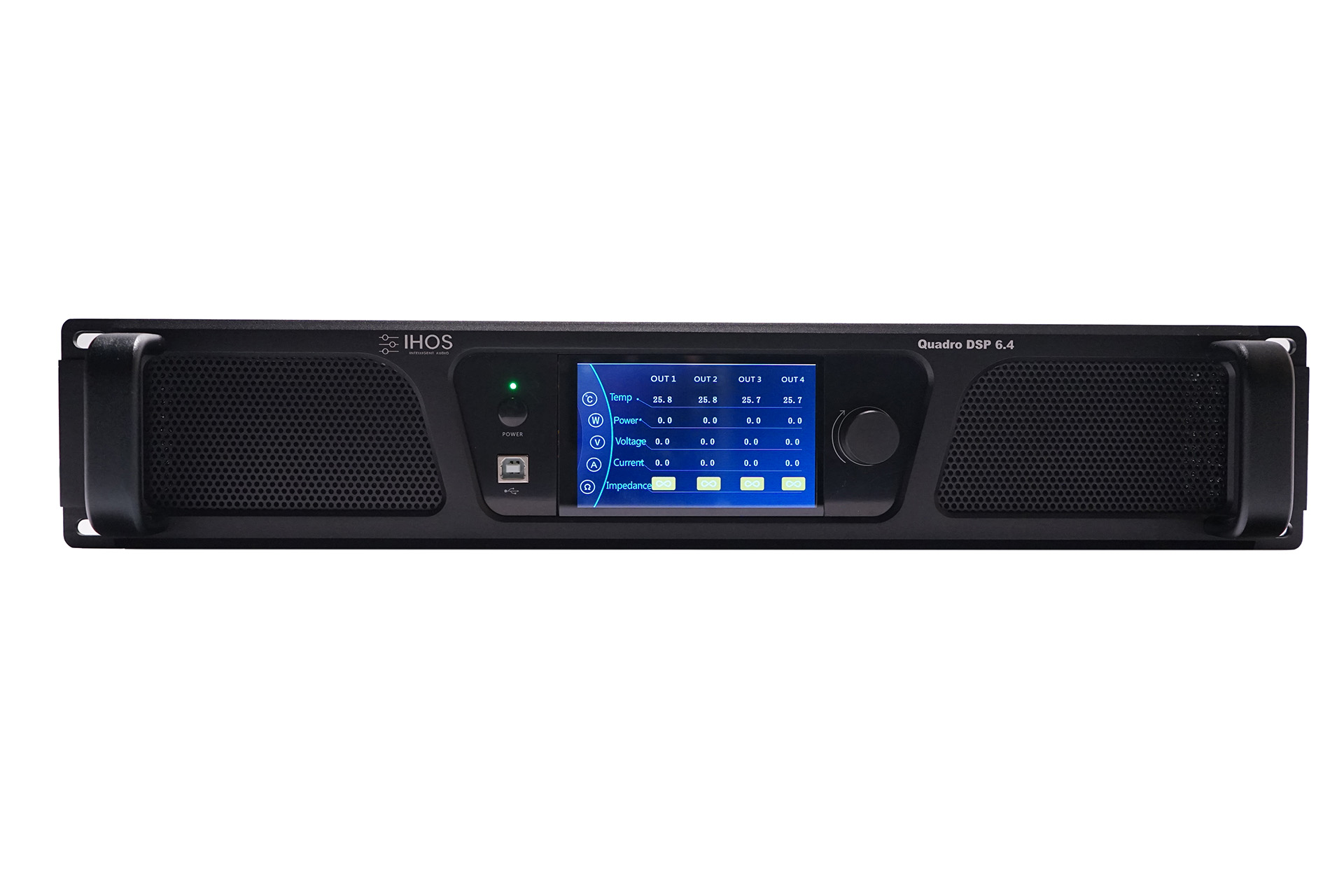

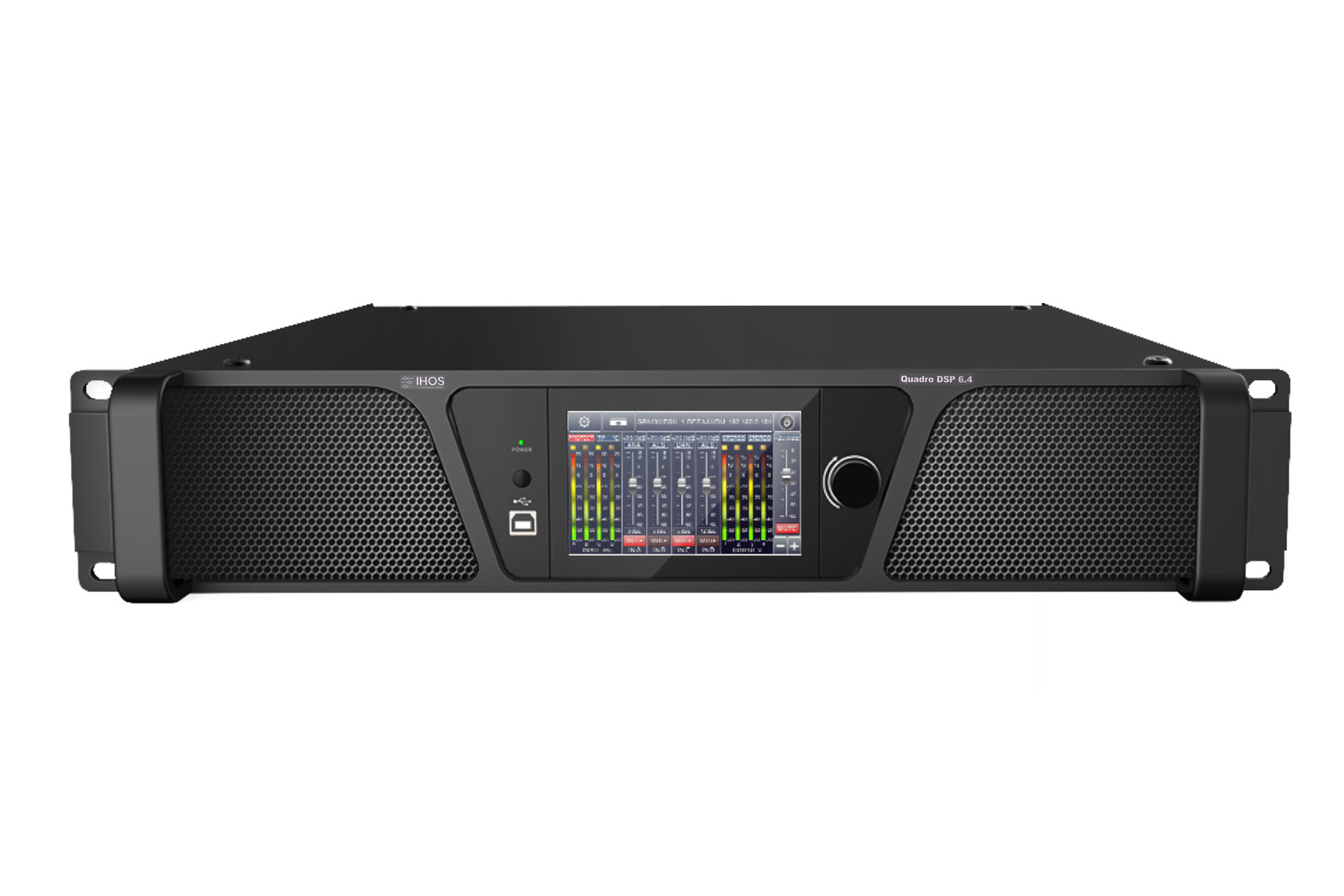

High-Power DSP Digital Amplifier with Touch Display & DSP Features
Original price was: €2,395.00.€2,150.00Current price is: €2,150.00. (inc. VAT)
DSP digital power amplifier, 4x1500W@8Ω / 4x2000W@4Ω ,Bridge 2x3200W@8Ω, Build-in DSP processor, D class, compressor, limiter, noise gate, PEQ, matrix mixer, delay, FIR function, support 4×2048 Taps, 4.3 IPS colorful capacitive touch display, Ethernet, USB, RS485, RS232, Support constant pressure and resistance: 100V, 70V, 8Ω, 4Ω.
Out of stock
| Weight | 16.15 kg |
|---|---|
| Dimensions | 570 × 550 × 165 cm |
Power: 4*1500W@8Ω, 4*2000W@4Ω.
Bridged Power: 2*3200W@8Ω
Input Audio Source: Analog, Sine wave, Pink noise, White noise, AES
Input Volume: Mute, Phase, Level detector
Input EQ: 31 bands EQ
Input Noise Gate: Attack time 1～2895ms, Release time 1～2895ms, Threshold level -120dBu～0dBu.
DSP Matrix: 4*4 matrix zone
Output EQ: 10 bands EQ
Frequency Divider: Butterworth, Bessel, Linkwitz-Riley
Delay Input delay: 4×80ms Output delay: 4×20ms
Output Compressor: Soft knee, Threshold level, Attack time, Compression ratio, Releasing time
Output Limiter: Voltage 0.01V～89.50V, Power 0.01W～1000W, Release time 1~2895ms
Output Volume: Mute, Phase, Level detector
DSP Preset: 80 packages
Control Mode: Ethernet, USB, RS485, RS232
Network Model: TCP/IP、1000base-T/100base-TX、RJ45
Channels: 4
Minimum output impedance: Each channel 4Ω, bridged mode 8Ω
Input Interface: Balanced input 4×XLR
Output Interface: Spoken*4, XLR×4
Cooling System: Dual fans intelligent control
Gain: 6dB sensitivity: 30dB (×29.5); 0dB sensitivity: 36dB (×31.1)
Max input level: 20dB sensitivity: 20dBu (7.75V)
SNR: 12dB sensitivity: 94dB; 6dB sensitivity: 94dB; 0dB sensitivity: 94dB
Frequency Response: 20Hz～20kHz (±0.5dB)@1W, 8Ω
THD+N: <0.1%@1W to full power
Sampling: 48K/24bit
Channel Isolation: <-70dB
Operating Mode: Matrix, Bridge
Remotely Control: Remote boot, standby, DSP monitor
Amplifier Monitor: Temperature, Power, Voltage, Current
Constant Pressure and Resistance: 100V, 70V, 8Ω, 4Ω
Display: 4.3”IPS colorful capacitive touch display.
Protection: Audio limiter, high temperature, DC, high frequency, short circuit, back electromotive force, peak current limiter, surge current limiter, start delay, power breaker protection, power supply overvoltage/undervoltage protection.
PC Software: Mconsole for controlling media matrix processor, audio processor, DSP power amplifier, DSP active amplifier module.
Net Weight: 12.35kg.
Packaged Weight: 16.15kg.
Products Dimensions: 483mm x 460mm x 89mm, 2U
Packaged Dimensions: 570mm x 550mm x 165mm.
Power supply input: 180 to 264 Volt AC, 50/60 Hz.
