Description

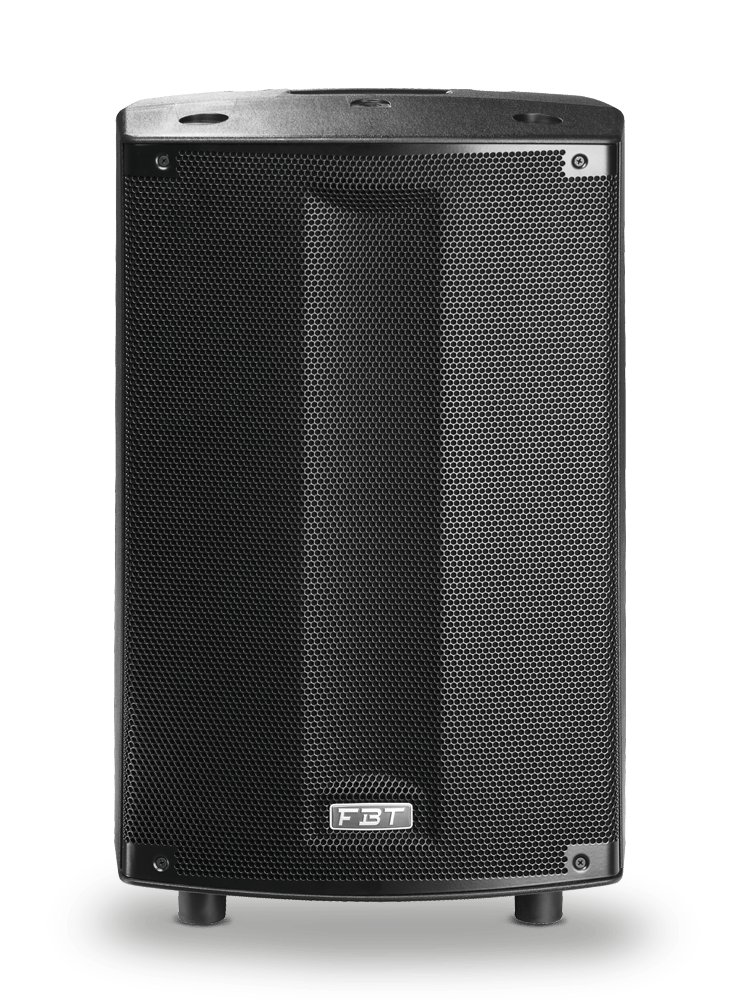

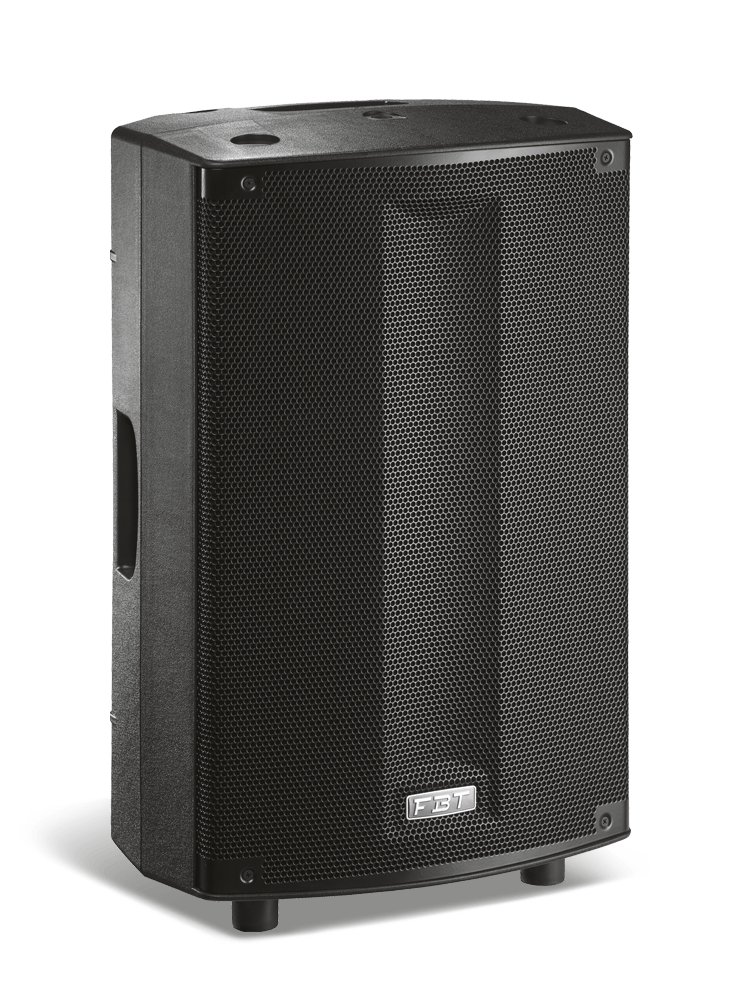

ProMaxX 114A2-way Bass reflex Active speaker – 14″ + 1,4″ – 700Wrms+200WrmsProMaxX 114a is an active speaker equipped with a 14′ custom FBT speakers complete with a 1.4″ 2.5″VC B&CÂ’s renowned compression driver Biamped: 700W RMS LF, 200W RMS HF.90°H x 60°V constant directivity horn 135.5dB SPL. Specially developed polypropylene cabinet and stylish full grille design.·Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL
SPECIFICATIONS
·Configuration: 2 Way
·Frequency response: 45Hz – 20kHz -6dB
·Low frequency woofer: 14″
·High frequency driver: 1.4″
·Maximum SPL cont/peak: 127/135.5dB SPL
·Dispersion: 90 x 60
·Input impedance: 22kOhm
·Input connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
·Net Dimension (WxHxD): 402 x 644 x 345mm
·Net Weight: 17.5kg
·Transport Dimension (WxHxD): 800 x 642 x 800mm
·Transport Weight: 54.5kg
·AC Power requirements: 640VA
·Built-in amplifier LF/HF: 900w (700w LF + 200w HF)
·Built-in amplifier peak LF/HF: 1800w (1400w LF + 400w HF)
·Power cord: 5m IEC
·Built in amplifier: 900w (700w LF + 200w HF)
·Built in amplifier peak: 1800w (1400w LF + 400w HF)
·Maximum SPL continuous/peak: 127/135.5dB SPL
FEATURES
·2-way, bi-amplified, bass reflex design cabinet
·Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
·Digital signal processor with graphic display
·Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push

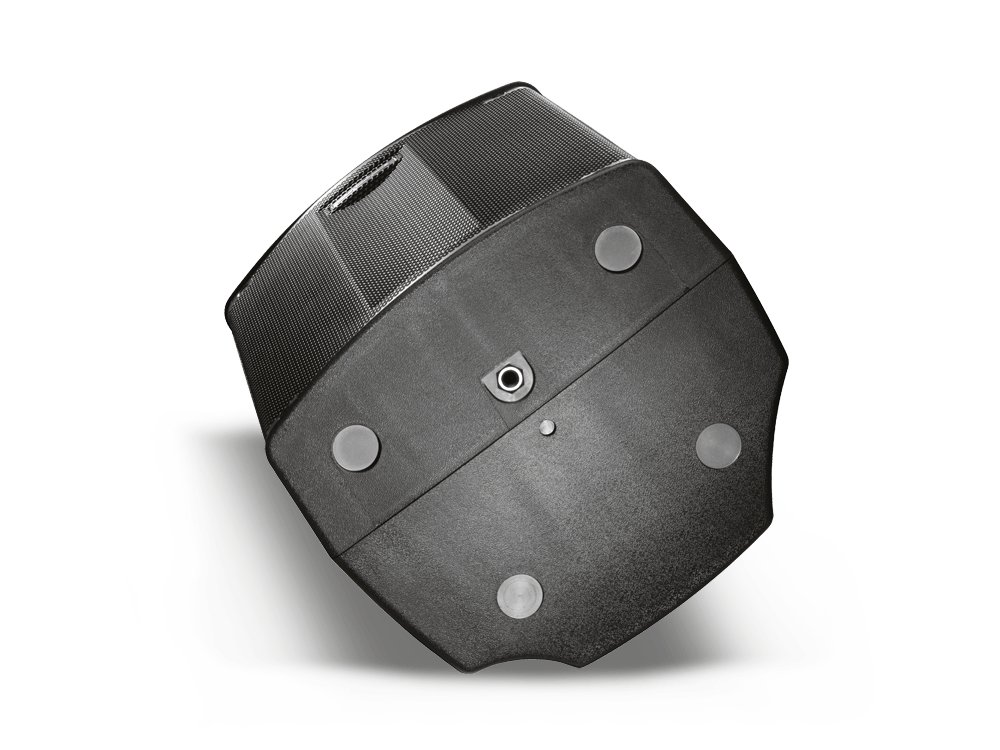

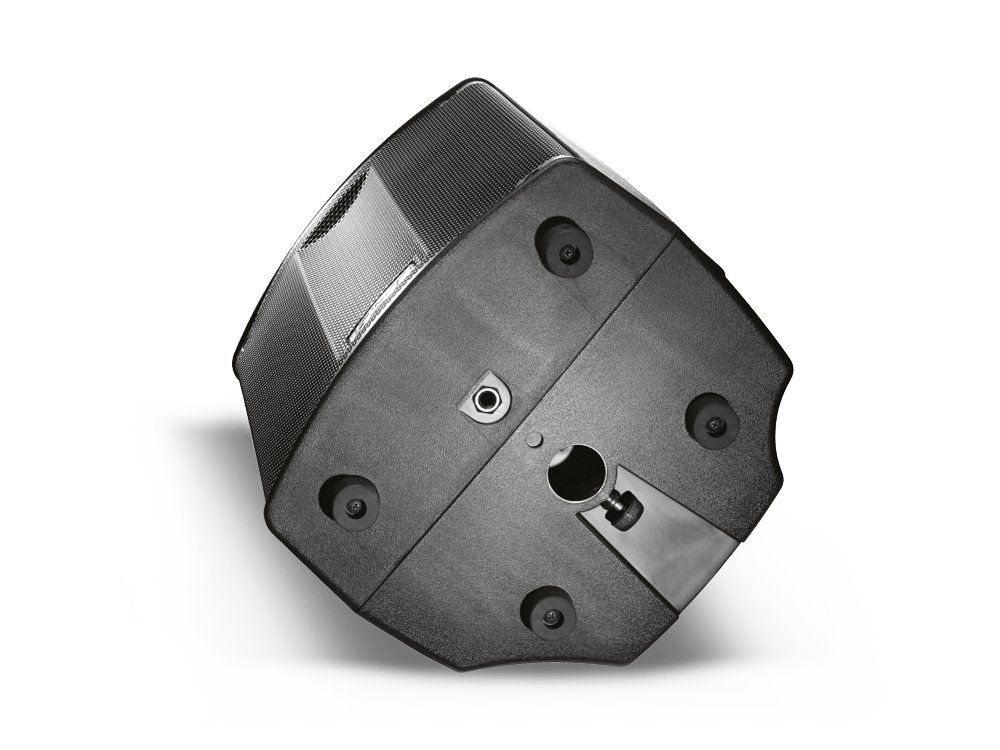

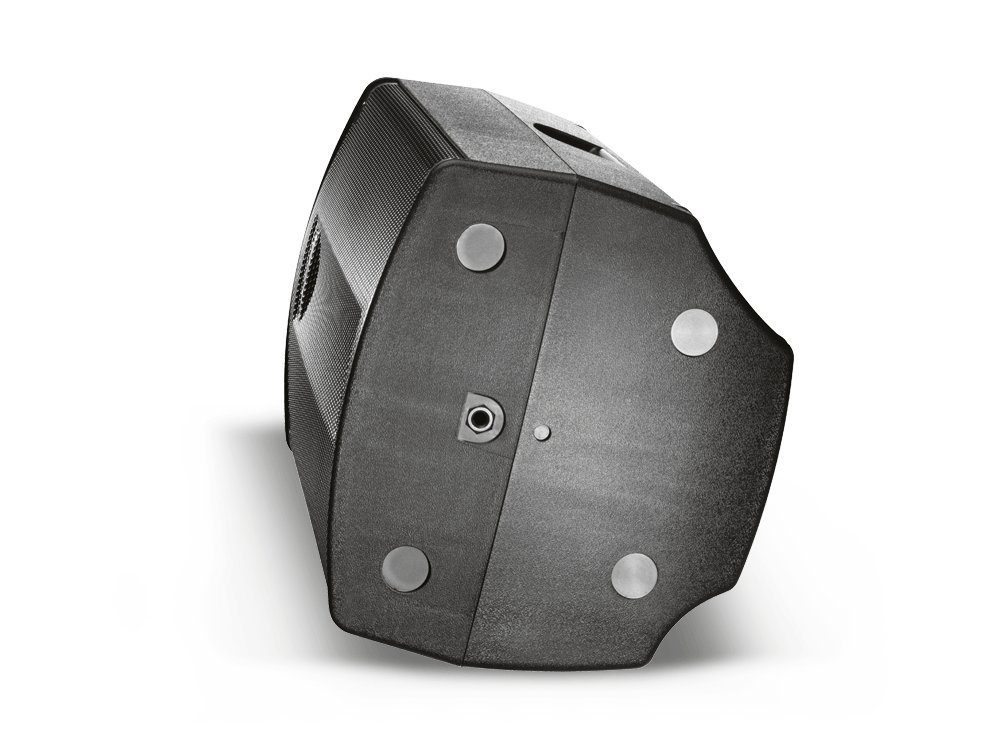

·2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
·90°H x 60°V constant directivity horn
·Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
·3550mm (14″) LF woofer with 64mm (2.5″) voice coil, custom made for FBT
·35mm (1.4″) throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
·Frequency response from 45Hz to 20KHz
·Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
·Extremely light only 17.4kg
