NEO 8 LINE ( SOLD PER PC )
€145.00 (inc. VAT)
Passive loudspeaker 70 W @ 8 Ohm, 32 W @ L100V. 8” Woofer + 1” Tweeter

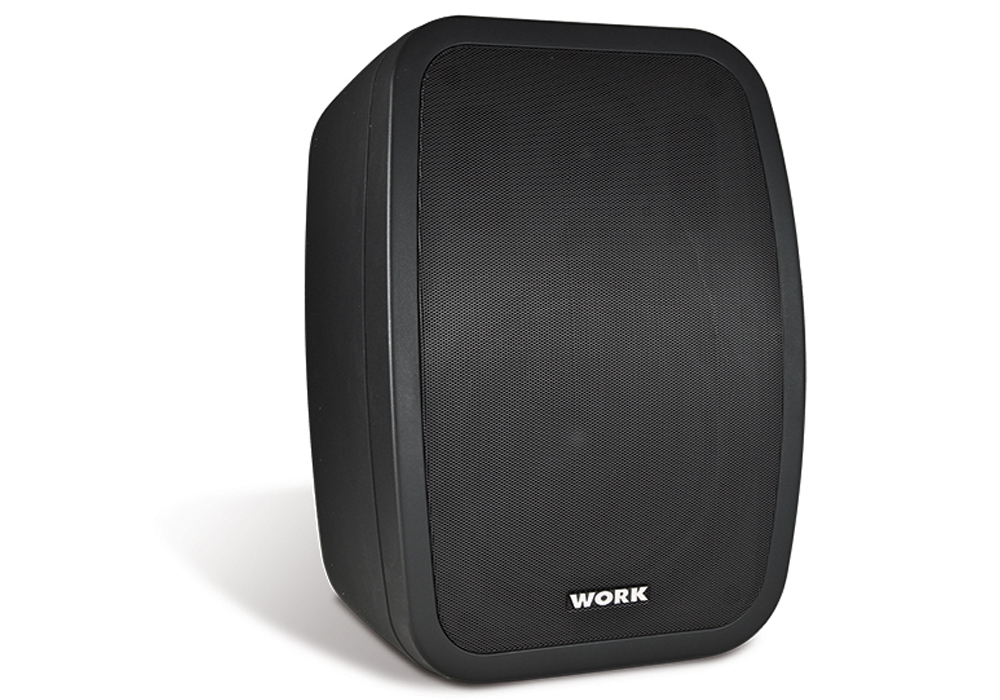

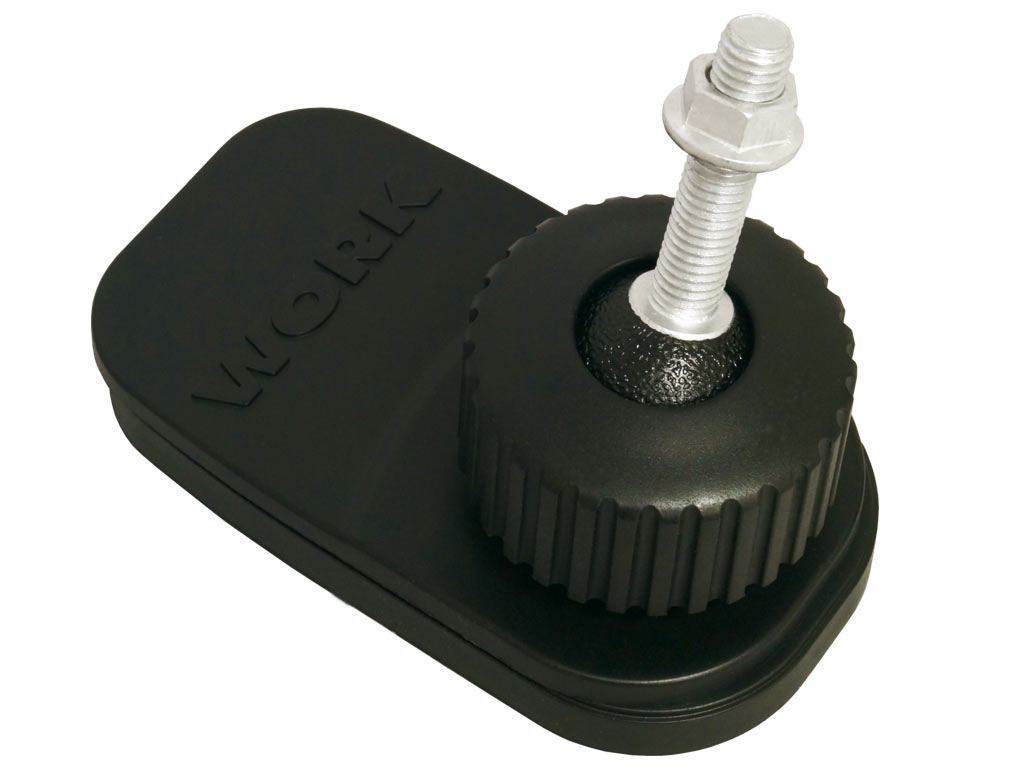

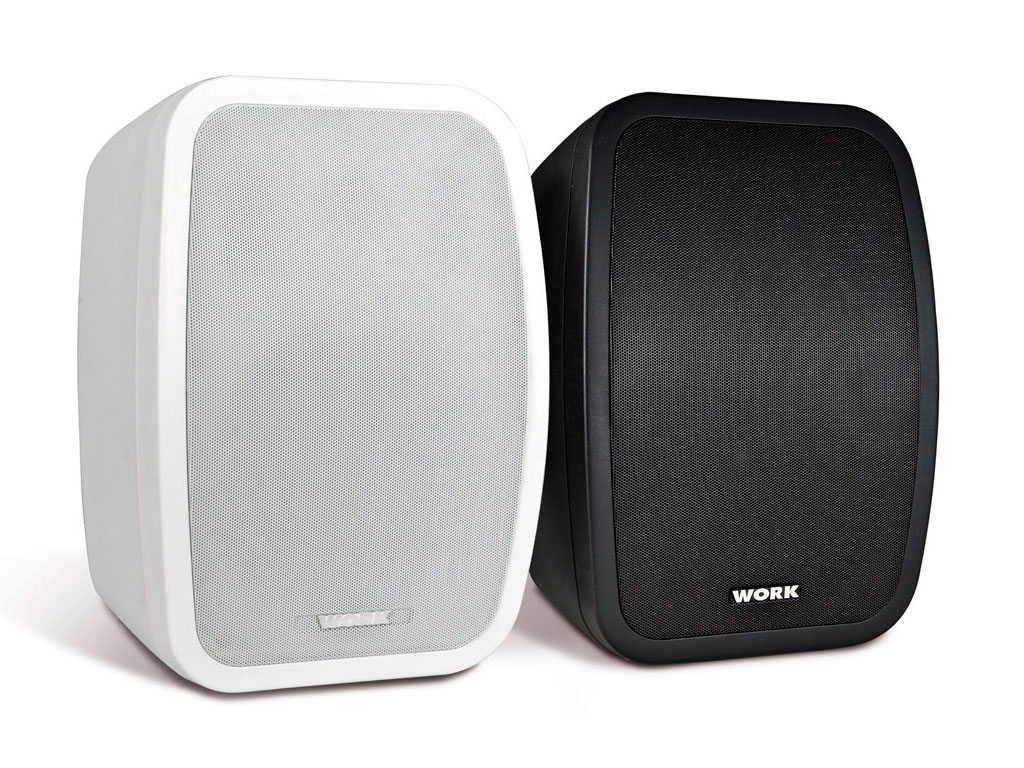

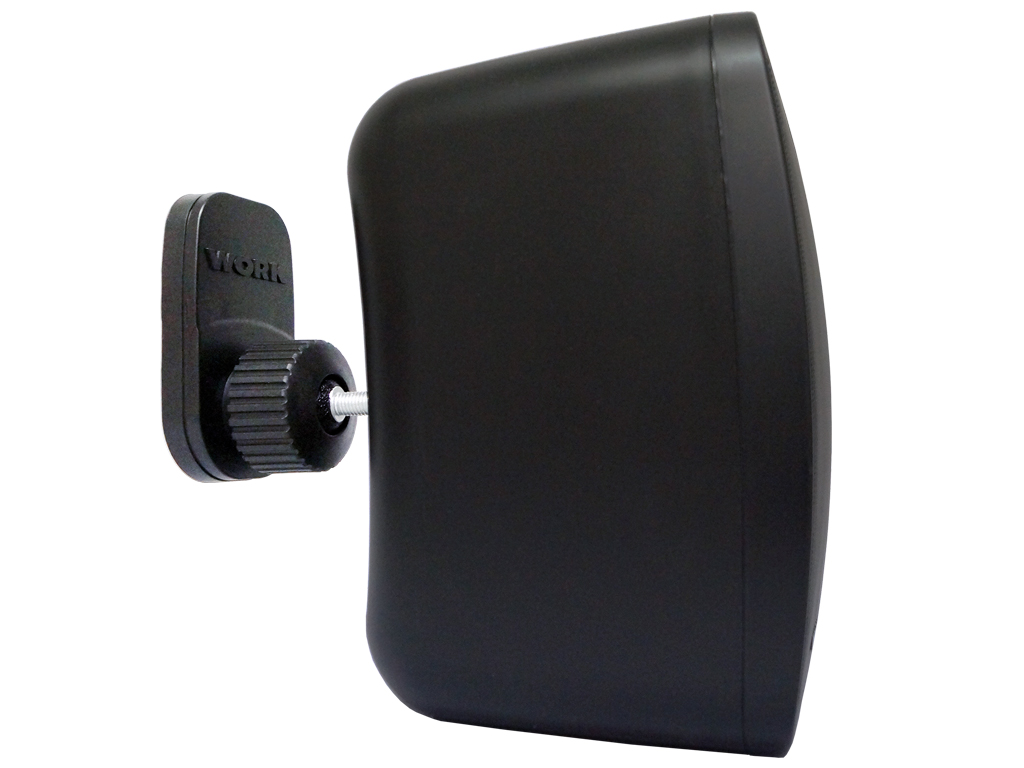

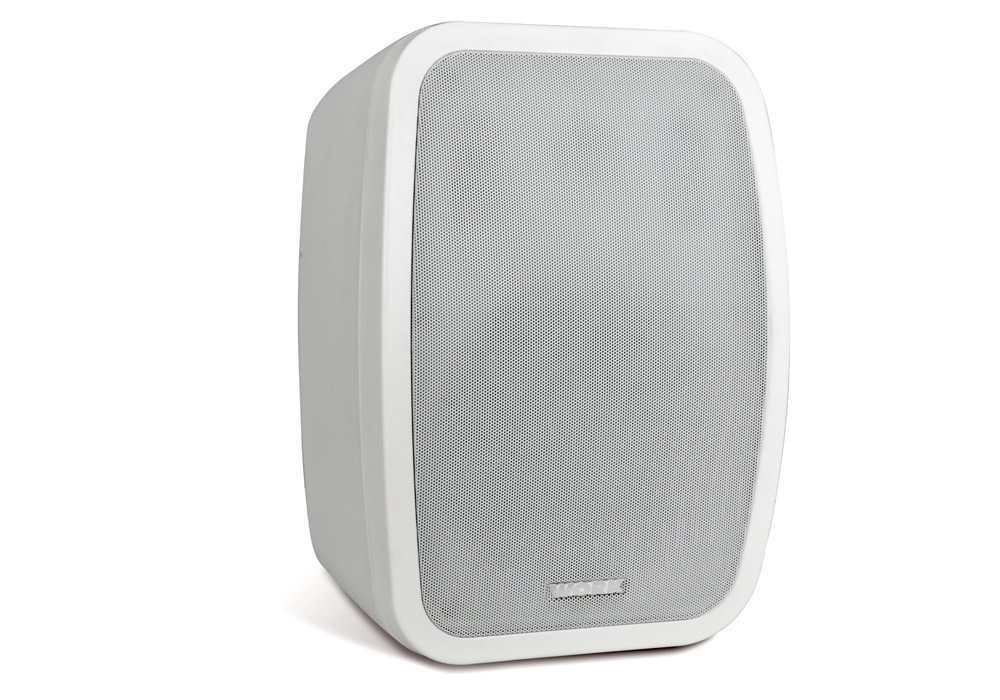

The NEO 8 is a 2-way speaker made of ABS plastic with a white or black aluminum grille. It consists of an 8″ woofer and a 1″ tweeter. Its key feature is its compatibility with both 70/100V and low-impedance installations. When connected to a low-impedance system, the audio signal bypasses the transformer to maintain high sound quality. The NEO 8 is also very easy and quick to install, thanks to the new bracket designed specifically for this model, which also allows for quick adjustment of the speaker’s orientation on both axes.
| colour |
Black ,White |
|---|
The NEO 8 is a 2-way speaker made of ABS plastic with a white or black aluminum grille. It consists of an 8″ woofer and a 1″ tweeter. Its key feature is its compatibility with both 70/100V and low-impedance installations. When connected to a low-impedance system, the audio signal bypasses the transformer to maintain high sound quality. The NEO 8 is also very easy and quick to install, thanks to the new bracket designed specifically for this model, which also allows for quick adjustment of the speaker’s orientation on both axes.
| Guy | 2-way. Passive |
| Low impedance power | 35W RMS/70W Program/ 70W @ 8 Ohm |
| Power 100V | 32W @ 312 Ohm, 16W @ 625 Ohm, 8W @ 1k25 Ohm, 4W @ 2k5 Ohm |
| Power 70V | 16W @ 625 Ohm, 8W @ 1k25 Ohm, 4W @ 2k5 Ohm, 2W @ 5KOhm |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 8″ Woofer |
| HF Transducer | Tweeter 1″ |
| Sensitivity (1W @ 1m) | 93 dB |
| Max SPL | 111 dB |
| Coverage Angle (H x V) | 120º x 90º |
| Frequency Range | 75 Hz – 20 kHz |
| Connectors | Euroblock |
| Enclosure Material | ABS |
| Rack | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Color | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP54 |
