NEO 4 LINE ( SOLD PER PC )

78.00 (inc. VAT)

Passive loudspeaker 30 W @ 8 Ohm, 16/8/4/2 W @ L100V. 4” Woofer + 0.5” Tweeter

SKU: NEO4LINE Category:
Description

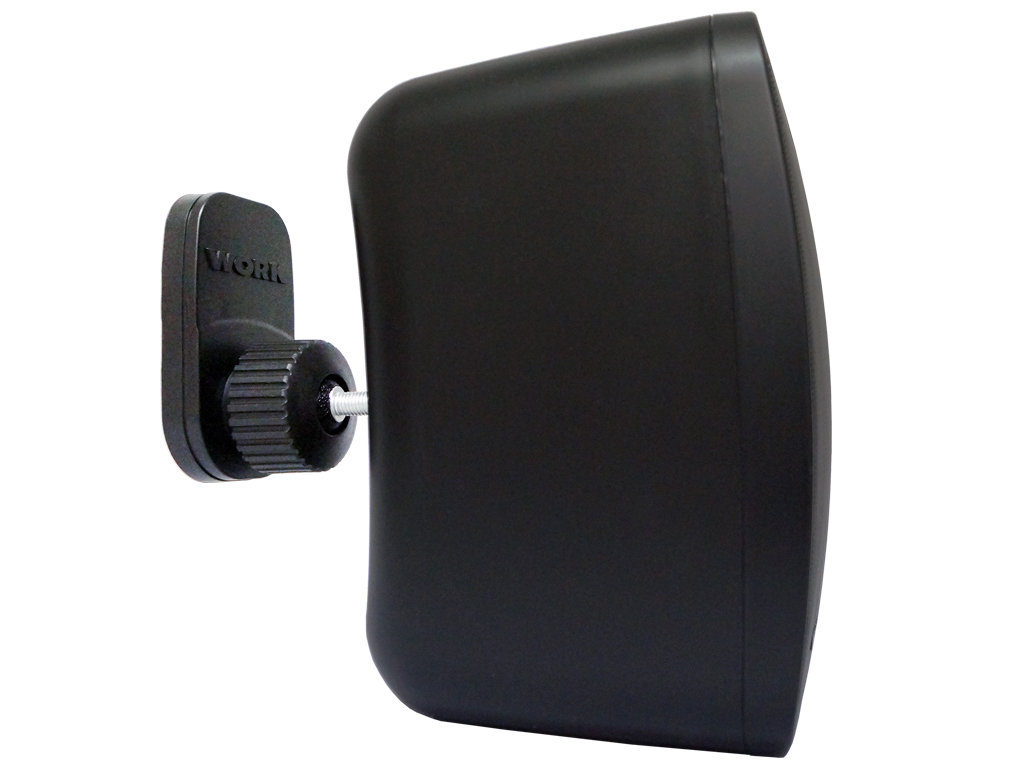

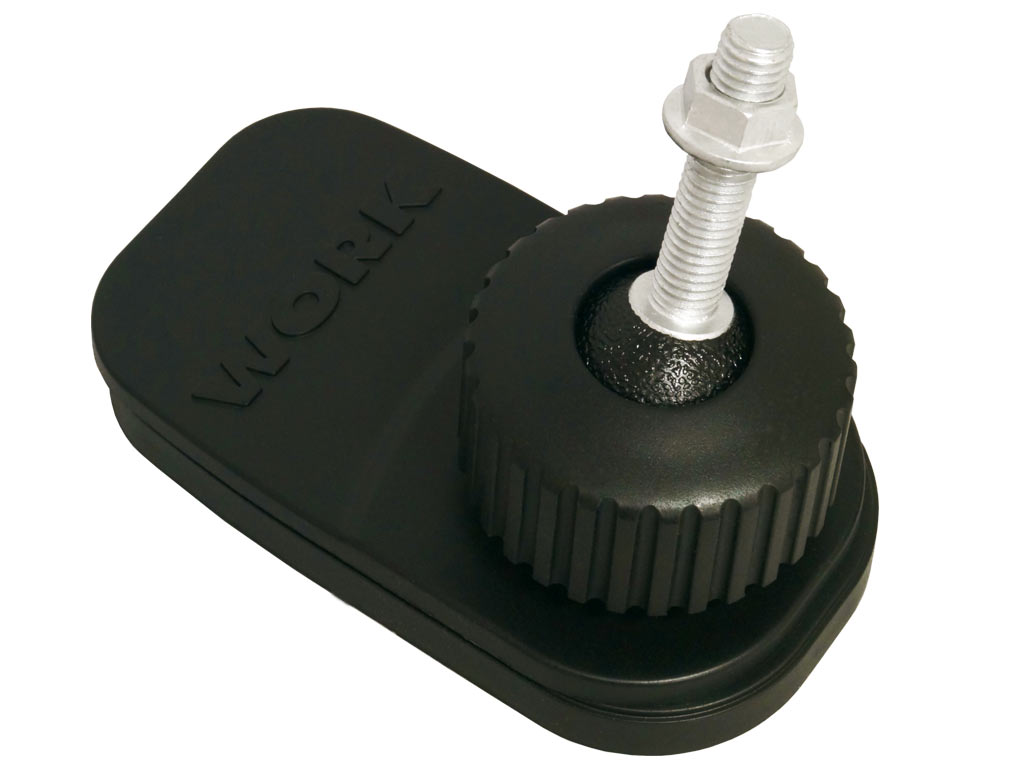

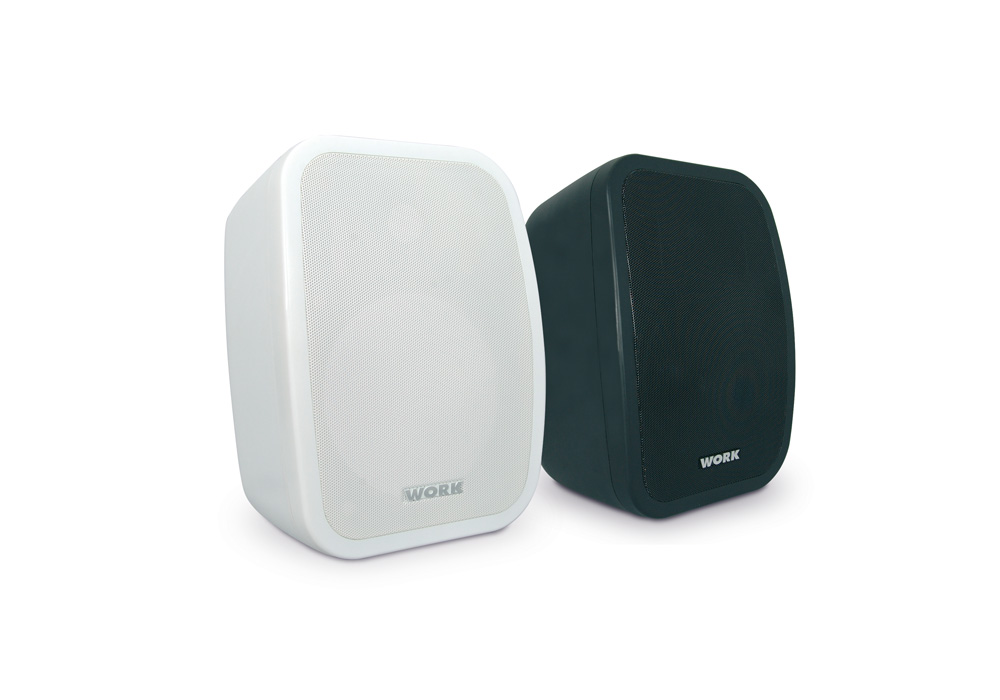

The NEO 4 is a 2-way speaker made of ABS plastic with a white or black aluminum grille. It consists of a 4″ woofer and a 0.5″ tweeter. Its key feature is its compatibility with both 70/100V and low-impedance installations. When connected to a low-impedance system, the audio signal bypasses the transformer to maintain high sound quality. The NEO 4 is also very easy and quick to install, thanks to the new bracket designed specifically for this model, which also allows for quick adjustment of the speaker’s orientation on both axes.

Additional information
Color

Black

,

White

Specifications
Guy 2-way. Passive.
Low impedance power 15W RMS/30W Program/ 30W RMS @ 8 Ohm
Power 100V 16W @ 625 Ohm, 8W @ 1k25 Ohm, 4W @ 2k5 Ohm, 2W @ 5KOhm
Power 70V 8 W @ 625 Ohm, 4 W @ 1k25 Ohm, 2 W @ 2k5 Ohm, 1 W @ 5 KOhm
Nominal Impedance 8 Ohm.
LF Transducer 4″ Woofer
HF Transducer Tweeter 0.5″
Sensitivity (1W @ 1m) 89 dB
Max SPL 104 dB
Coverage Angle (H x V) 120º x 90º
Frequency Range 98 Hz – 20 kHz
Connectors Euroblock
Enclosure Material ABS
Rack Aluminum
Inserts / Rigging Wall brackets (included)
Color White (RAL 9003), Black (RAL 9004)
IP Protection IP54
