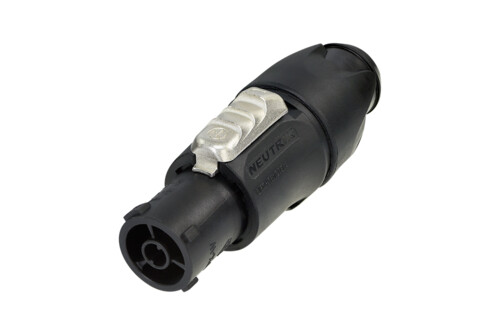

NAC3FX-W-TOP
Original price was: €10.15.€9.65Current price is: €9.65. (inc. VAT)
NEUTRIC Lockable 16A (according to VDE)/20A (according to UL) connector
Only 1 left in stock
Description
The powerCON TRUE1 TOP is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Keyed for Power IN, screw terminals, up to 16 A (USA: 20A)
The powerCON TRUE1 TOP is a single-phase connector with breaking capacity (CBC)
Features
- IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Extremely robust and reliable cable retention
- Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
- Superior NEUTRIK quality standard
Specifications
Technical Information
| Product | |
| Title | NAC3FX-W-TOP |
| Connector series | powerCON TRUE1TOP |
| Electrical | |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 0,1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC |
| Rating USA | UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC |
| Mechanical | |
| Cable O.D. | 6 – 12 mm (0.23 – 0.47 inches) |
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.0 – 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn0.2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Temperature range | -30 °C to +80 °C |
