MU 200 LV
Original price was: €180.00.€160.00Current price is: €160.00. (inc. VAT)
Single Lavalier Wireless System
In stock

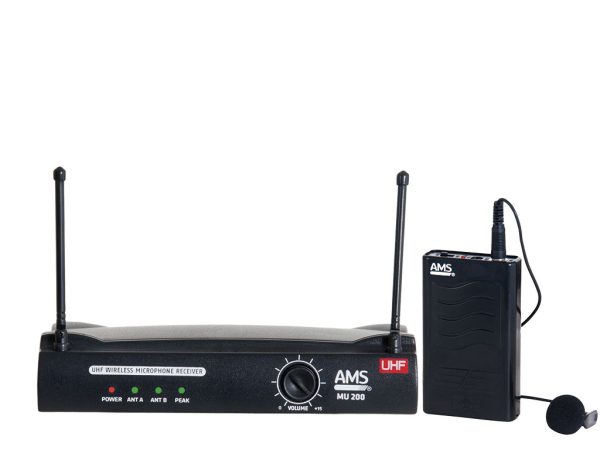

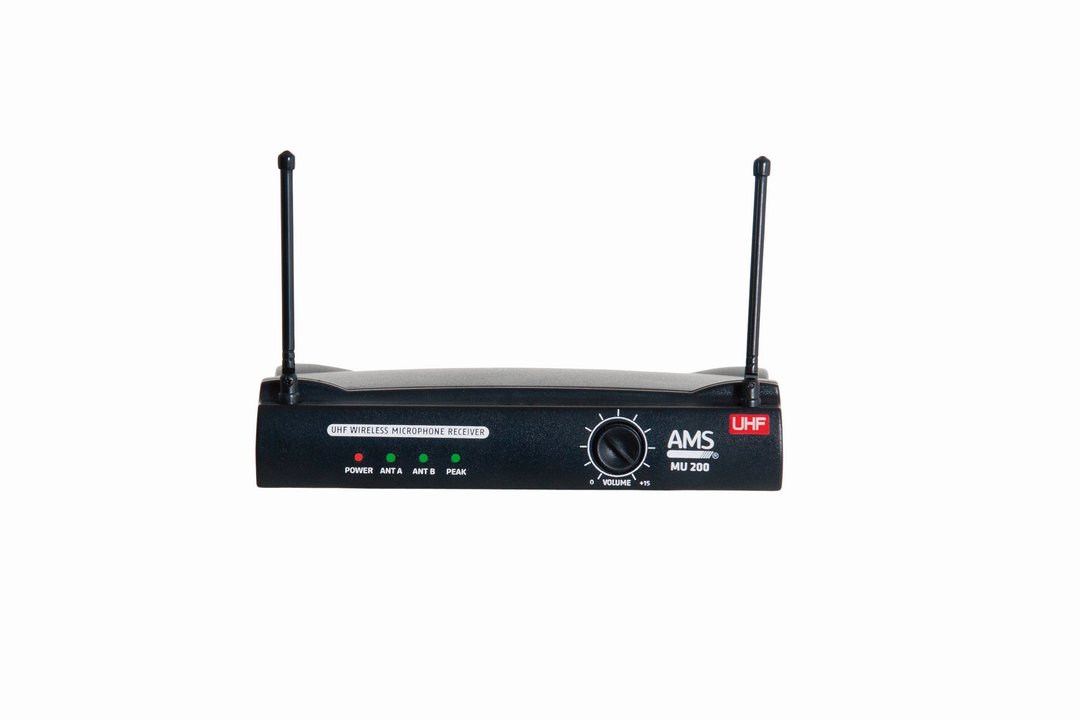

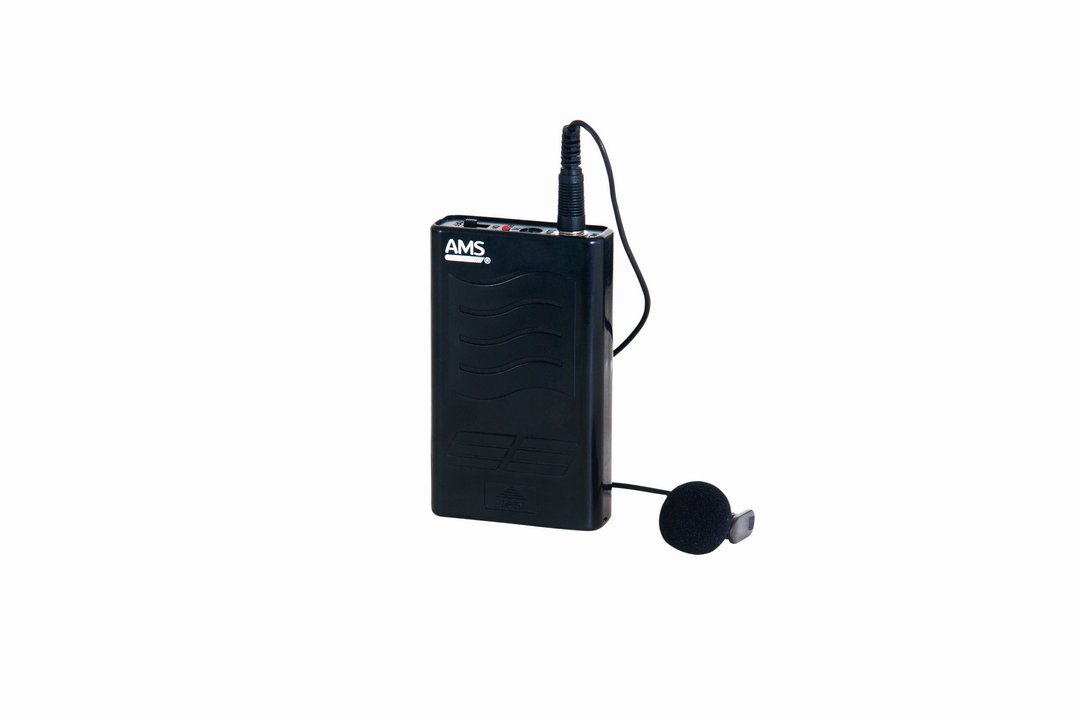

MU 200 LV UHF Wireless system: receiver + transmitter bodypack with a lavalier microphoneMU 200 LV is a diversity monochannel wireless system in the UHF range, composed of a receiver (MU 200) and a transmitter bodypack with a lavalier microphone.The receiver adds gain control and LEDs to inform about the state of the reception in both antennas, output peak level and main supply. The rear panel incorporates the audio output for the mixer, with high and low connection(¼” Jack andXLR 3 pin respectively), unbalanced (¼” Jack cable -¼” Jack included), as well as a switch to select the impedance level of the output.In addition, MU 200 adds squelch adjustment in order to adjust the correct reception signal (adjustment tool included).
·Frequency band: UHF
·Frequency range: 470 - 786 MHz
·Frequency stability:± 30 ppm
·Dynamic range: > 90 dB
·THD: < 0.5%
·Frequency response: 80 Hz - 18 kHz (±3 dB)
·Audio output (separated): 0~± 500 mV
·Audio output (hybrid):0~± 300 mV
·Main supply (receiver): 12V DC / 200 mA (external supply included)
·Main supply (transmitter): Battery 9V DC 6F22
·Dimensions: 190 x 135 x 38 mm (receiver) - 105 x 60 x 20 mm (bodypack)
·Weight: 450 g (receiver) - 220 g (transmitter)
