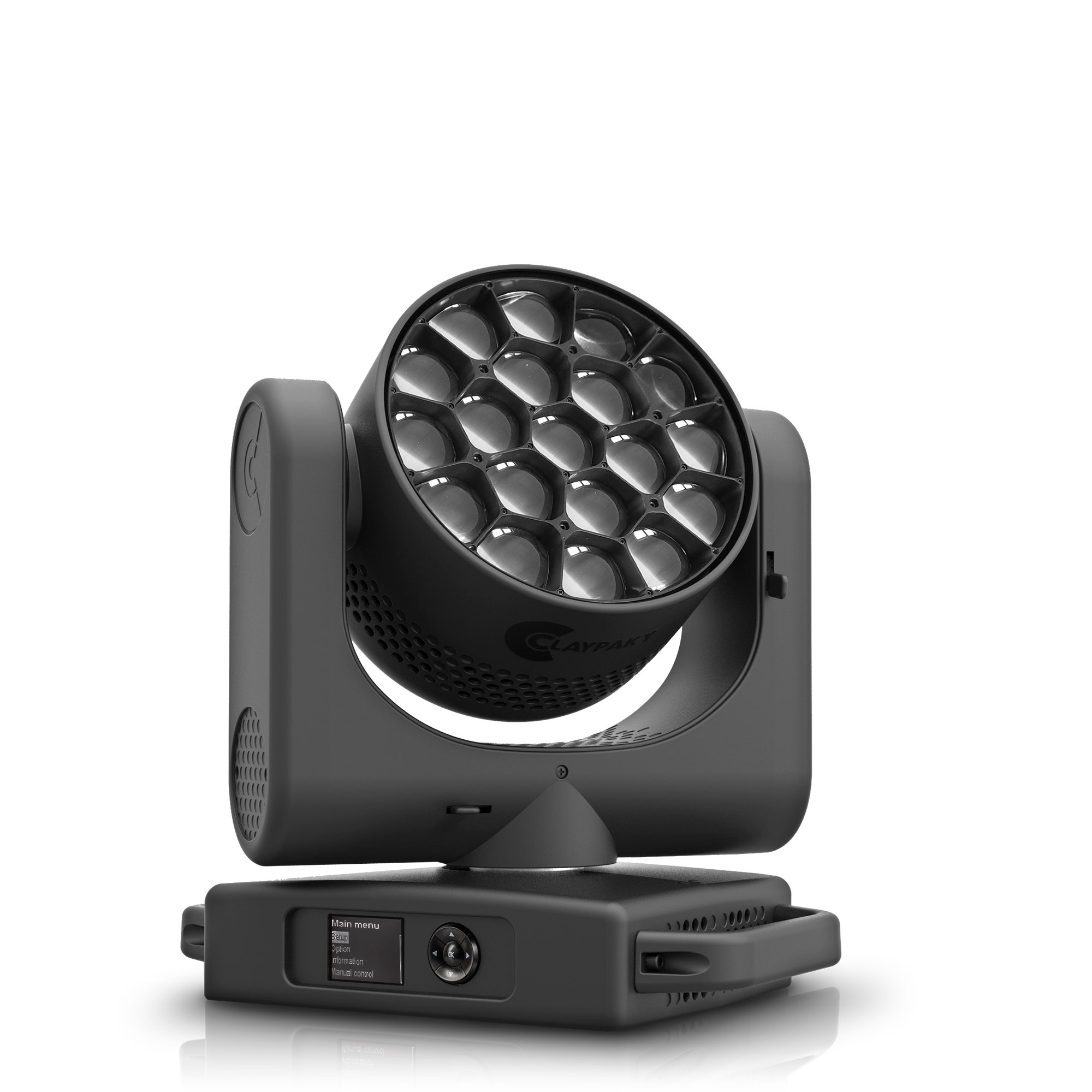

MIDI-B WW

LIGHT SOURCE TYPE

• 19x Osram 40W RGB + W LEDs.
• 19x Osram 40W RGB + WW LEDs.
• 1900 lumen each LED
• LED life expectancy: 50000Hrs ( 20000Hrs L70* )
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• Zoom range: 4°- 50°
• 11401 Lumen Output (Integrating Sphere)

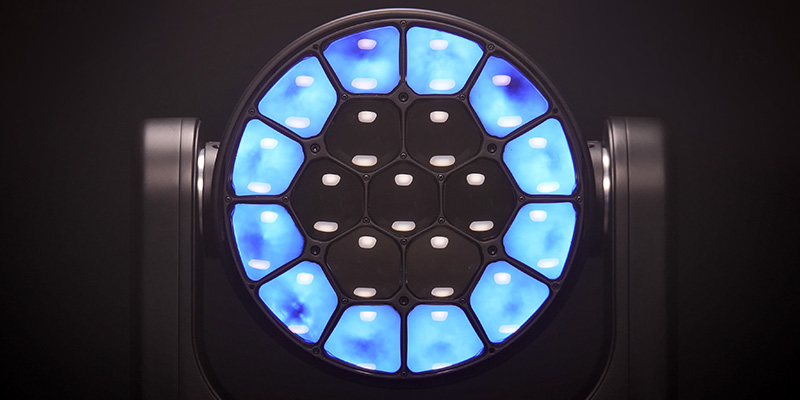

• High efficiency optical system

NOISE LEVEL

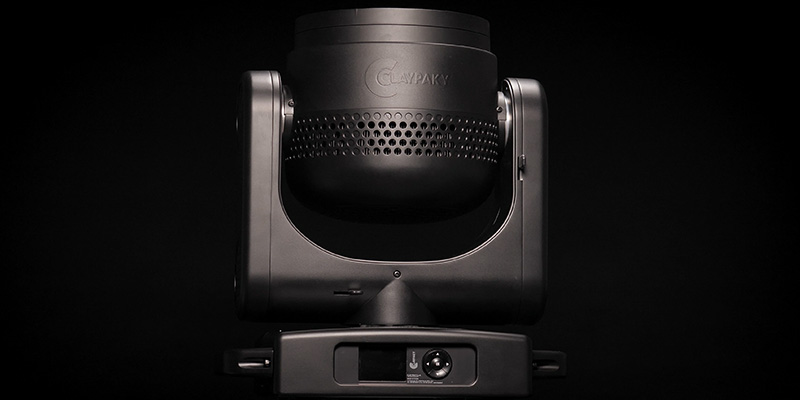

• Theatre Fan mode: 34.5 dBA
• SLN Fan Mode: 35.2dBA
• Auto Fan Mode: 39.2 dBA
• Constant Fan mode: 41.2 dBA

CONTROL and CONNECTIONS

• Personalities: 4 modes with 17/21/25/37 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/OUT
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1 IN/OUT
• Built In Web Server

DYNAMIC EFFECTS

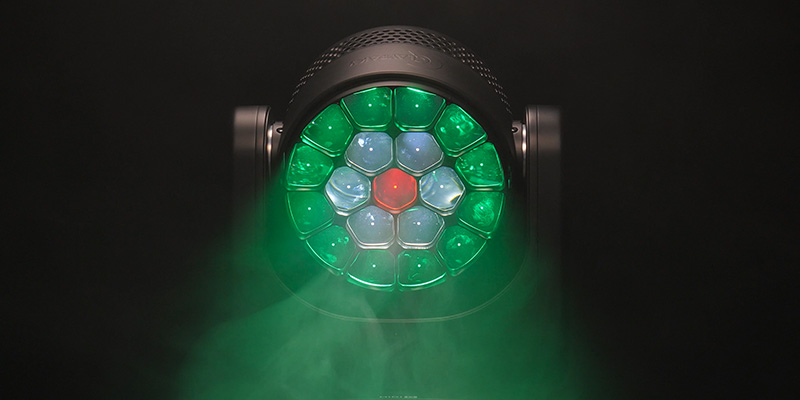

• Colors:
  • Linear RGB + W
  • Linear CTO (2500K to 8000K color temperature control)
    • Linear RGB + WW
    • Linear CTO (6500K to 2500K color temperature control)
  • Preset Macro colors

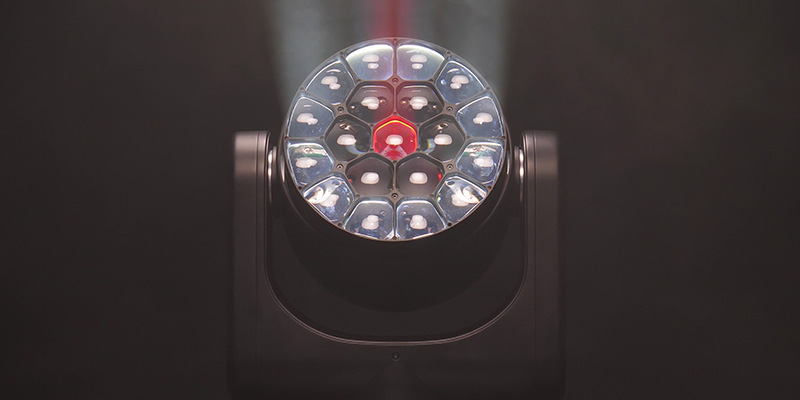

  • Three independently controlled LED rings
• Movement:
  • Tilt: 270° – 16bit
  • Pan: 540° – 16bit
  • Automatic repositioning
  • Fast/Standard speed selectable by Function channel
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
• Beam:

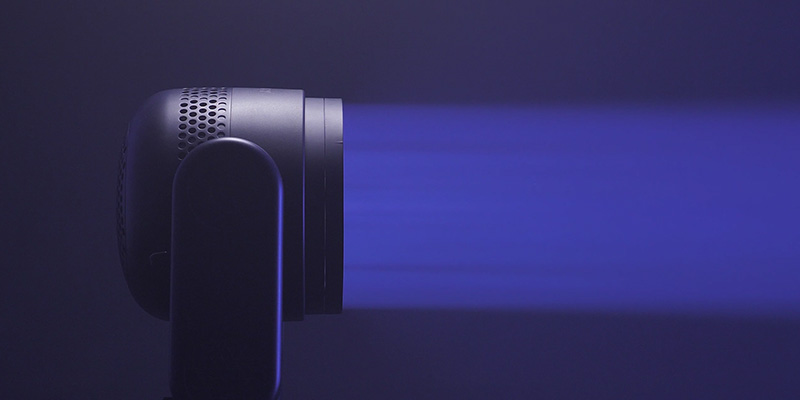

  • Motorized Zoom
  • Automatic repositioning when DMX is disconnected
• Dimmer/Shutter:
  • High resolution electronic Dimmer – 24 bit (5 curves)
  • High speed electronic Strobe

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

HOUSING

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

WORKING POSITION

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

ELECTRICAL

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 830VA

THERMAL SPECIFICATION

• Max ambient temperature 45°C (113°F)
• Min ambient temperature -20°C (-4°F)
• Max temperature of the external surface 90°C (194°F)
• Total heat dissipation: 2596 BTU/hr ±10% / 2736 kJ/hr ±10%

SAFETY SPECS

• Minimum distance of illuminated objects: 0,2 m (8’’)
• Mininum distamce from flammable material: 0,2 m (8’’)
• Protections:
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans
  • Fuse T10A – 250V

COMPLIANCE

• CE marking (in conformity to the following):
  • 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU – Electromagnetic Compatibility (EMC)
  • 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
• UKCA conforms to UK regulations:
  • S.I. 2016 N. 1101
  • S.I. 2016 N.1091
  • S.I. 2012 N.3032
  • S.I. 2010 N.2617
• cMETus Listed:
  • UL 1573:2003
  • CSA C22.2 N.166:2015

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (4 positions)

WEIGHT – SIZE

• 17 Kg (37.5 lbs)
• 252x390mm (base dimension) – 471mm with vertical head (h)
• Distance between two fixtures 500mm

ACCESSORIES

• Omega clamps: 2×183102/805 (included)
• Power cord: CAB03D/802 (included)
• Foam shell: F21321/001 (optional)
• Flight case (4 pos.): CF1010F (optional)
• Safety Chain: 105041/003 (optional)
