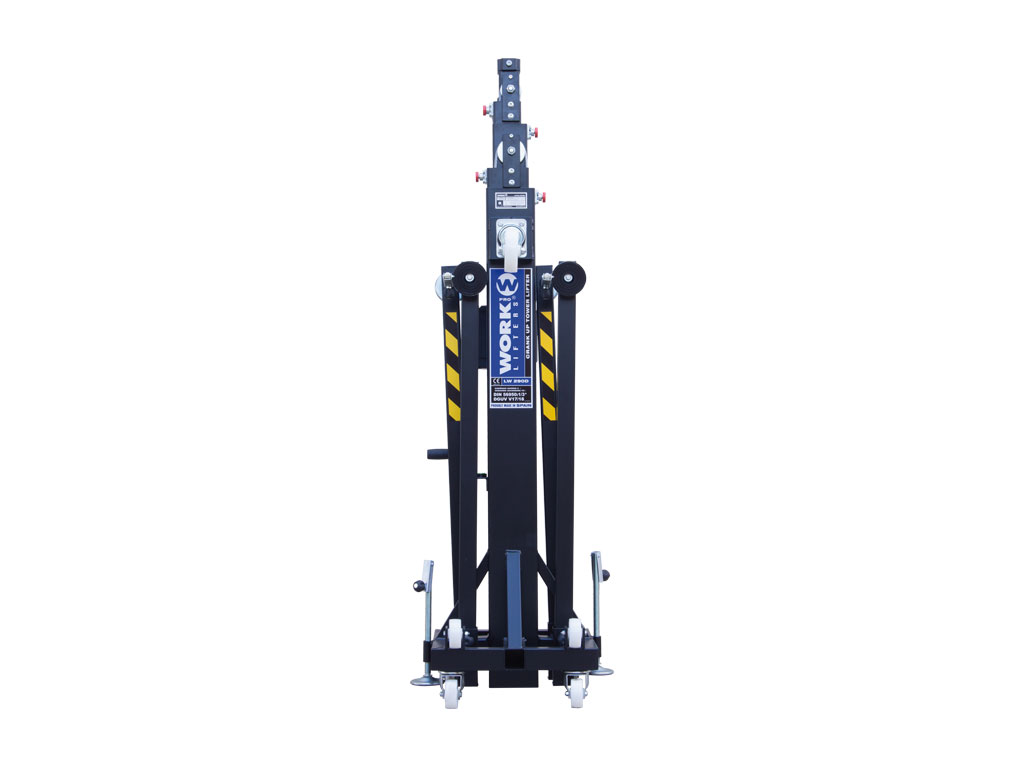

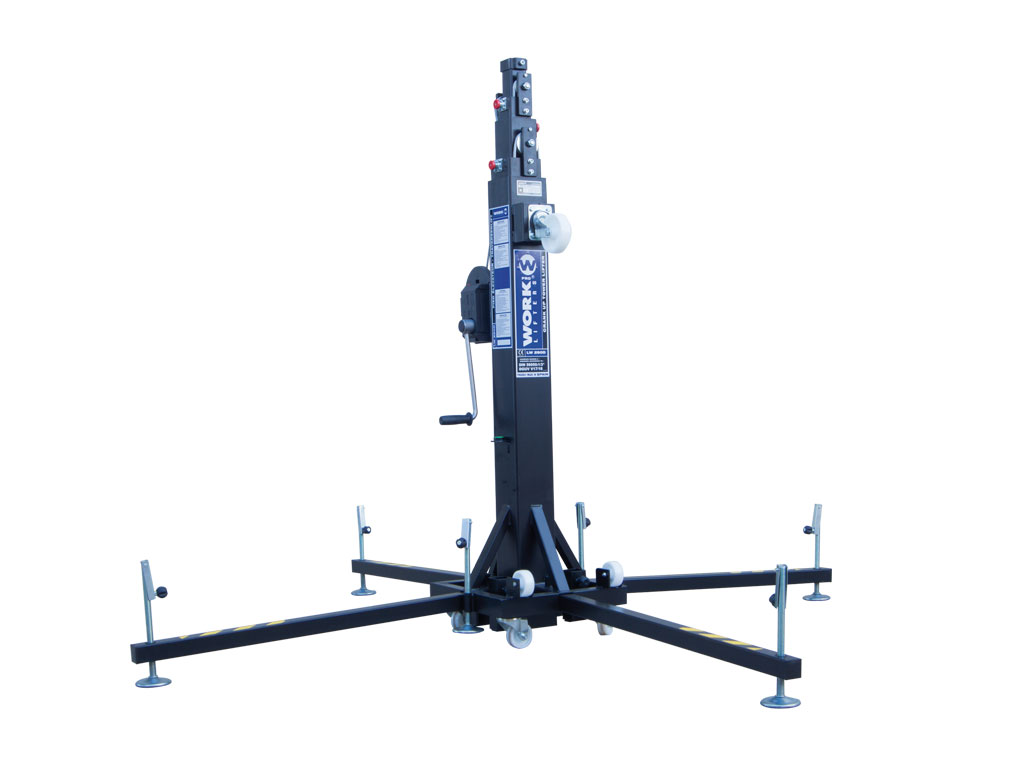

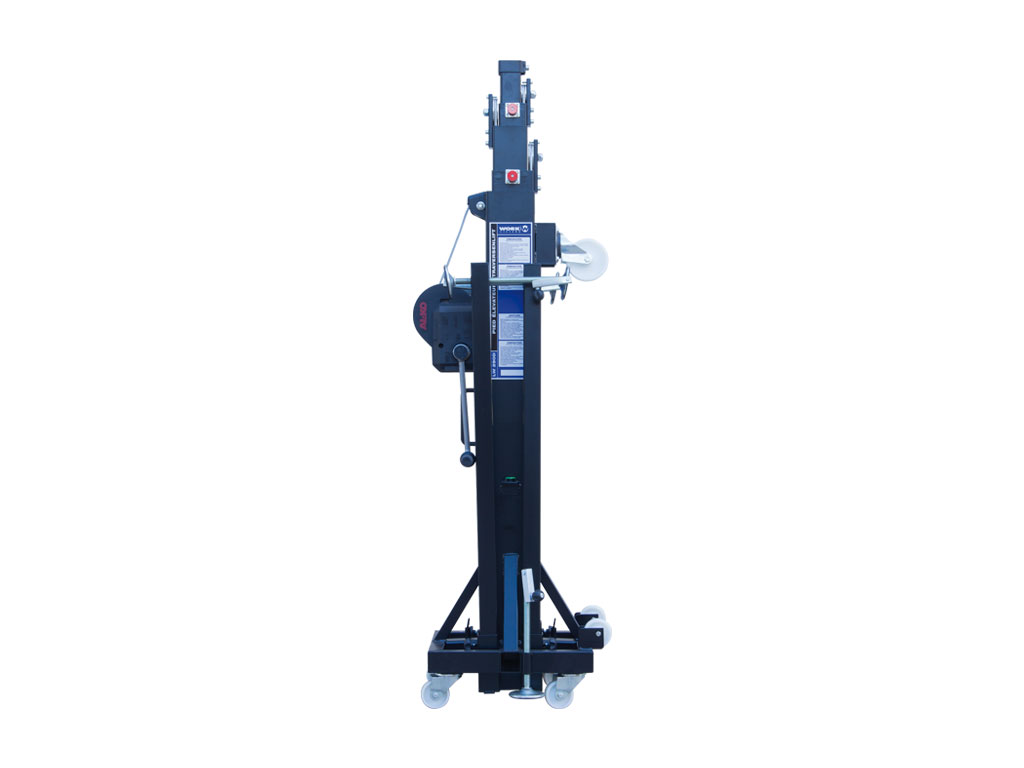

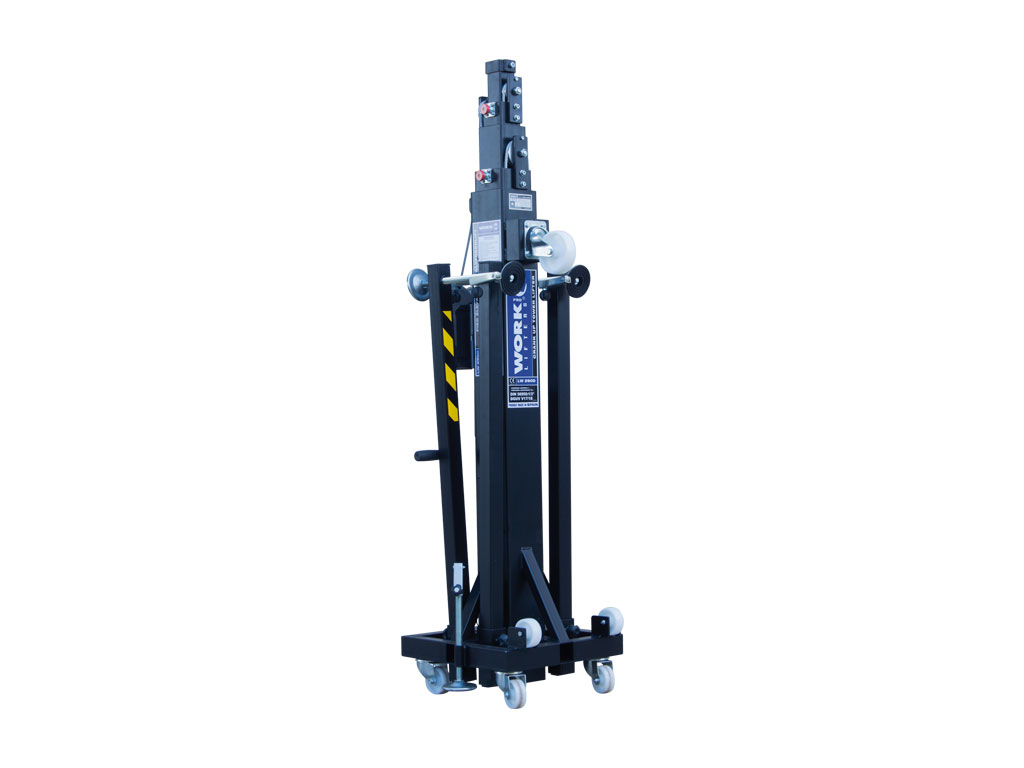

Heavy-Duty Telescopic Lifting Tower – 290 Kg Capacity, 6.6 m Reach

Original price was: €2,950.00.Current price is: €2,390.00. (inc. VAT)

Telescopic lifting tower. Maximum load: 290 Kg. Maximum height: 6.6 m. Weight: 136 Kg.

Out of stock

SKU: LW290D Category:
Description

The LW-D Series incorporates the innovative Wire Drive system, which has been developed in order to prevent undesired and dangerous cable crosses in the drum of the winch, making easier the roll up/unroll process and avoiding crashing or fraying that could reduce the useful life of the cable or (in the worst case) its breakage. Wire Drive consists of a multidirectional grooved pulley that reduces the wire fleet angle between the winch drum and its entry to the first mast, in order to be compliant with DIN 56950 standard.

Specifications

Maximum load: 290 Kg.

Maximum height: 6.6 m.

Weight: 136 Kg.

Top insertion: 35 mm

Material Steel
Unfolded base 460 x 460 mm / 1.51 x 1.51 ft
Maximum height 6.6 m / 21.65 ft
Minimun height 1.84 m / 6.04 ft
Unfolded base diameter 2.58 m / 8.46 ft
No. of sections 5
Maximum Load 290 Kg / 639.34 Lb
Minimum Load 25 Kg / 55.12 Lb
Net Weight 136.8 Kg / 301.59 Lb
Winch 900 Kg / 1984.16 Lb
Noise Emission 75 dB
Standards and Certifications DIN 56950
Colour Black
