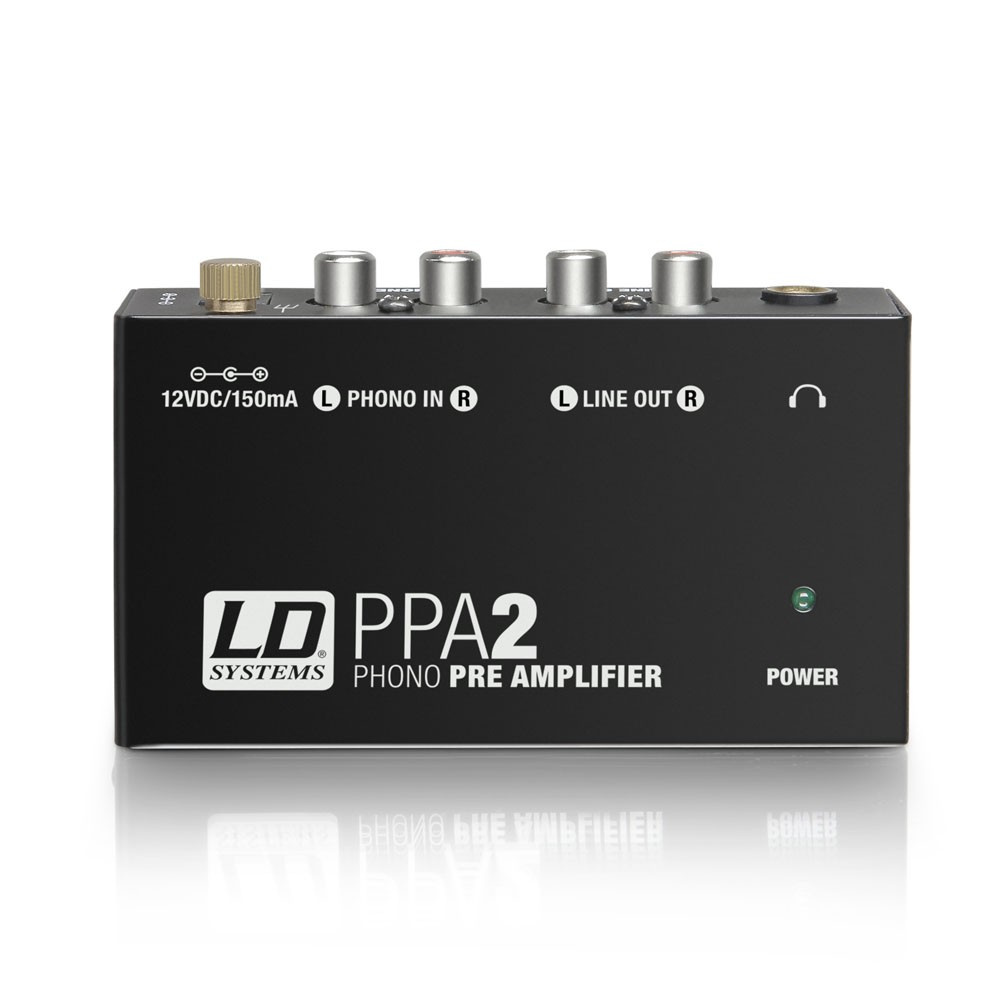

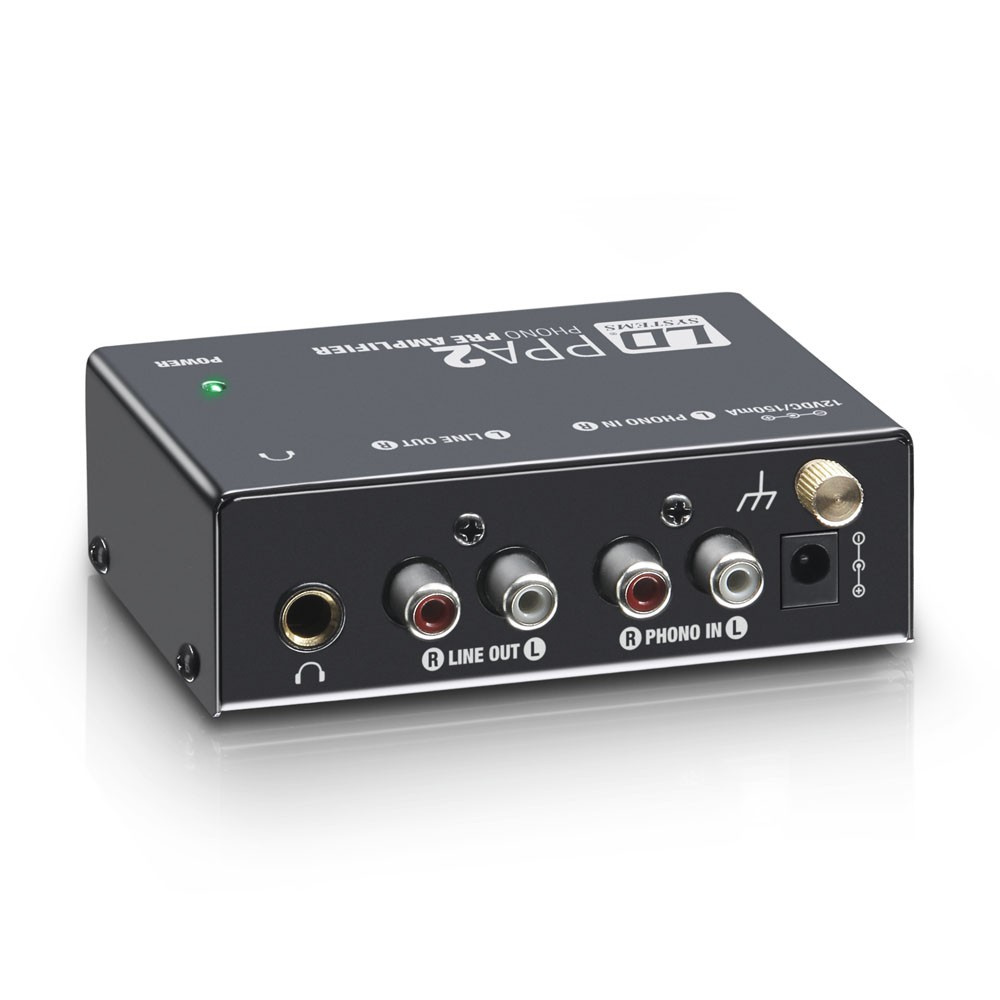

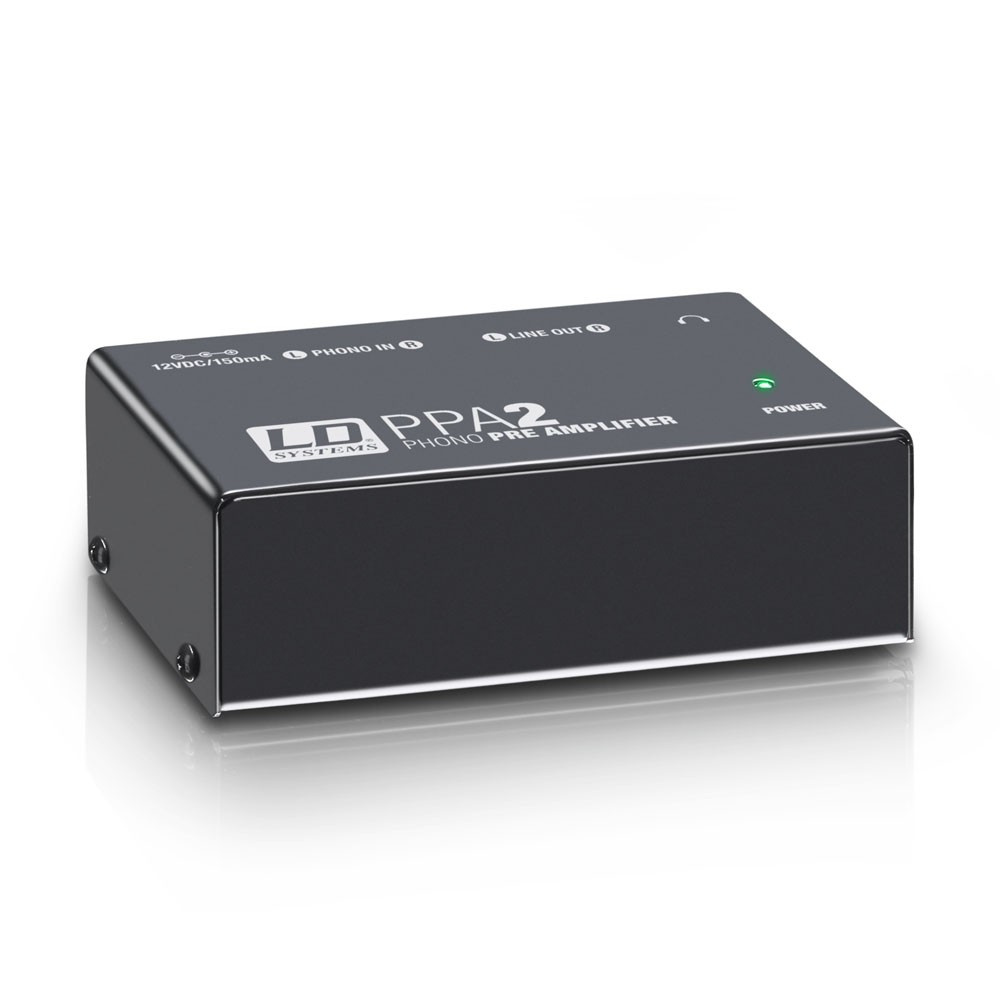

Phono Preamplifier and Equalizer
Only 1 left in stock
Description
- Ultra compact phono preamplifier and equalizer
- Proper RIAA equalization
- RCA inputs and outputs
- 6.3 mm stereo headphone output connector
- Sturdy metal housing

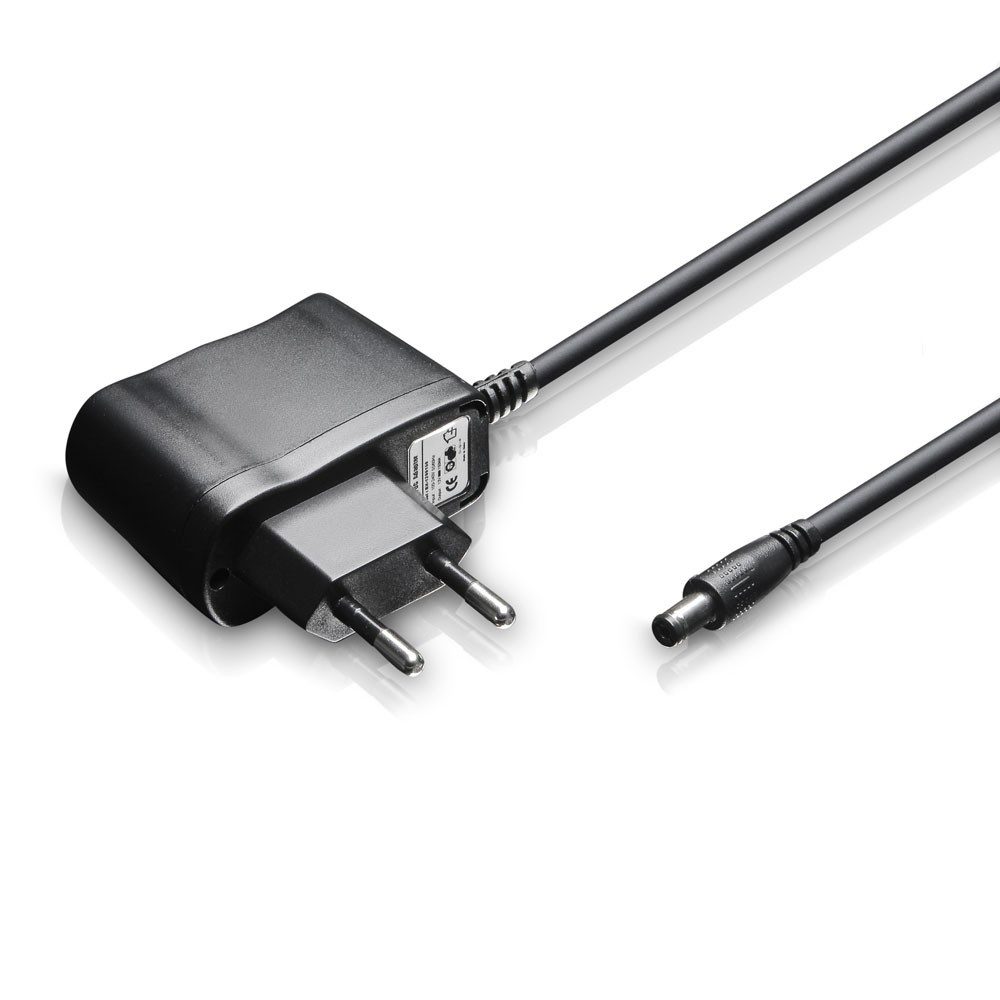

- 12 V AC/DC adapter included
Additional information
| Weight | 0.028 kg |
|---|
Specifications
Product type Other Studio and Recording Equipment
Version Stereo Input / Stereo Output
Frequency response RIAA Curve Hz
Signal-to-noise ratio 70 dB
Total Harmonic Distortion (THD) <0.05%
Crosstalk -75 dB
Max. input level -23.5 dBV
Max Output Level +10 dBV
Input impedance (kOhms) 47 kOhm
Output impedance 50 Ohm(s)
Indicators power LED
Inputs 1 x Phono Stereo
Input connectors 2 x RCA, Earth terminal
Line outputs Headphones, Line Stereo
Line output connectors 2 x RCA, 6.3 mm TRS
Operating voltage External Power Supply
Operating voltage 12 V DC
Max. Current 0.15
Width 104 mm
