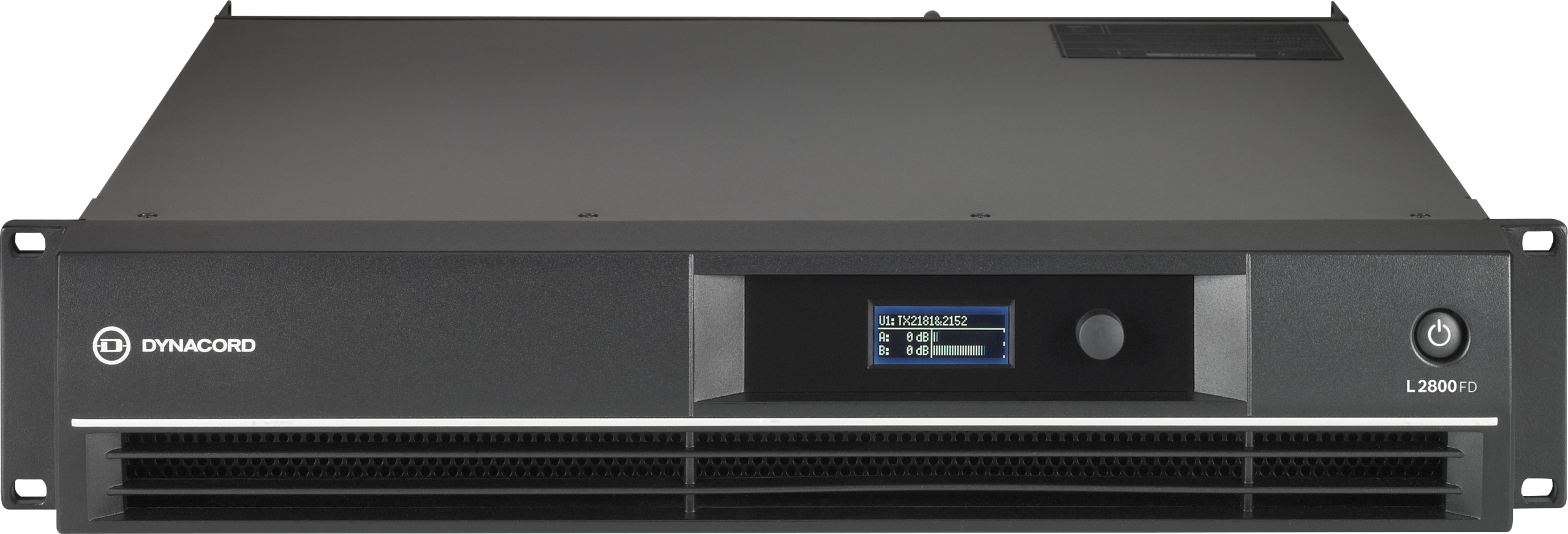

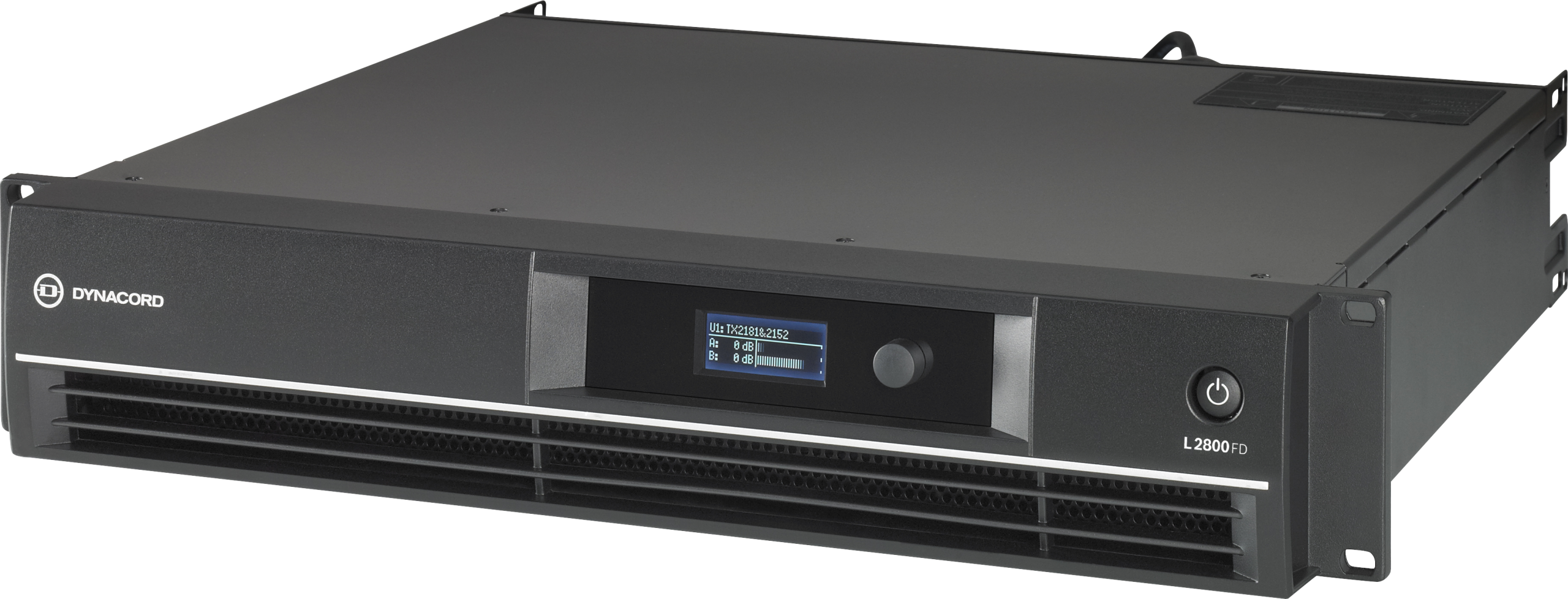

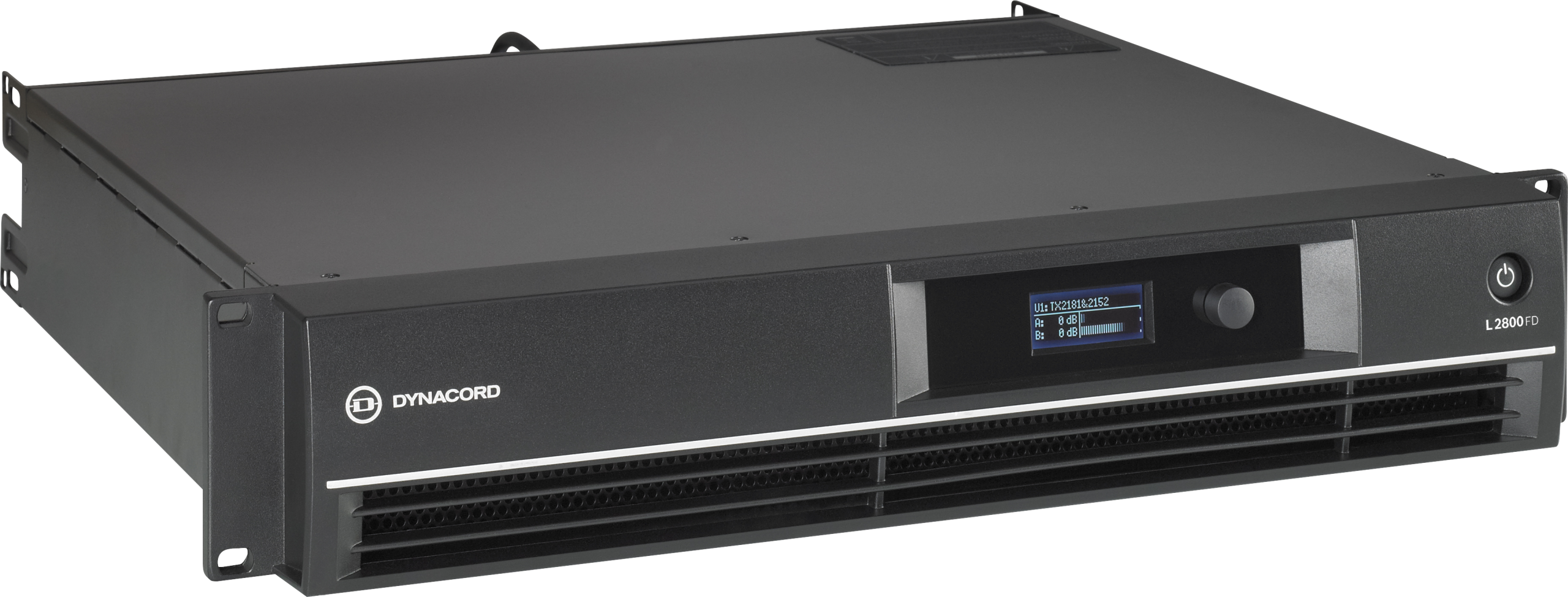

L2800FD
Original price was: €1,690.00.€1,360.00Current price is: €1,360.00. (inc. VAT)
Out of stock
Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
| Load Impedance | 2 Ω | 2.7 Ω | 4 Ω | 8 Ω |
| Maximum Output Power, Single Channel | 2300 W | 2000 W | 1400 W | 700 W |
| Maximum Output Power, Dual Channel | 2200 W | 1800 W | 1300 W | 650 W |
| Maximum Output Power, Bridged | – | – | 4400 W | 2600 W |
| Maximum RMS Voltage Swing THD = 1%, 1 kHz | 78.8 V | |||
| Voltage Gain Ref.1 kHz | 32.0 dB | |||
| THD at 900 W/4 Ω MBW = 80 kHz, 1kHz | < 0.05% | |||
| IMD-SMPTE, 60 Hz, 7 kHz | < 0.1% | |||
| DIM30, 3.15 kHz, 15 kHz | < 0.05% | |||
| Maximum Input Level | +21 dBu | |||
| Crosstalk ref. 1 kHz, at 100W/4 Ω | < -80 dB | |||
| Frequency Response, ref. 1 kHz | 10 Hz to 21 kHz (±1 dB) | |||
| Input Impedance, Active Balanced | 20 k Ω | |||
| Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω | >107 dB | |||
| Output Noise, A-weighted | < -68 dBu | |||
| Output Stage Topology | Class H | |||
| Power Requirements | 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz(factory configured) | |||
| Power Consumption ⅛ Maximum Output Power @ 4 Ω | 700 W | |||
| Mains Fuse | 240 V/230 V: T15AH; 120 V/100 V: T25AH | |||
| Protection | Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay | |||
| Cooling | Front-to-rear, 3-stage-fans | |||
| Ambient Temperature Limits | +5°C to +40°C (40°F to +105°F) | |||
| Safety Class | I | |||
| Color | Black | |||
| Dimensions (W x H x D), mm | 483 x 88 x 462.4 | |||
| Weight | 16.2 kg (35.7 lb) | |||
| Signal Processing | FIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance | |||
| Remote Control | SONICUE sound system software ** | |||
| Accessories | RMK15 (rear rack mount kit) | |||
Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dBu).
** requires firmware 2.0.
