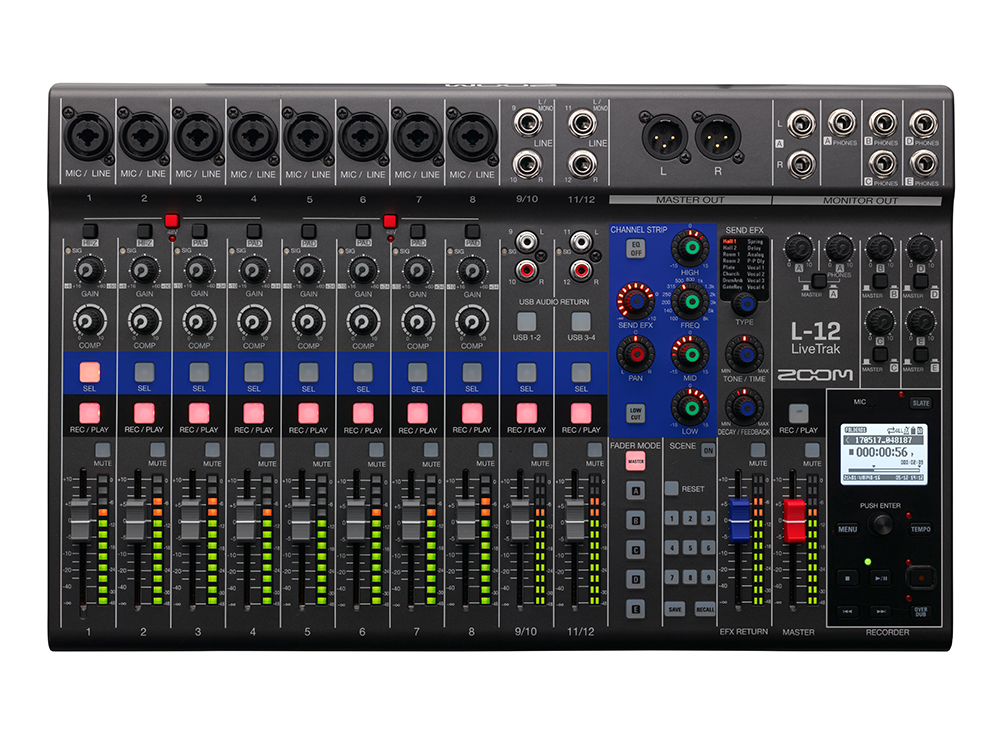

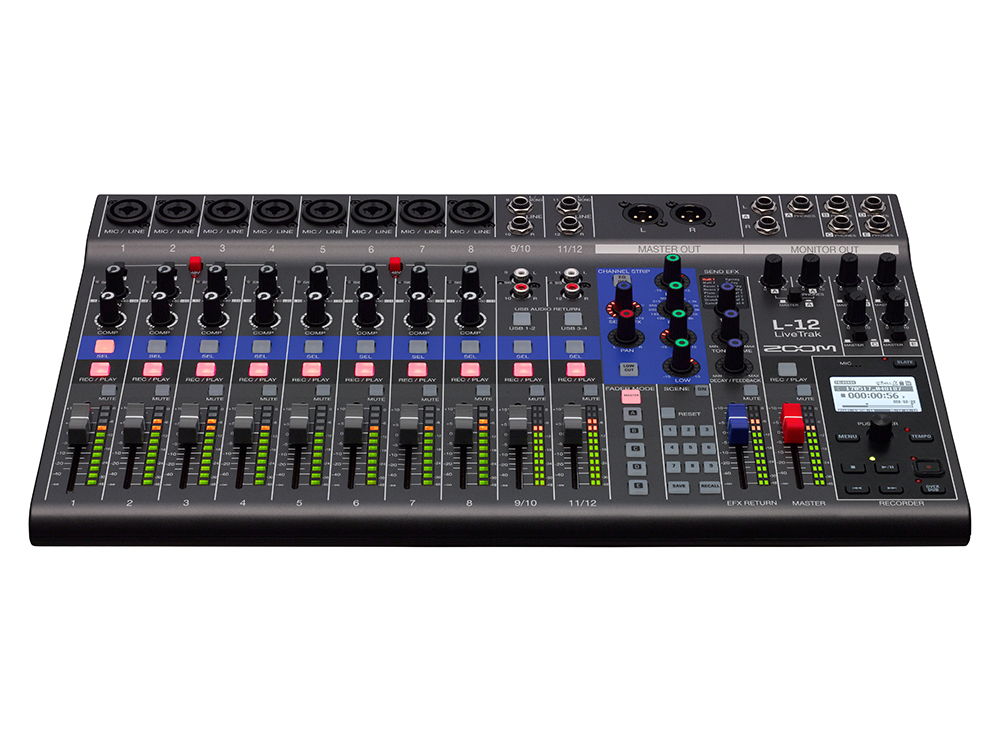

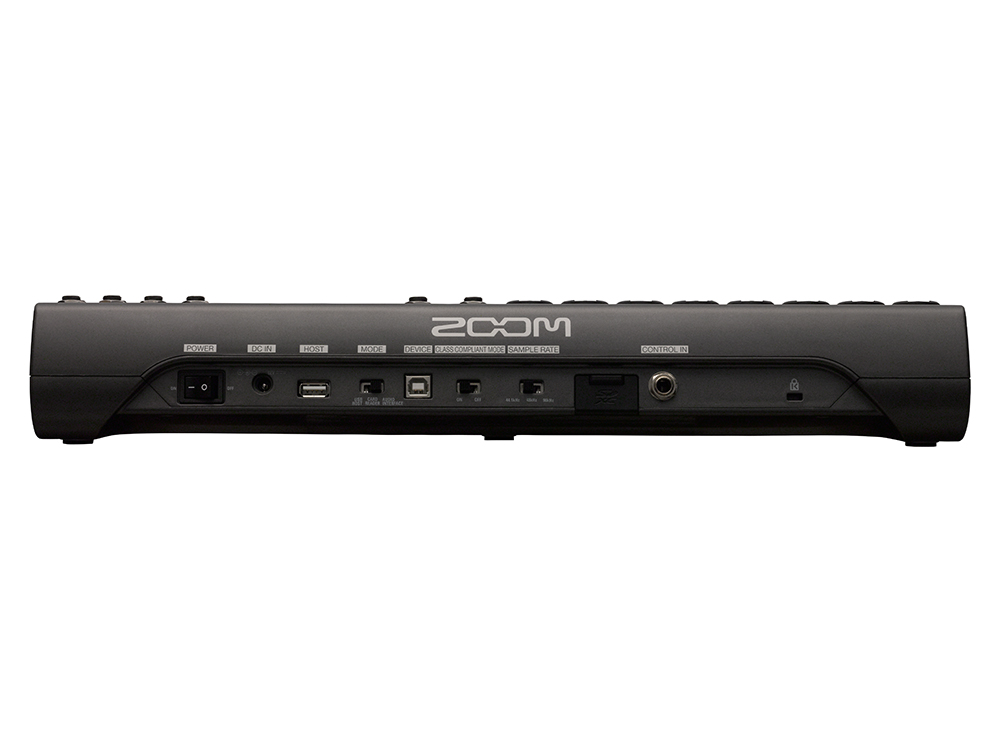

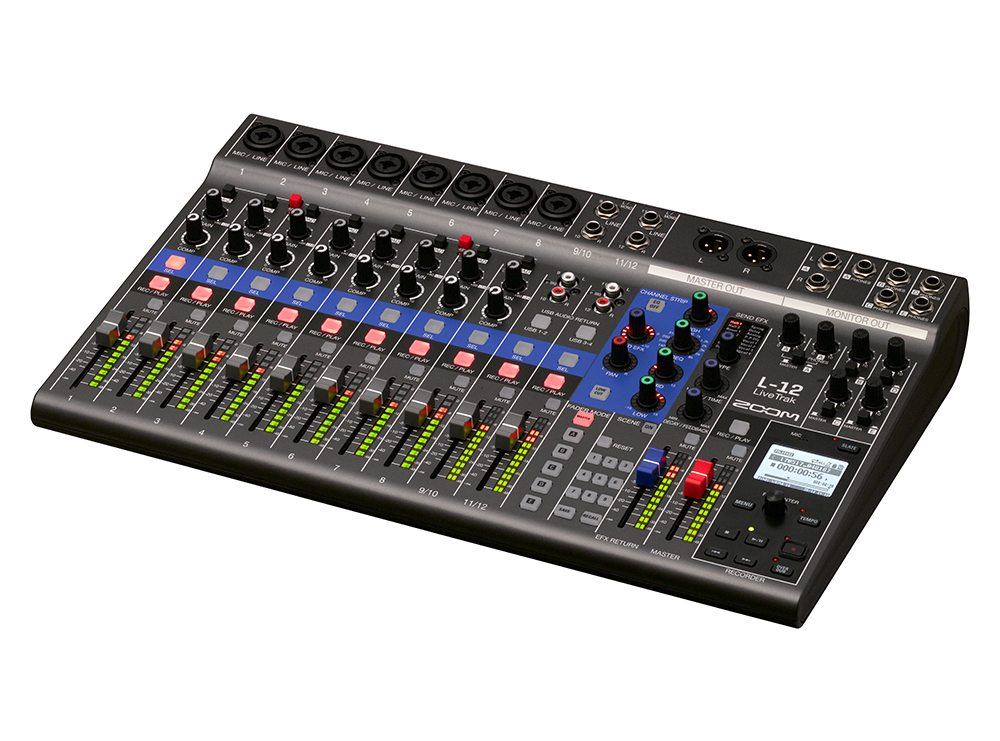

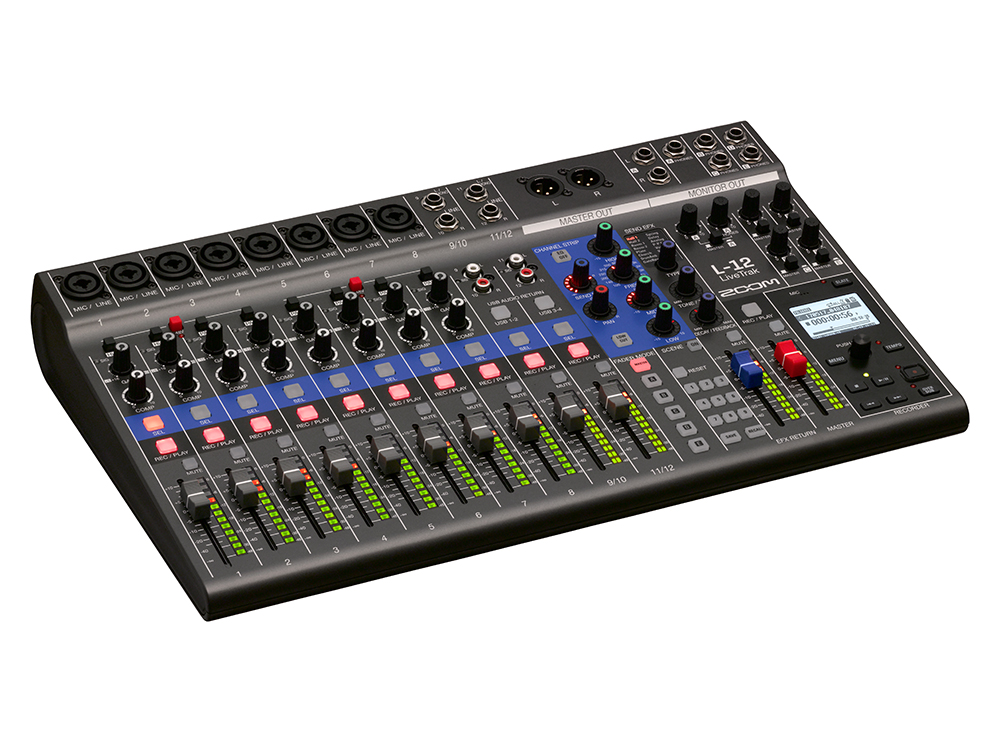

ZOOM L-12
Original price was: €840.00.€670.00Current price is: €670.00. (inc. VAT)
Compact Podcast Mixer, Audio Interface and Recorder
In stock
MIX, RECORD, MONITOR, PLAYBACK, AND REMIXWith the LiveTrak L‑12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.
·12iscrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
·14-track simultaneous recording, 12-track playback
·14-in/4-out USB audio interface connectivity
·5 powered headphone outputs, each with a customizable and saveable mix
·Add backing/click tracks from your computer to your live mix and recording
·RCA and TRS line inputs
·48V phantom power (channels 1-4 and 5-8)
·Hi-Z connectivity (channels 1 and 2)
·26 dB pad (channels 3-8)
·Built-in compression control (Channels 1-8)
·Digital level meters -48 dB to -0 dB
·Master mute button
·Low-cut control
·Stereo panning
·Master and Monitor Outputs A-E
·Scene saving function, up to 9 scenes saved at a time
·16 built-in delay and reverb effects with adjustable parameters
·Built-in slate mic
·Class-compliant mode (for iOS compatibility)
·SD card input
·Built-in metronome
·Automatic recording starting/stopping capability
·Project protection
·Import/export projects with USB 2.0 host port
·Latency adjustment for A-to-D conversion
·Compatible functions for ZOOM FS01 footswitch
NUMBER OF INPUT AND OUTPUT CHANNELS
INPUTS: Mono (MIC/LINE): 8 Stereo (LINE): 2
OUTPUTS: MASTER OUT: 1
MONITOR OUT: 5
INPUTS
MONO (MIC/LINE): Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT))
Input gain : PAD OFF: +16 – +60 dB PAD ON: −10 – +34 dB Hi-Z ON: +6 – +50 dB
Input impedance : XLR: 3 kΩ TRS: 10 kΩ/1 MΩ (when Hi-Z ON
Maximum input level : PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at 0 dBFS)
Phantom power : +48 V
STEREO (LINE) Type TRS phone/RCA pin (unbalanced) jacks
Maximum input level +16 dBu
Outputs
MASTER OUT Type XLR jacks (balanced)
Maximum output level +14.5 dBu
Output impedance 100 Ω
MONITOR OUT – A (TRS) Type TRS phone jacks (balanced)
Maximum output level +14.5 dBu
Output impedance 100 Ω
MONITOR OUT A–E (PHONES) Type Standard stereo phone jacks
Maximum output level 42 mW + 42 mW at 60 Ω
Output impedance 100 Ω
Buses
MASTER 1
MONITOR 5
SEND EFX 1
Channel strip
COMP
LOW CUT 75 Hz, 12 dB/OCT
EQ HIGH: 10 kHz, ±15 dB, shelving MID: 100 Hz–8 kHz, ±15 dB, peaking LOW: 100 Hz, ±15 dB, shelving
LEVEL METERS 12 segments
SEND EFFECTS 16 types
Recorder
MAXIMUM SIMULTANEOUS RECORDING TRACKS 14 at 44.1/48 kHz 12 at 96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS 12
RECORDING FORMAT WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
RECORDING MEDIA 16MB–2GB SD cards, 4GB–32GB SDHC cards, 64GB– 512GB SDXC cards
Audio interface
44.1/48KHZ Recording: 14 channels | Playback: 4 channels
BIT DEPTH 24-bit
INTERFACE USB 2.0
Card reader
CLASS Mass storage USB 2.0 High Speed
USB HOST
CLASS USB 2.0 High Speed
SAMPLING RATE 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS Frequency characteristics (44.1 kHz): -1.0 dB: 20 Hz – 20 kHz | Frequency characteristics (96 kHz): -3.0 dB: 20 Hz – 40 kHz
EQUIVALENT INPUT NOISE Actual measurements: 128dB EIN (IHF-A) with +60dB/150Ω input
DISPLAY LCD with backlight (128×64 resolution)
POWER SUPPLY AD-19 AC adapter (DC12V/2A)
EXTERNAL DIMENSIONS 445 mm (W)×282 mm (D)×70.5 mm (H)
WEIGHT (MAIN UNIT ONLY) 2.53 kg
