IPA CS

Rated Input: 6W.
Max Input: 9W.
Impedance: 1.7kΩ, 3.3kΩ.
Power Taps: 100V: 6W, 3W； 70V: 3 W, 1.5W.
SPL(1W /1m): 90dB.
MAX SPL(Rated /1m): 96dB.
Frequency Response(-10dB): 100Hz~18kHz.
Dispersion (4kHz / 1kHz): 55° / 160°.

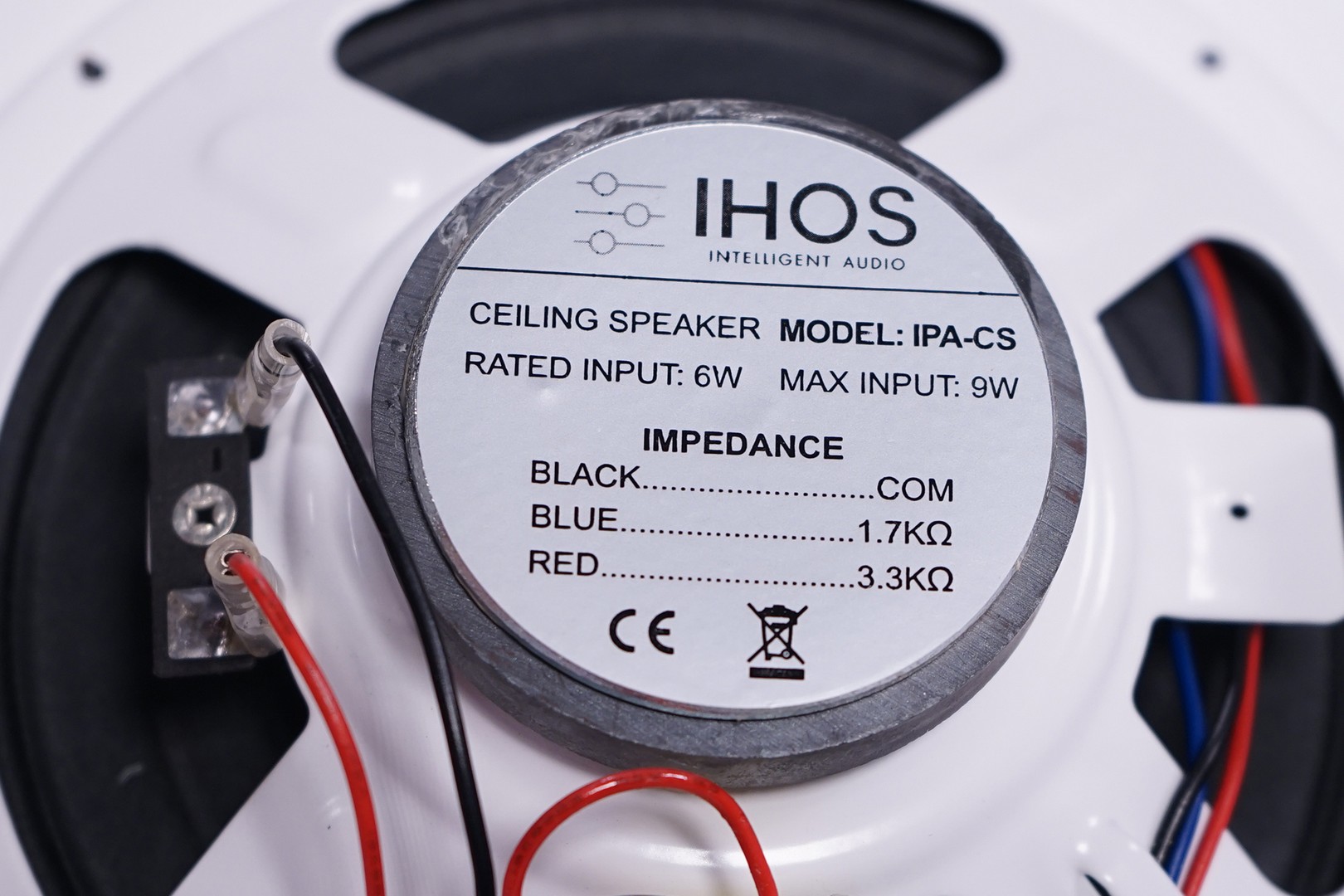

Power Selecting Way: Three core cables: Blue 1.7kΩ, Red 3.3kΩ, Black: COM.
Material: Panel &Grille: Steel.
Color: White.
Temperature / Humidity: -20°C ~55°C; <95%.
Speaker Component: 6.5’’Twin Cone Speaker.
Dimensions: Ø200 x 65H mm.
Mounting Hole: Ø 170 x 75H mm, Max Ceiling Thickness:25mm.
Weight: 0.7kg.

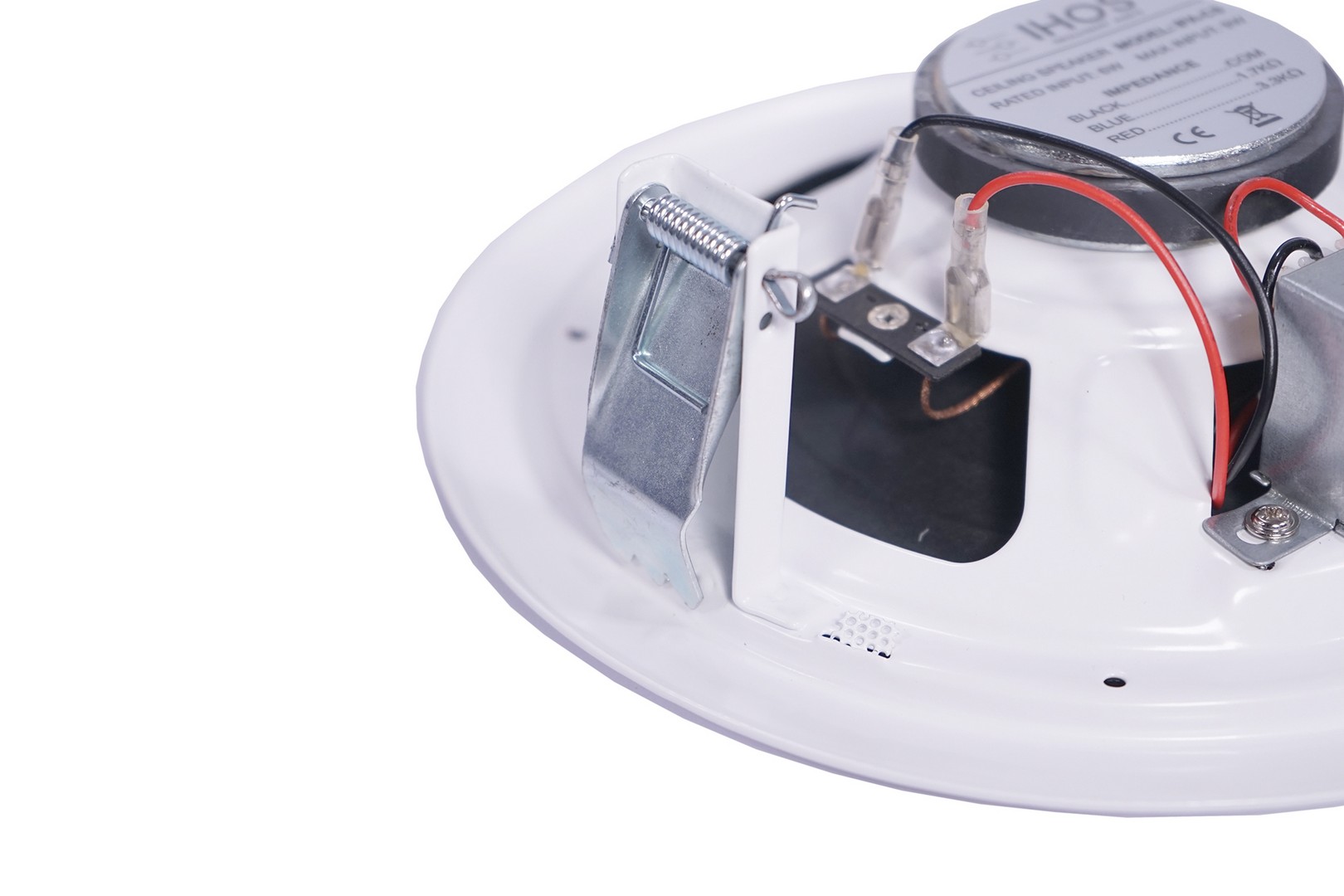

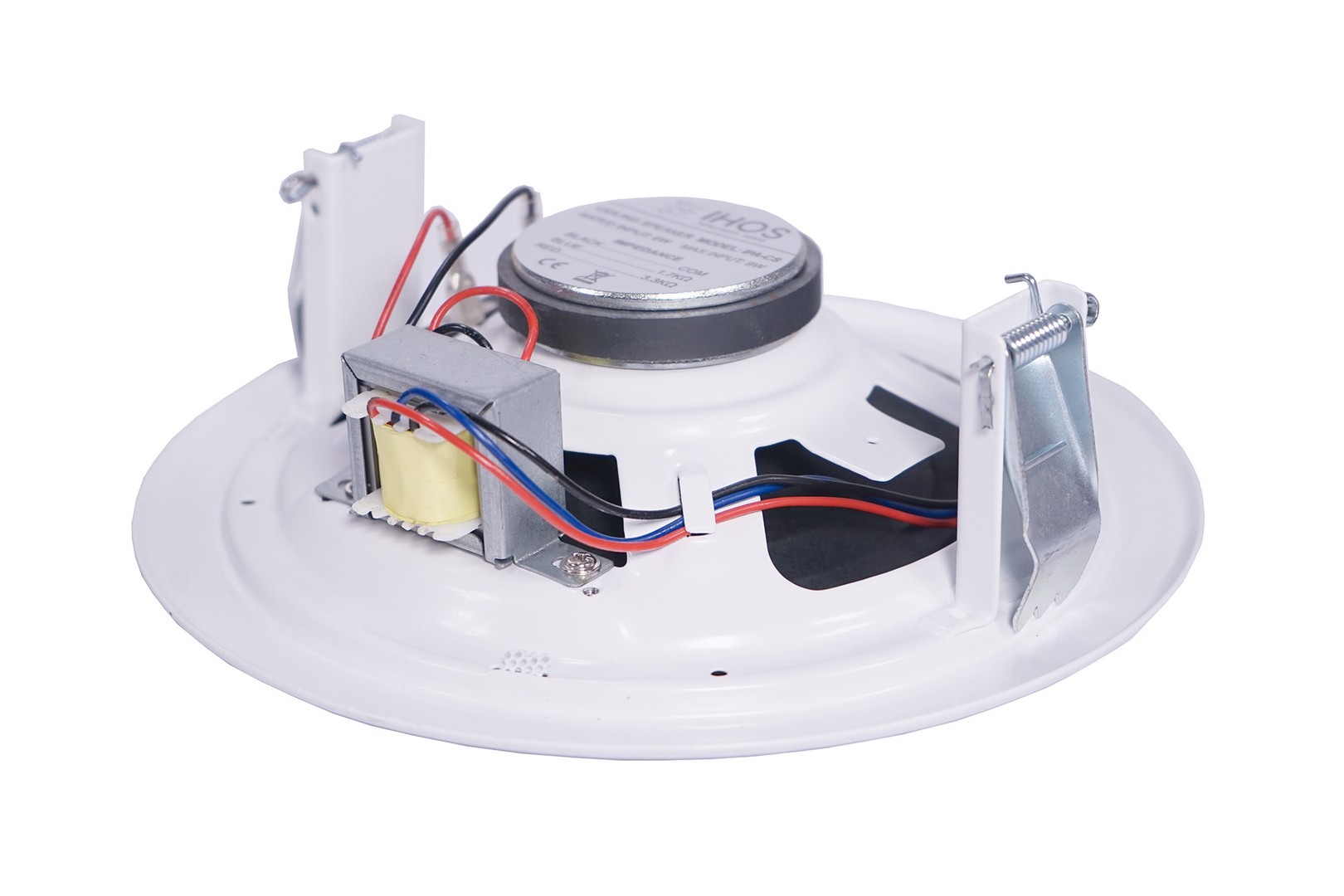

Mounting: Two Integral Spring-loaded Quick-Mounted locking Clamps.
Shipping Weight: 15kg, 20pcs.
Shipping Dimensions: 0.0669CBM, 42 x 37 x43 cm, 20pcs.
