Instasub 8A
Original price was: €980.00.€830.00Current price is: €830.00. (inc. VAT)
Installation Speaker
Expected back in stock: 28/07/2026 (in 5 days)
Get notified when it arrives

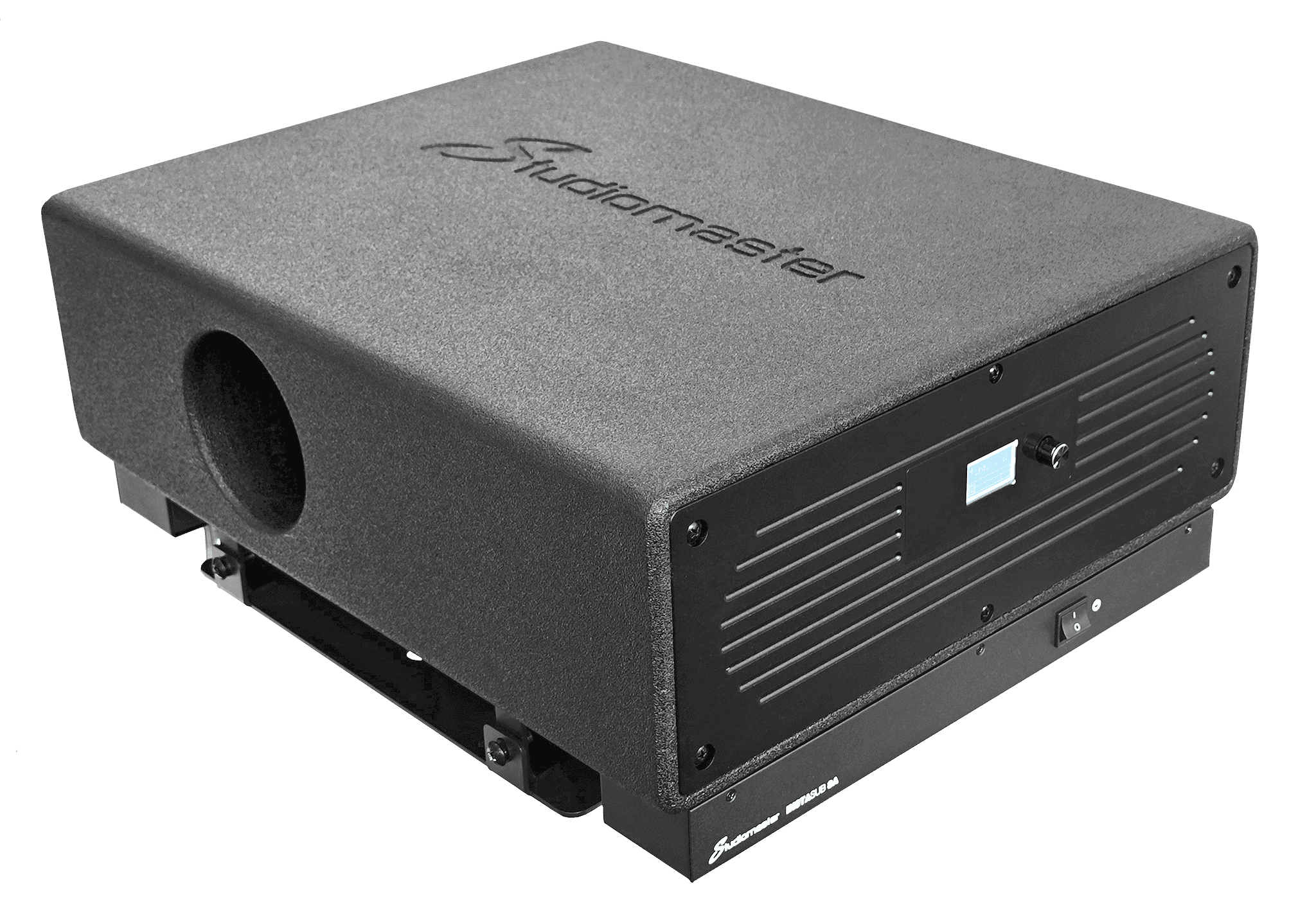

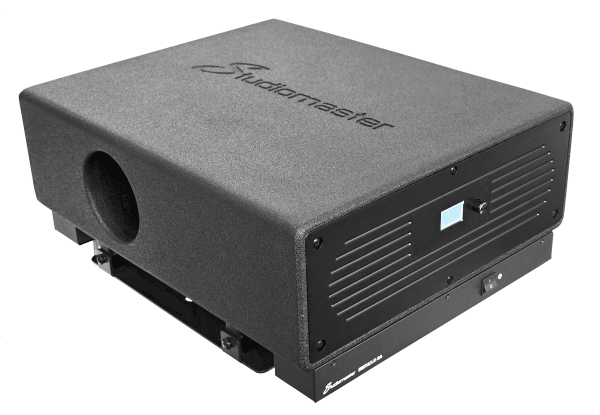

The INSTA SUB8A is an ultra-compact 8 “active subwoofer consisting of a Φ38 8” LF unit.
It can be fixed or hidden under furniture for placement; Built in high-efficiency 3-way 400W/4Ω “Class-D” power amplifier, 1 ultra-low way can be connected in parallel with a passive subwoofer Insta.
Sub8, and the other 2 ways are left and right main speakers that can be connected in parallel with up to 4 (8 Ω) or 8 (16 Ω) speakers in a total of 5 configurations; Built in DSP speaker processing module, with functions such as gain, crossover, equalization, and program memory; Supports Bluetooth 5.0 signal connection, etc
8″ active subwoofer system
3x400W / 8″ customized drive unit

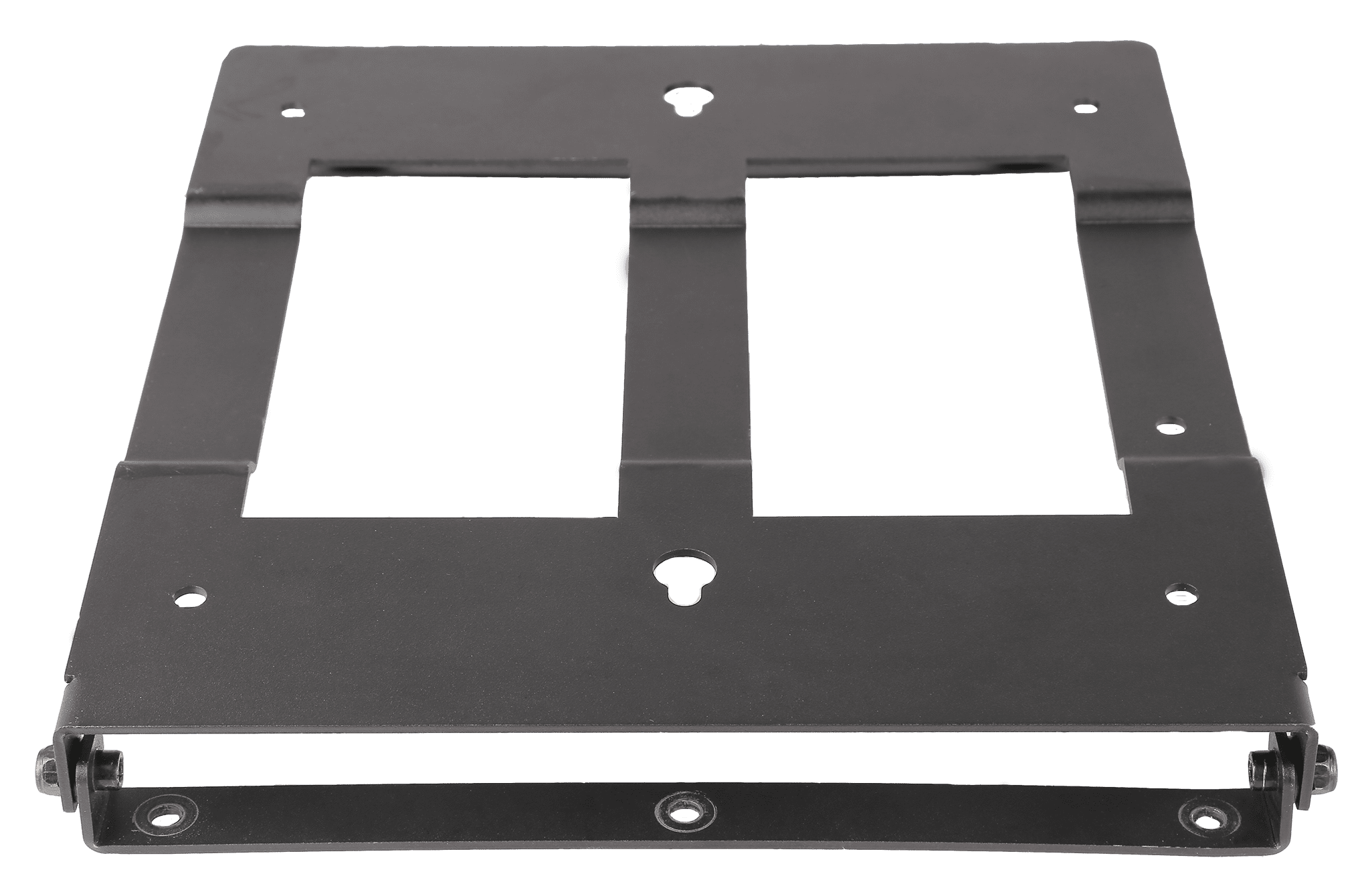

Supports wall and floor installation

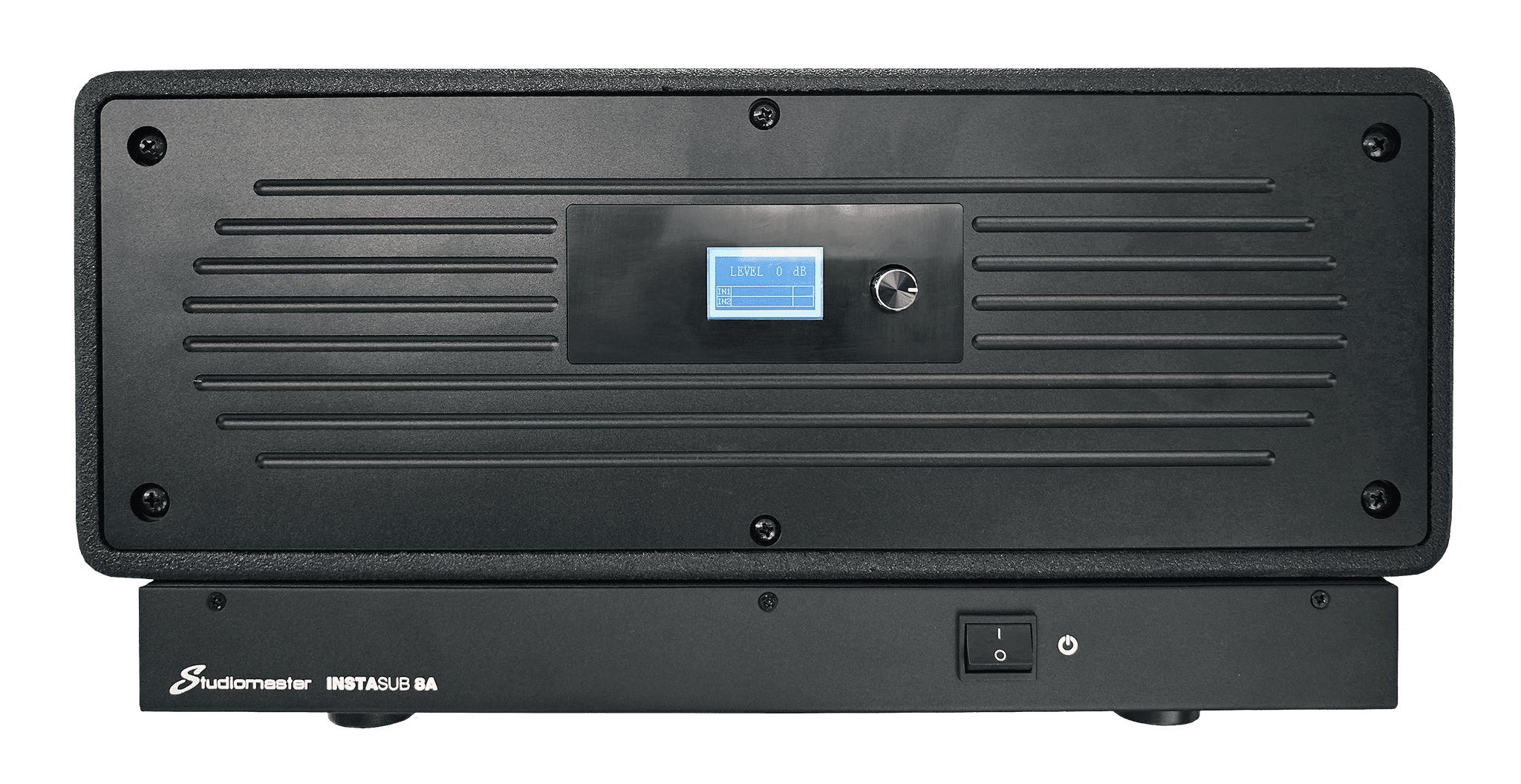

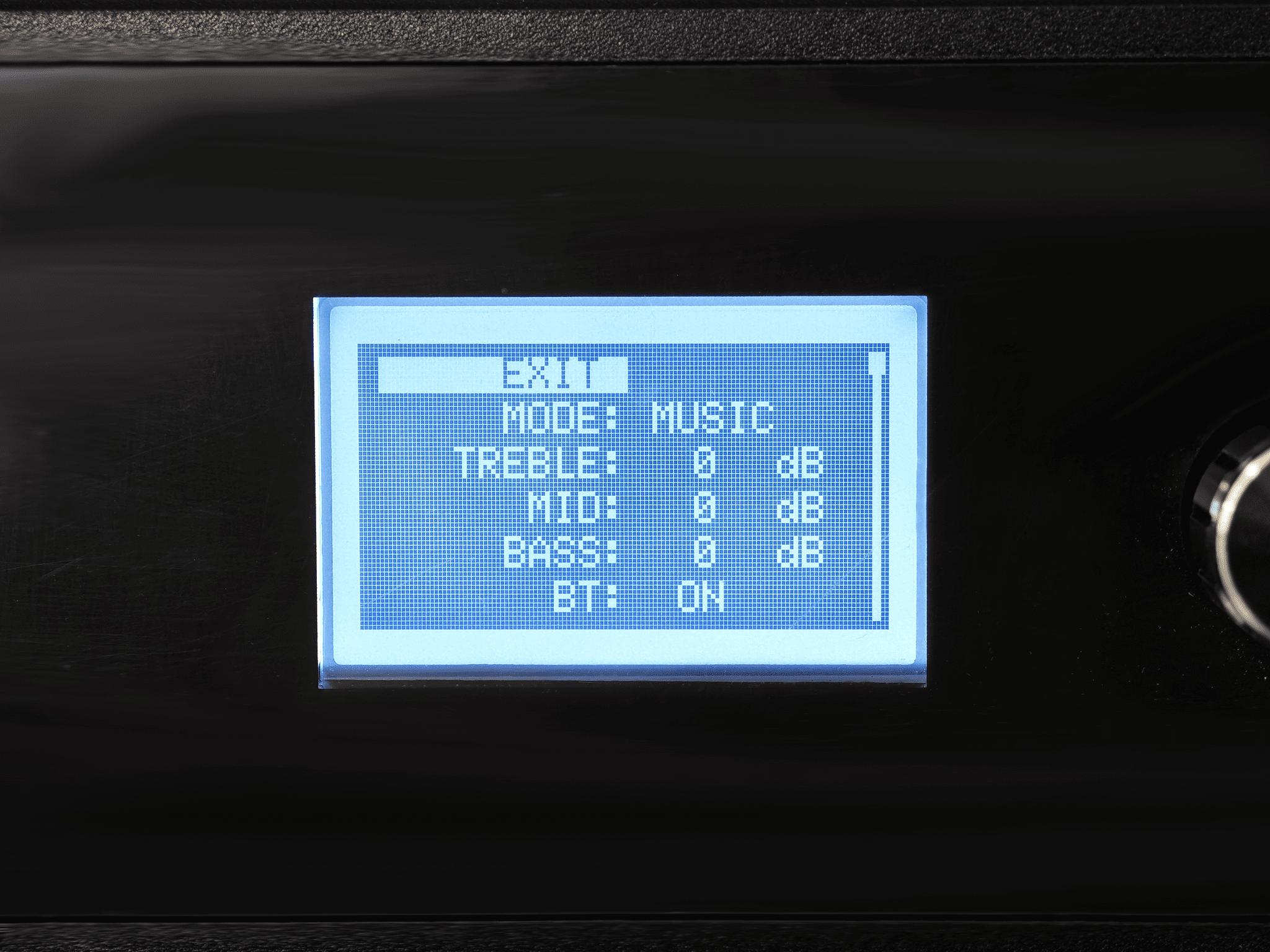

Built-in DSP module

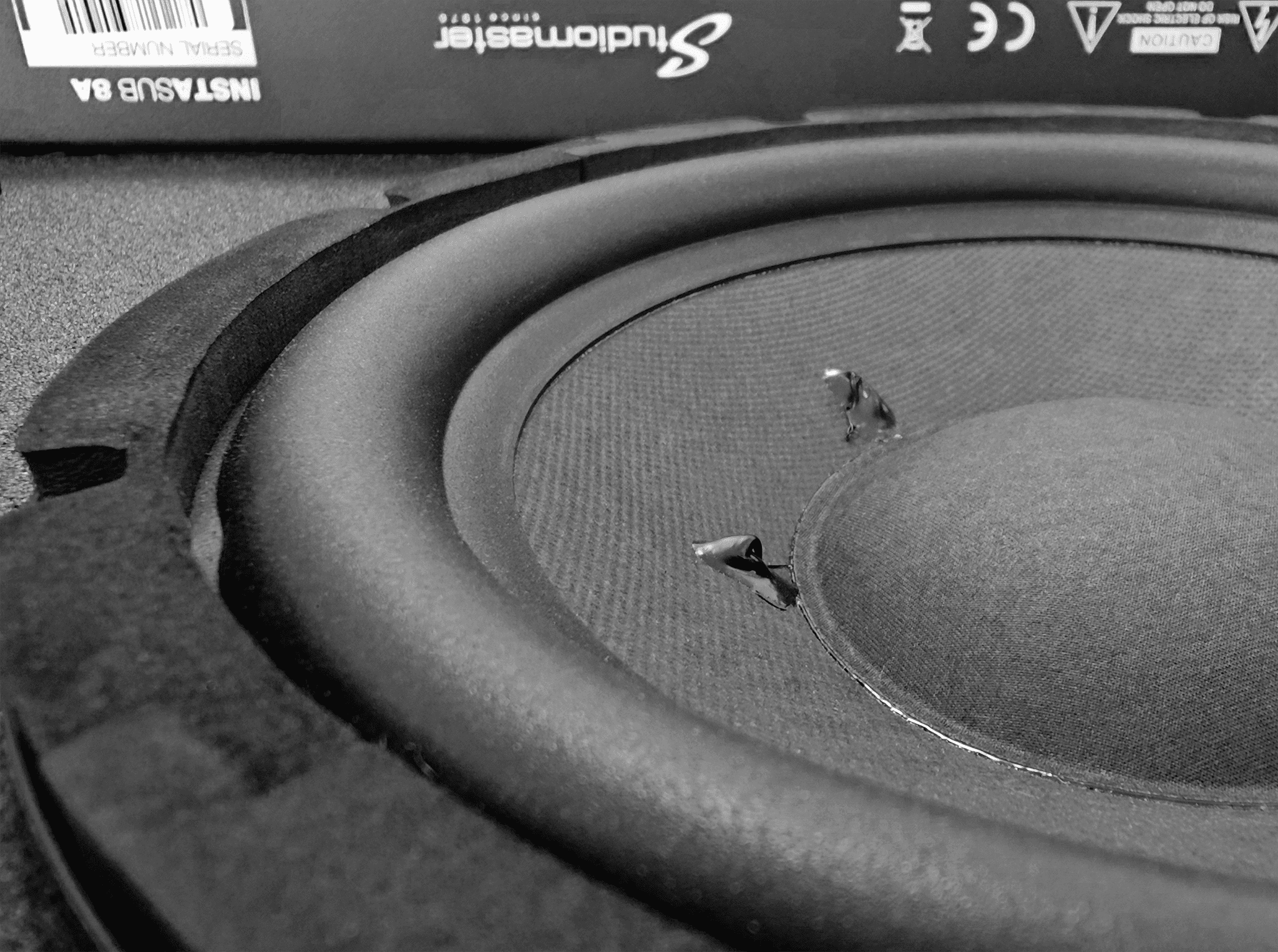

Aluminum modulation ring reduces magnetic distortion
15mm plywood cabinet
Compact and powerful LF speaker design
Black and white available
Bluetooth 5.0
| Type | 8 “active sub |
| Frequency response(-10dB) | 45Hz – 120Hz |
| Rated Power | 200W (RMS) / 800W (peak) |
| Nominal impedance | 8 ohm |
| Max SPL (@1m) | 114dB (peak) |
| Coverage (H × V) | 80° × 80° |

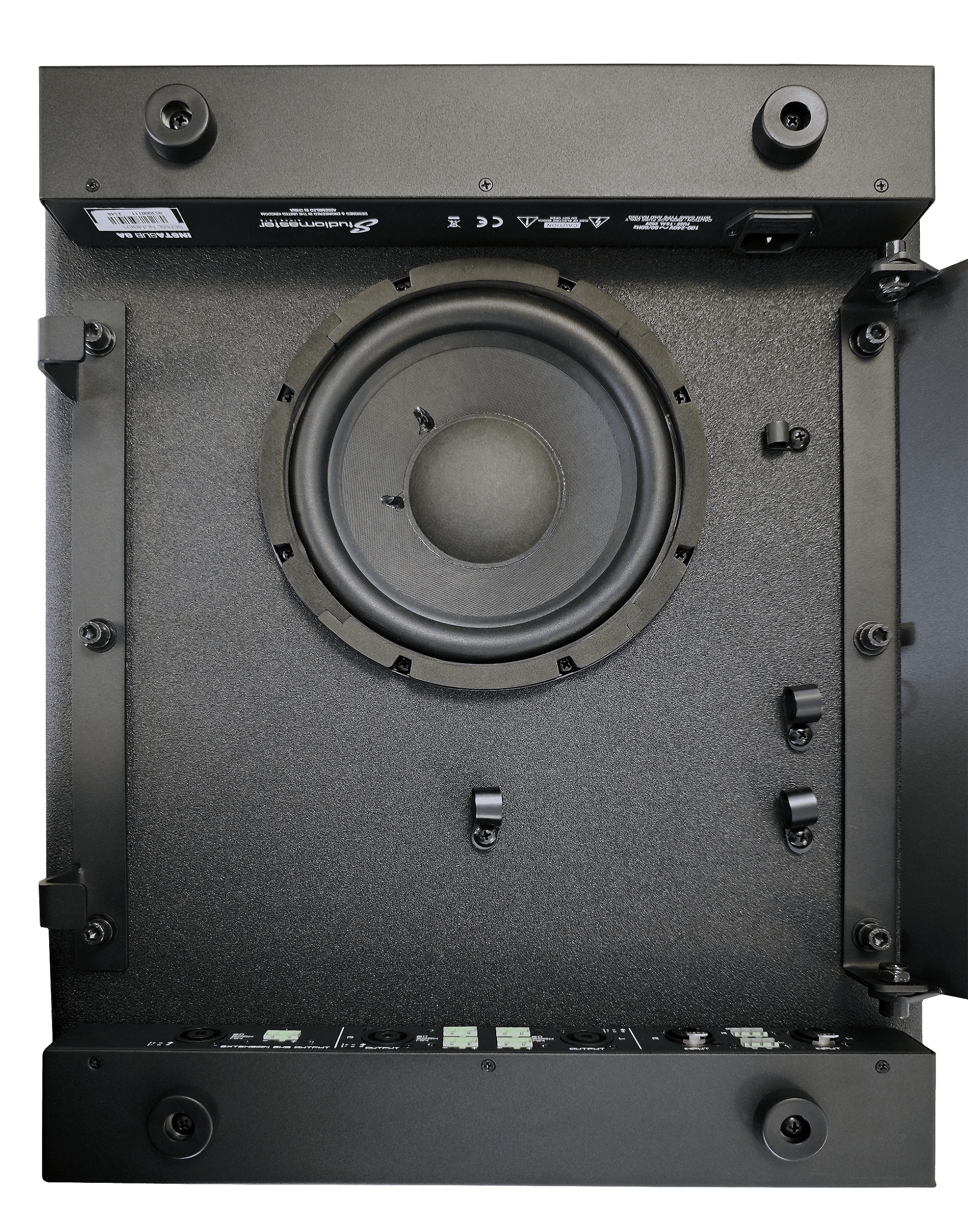

| LF Transducer | 8″ / Φ38mm voice coil / 200W Ferrite magnet |
| Sensitivity(1m@1W) | 85dB |

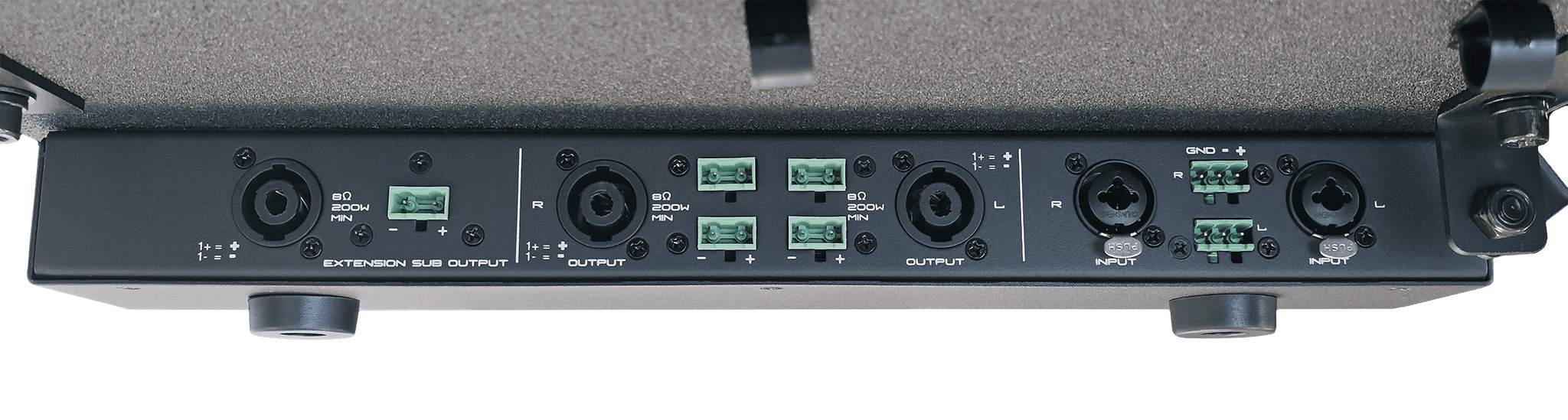

| Connectors | 2 × Binding posts |
| Dimensions (W × H × D) | 515 × 200 × 425mm (including bracket) |
| Net weight | 17kg |
