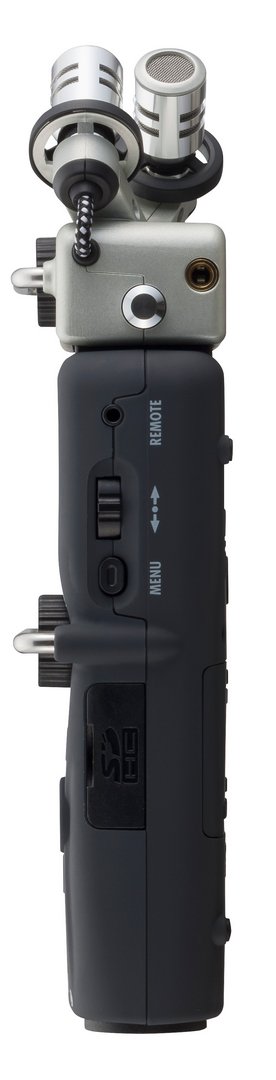

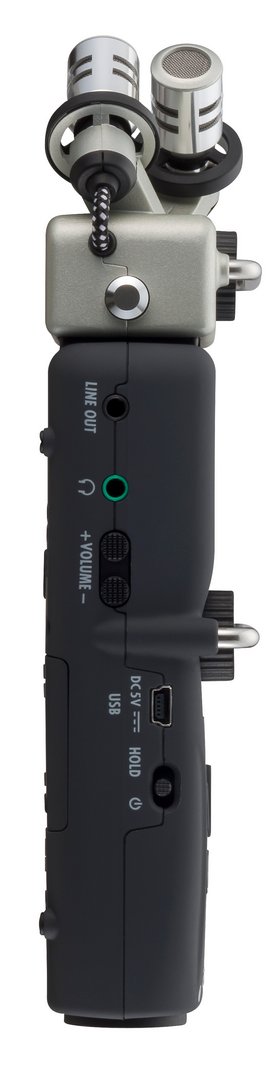

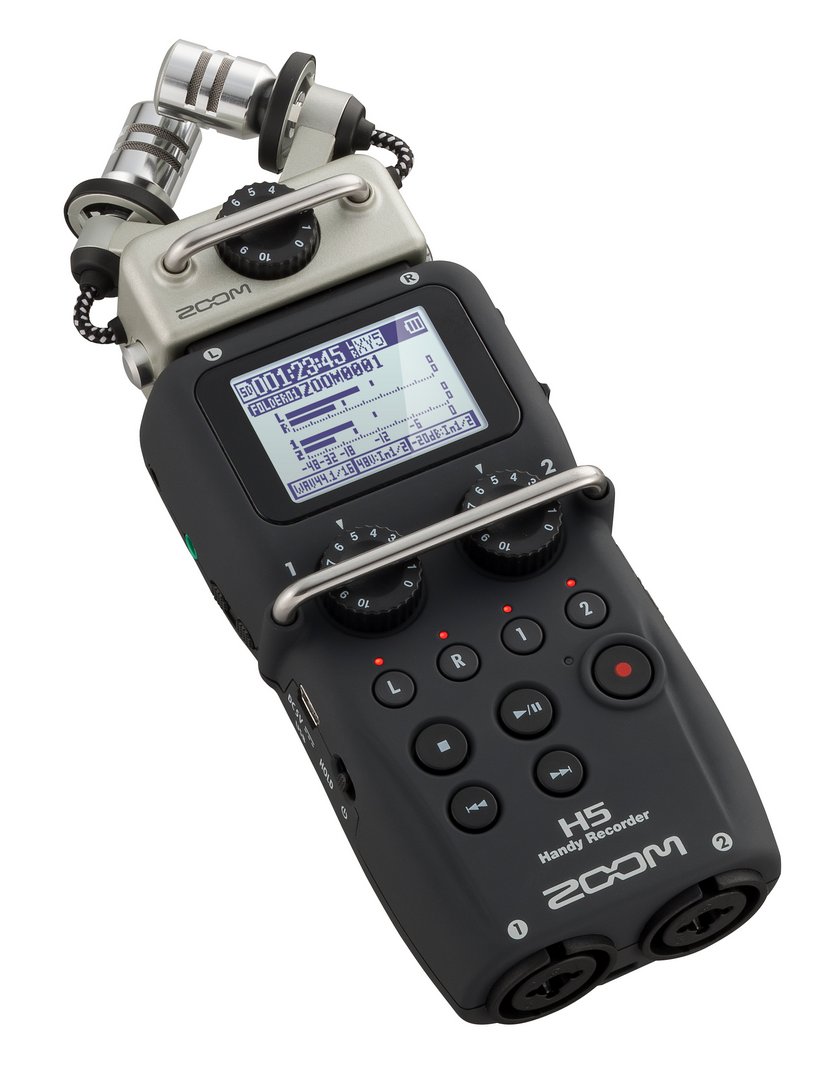

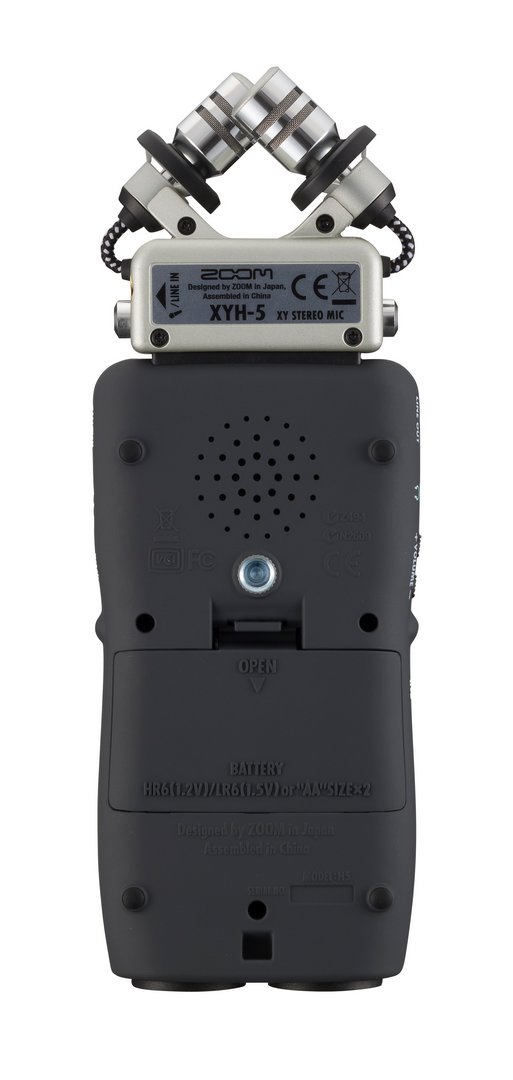

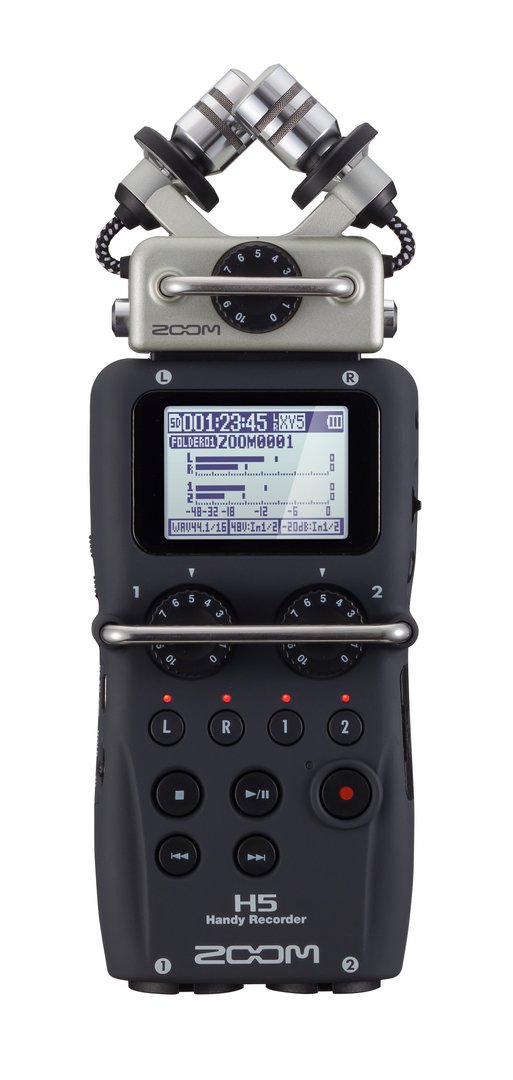

ZOOM H5
Original price was: €295.00.€239.00Current price is: €239.00. (inc. VAT)
Portable Audio Recorder
In stock
Four tracks of simultaneous recording and interchangeable mic capsules make the H5 flexible and powerful enough to meet the evolving needs of today’s creators.

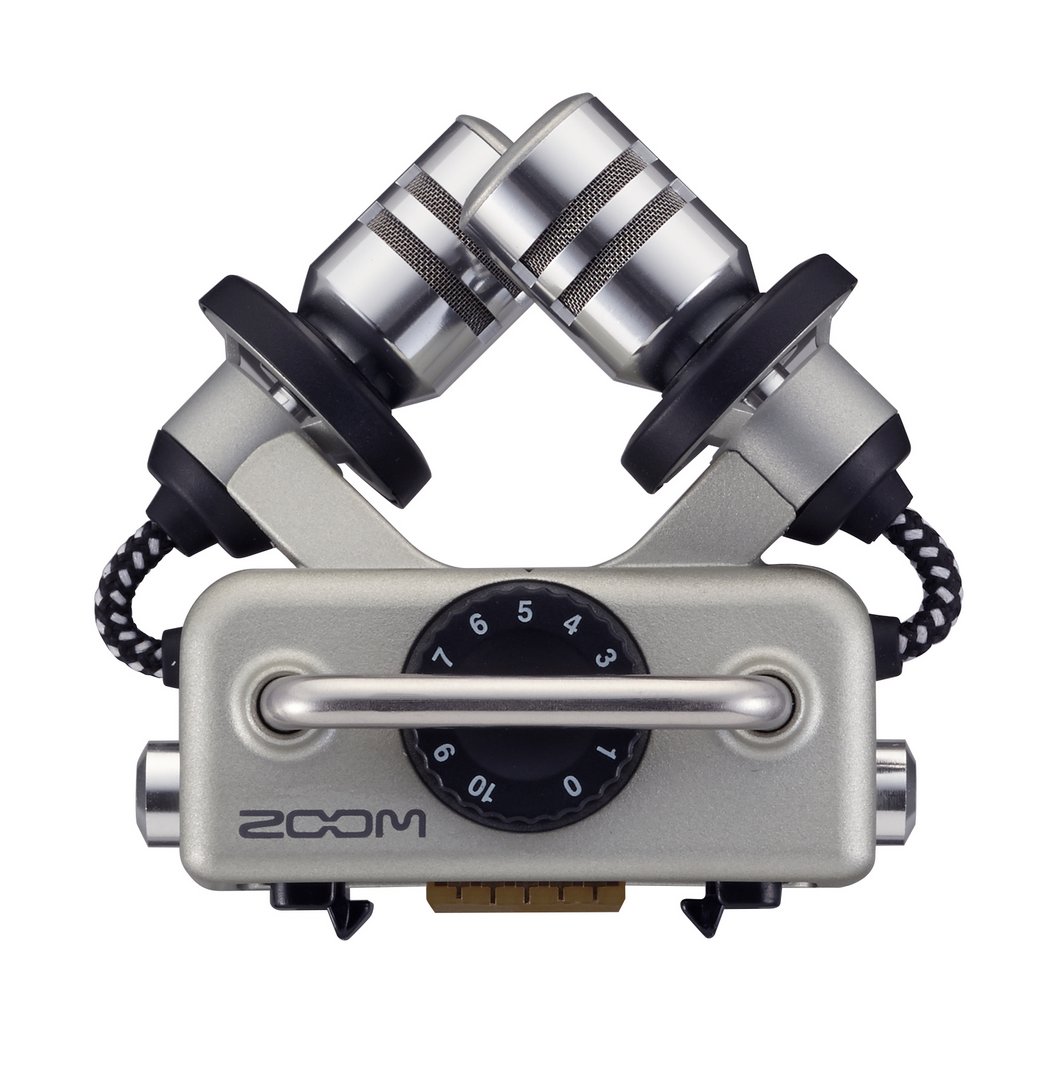

· Includes detachable X/Y capsule (XYH-5) capable of handling 140 dB SPL
· Shock-mounted mics for reduced handling noise
· Compatible with all Zoom input capsules
· Four-track simultaneous recording
· Records directly to SD and SDHC cards up to 32 GB
· Up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
· Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB pad
· Built-in effects, including low-cut filtering, compression, and limiting
· Auto-record, Pre-record, and Backup-record functions mean that you’ll never miss that perfect take· Multichannel and stereo USB audio interface for PC/Mac/iPad with Loop Back function
· Powered by two AA batteries or via USB
· About 10 hours of operation with alkaline batteries
General
RECORDING MEDIA: SD card: 16MB to 2GB , SDHC card: 4GB to 32GB
DISPLAY: Backlit LCD (128 x 64 pixels)
Inputs
INPUTS L/R [XYH-5 X/Y MIC]: Mic type:
Unidirectional
Sensitivity: -45 dB, 1 kHz at 1 Pa
Input gain: -∞ to 52 dB
Max sound pressure input: 140 dB SPL
PHONE OUT : Connector:
1/8″ stereo mini jack
Output Level: 20 mW +20 mW into 32 Ω load
BUILT-IN SPEAKER: 400mw 8 Ω mono
Recording Formats
STEREO MODE: WAV (BWF-compliant)
Sampling frequency:
44.1/48/96 kHz
Bit rate: 16/24 (Stereo)
Maximum simultaneous recording tracks: 2
MP3
Sampling frequency: 44.1kHz
Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps
MULTITRACK MODE: WAV (BWF-compliant)
Sampling frequency: 44.1/48 kHz
Bit rate: 16/24 (Mono/Stereo)
Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)
USB
MASS STORAGE CLASS OPERATION: Class: USB 2.0 High Speed
AUDIO INTERFACE OPERATION: MULTITRACK MODE: Class: USB 2.0 High Speed
Sampling frequency: 44.1/48kHz
Bit rate: 16/24 bit
Inputs / Outputs: 4 / 2
AUDIO INTERFACE OPERATION: STEREO MODE: Class: USB 2.0 Full Speed
Sampling frequency: 44.1/48kHz
Bit rate: 16 bit
Inputs / Outputs: 2 / 2
USB bus powered operation possible
(iPad operation supported in Stereo mode only)
Approximate operation times when using battery power
STEREO FILE MODE:
XY MIC, 44.1KHZ/16-BIT (STEREO X 1) about 10 hours
MULTI FILE MODE:
XY MIC, INPUTS 1 AND 2, 48KHZ/24-BIT (STEREO × 2) about 5 hours
NOTE: THE ABOVE TIMES ARE ESTIMATES.
VIEW MORE
Power Requirements
AA size (LR6) battery x 2
AC adapter: AD-17 (DC5V/1A/USB-type) (optional)
USB bus power
