Targeted Stereo Sound Dome Speaker with Dual-Parabolic Tech, Clear 30″

Original price was: €1,090.00.Current price is: €980.00. (inc. VAT)

SoundTube 30″ Stereo Dual-Parabolic SoundDome Speaker in Clear

Only 1 left in stock

SKU: FP6030-II Category:
Description

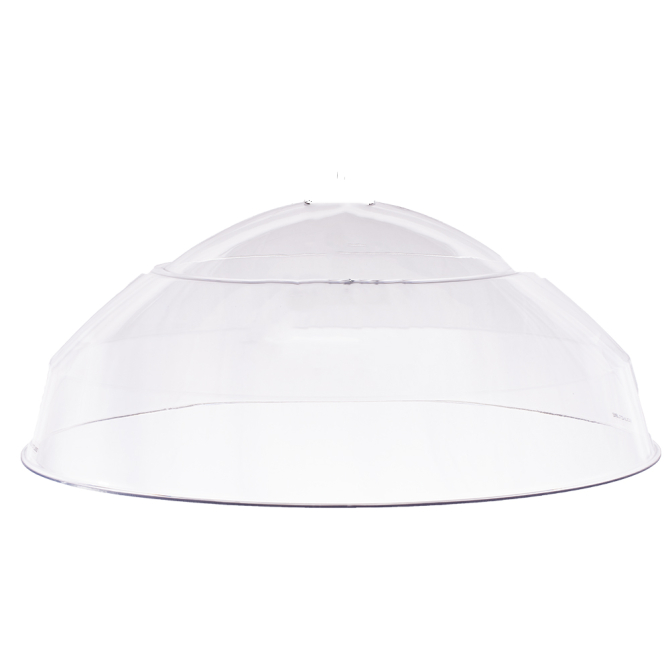

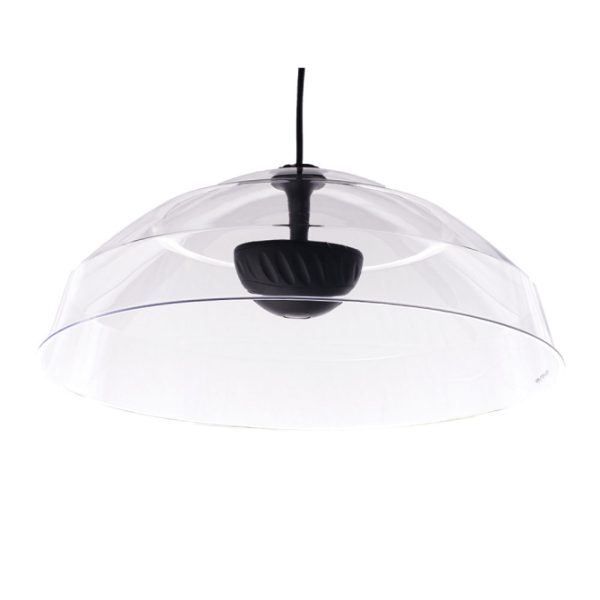

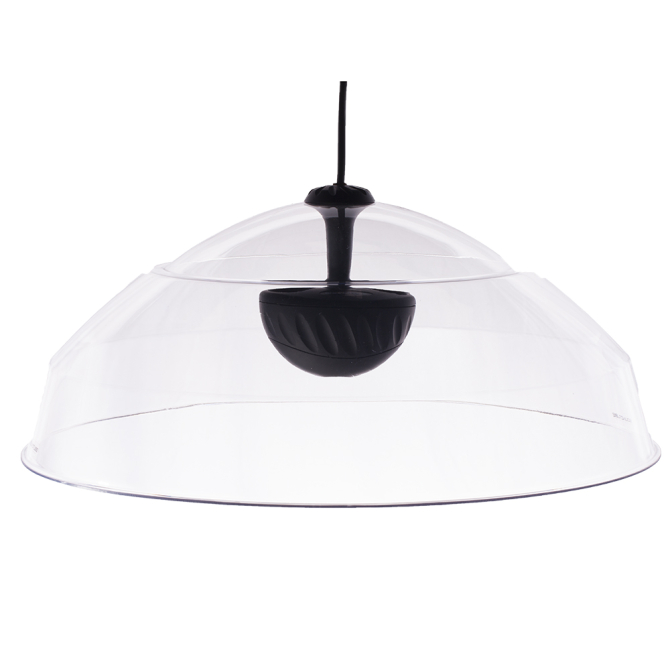

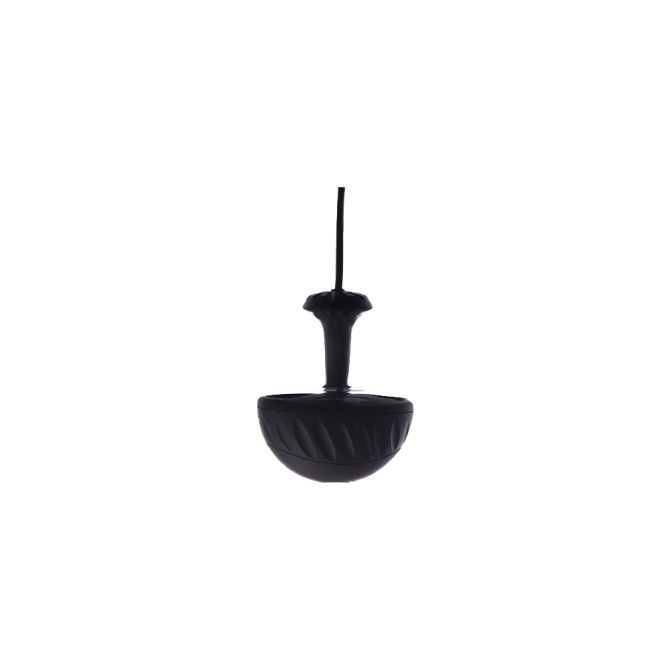

SoundTube FP6030-II Focus Point Speaker in Clear

The FP6030-II delivers targeted audio in a unique package. Features: Patented Dual-Parabolic dispersion control technology provides a targeted audio footprint with true stereo separation. Twin 1.00 in (25 mm) concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging. Patented ZeroReflection™ enclosure technology for accurate sound reproduction. Narrow 45 coverage angle for sharp focus (average 2 – 10 kHz, independently verified). 30.75 in (781.1 mm) custom-molded PETG clear polymer dome for minimal visual impact. User-selectable 350 Hz high-pass filter. Single-point balanced mounting for easy and clean-looking installs. Ships with clear dome, custom colors available. Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable that includes four 16-gauge inputs and a CAT V cable. Optional modules include Motion Sensor (FP-Motion), LED light (FP-Light), optional 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1530). Optional electronic accessories include 10 and 20-watt transformers with junction box for 25, 70.7, and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.
Additional optional accessories include: wall bracket, sound sleeves and rigid mount adaptor. Ships as individual unit, bulk shipping available.
Specifications
Color Clear
UPC 752830451988
Manufacturer SoundTube
Manufacturer’s Category FP Focus Point Parabolic Series
Height 13.1 in / 332.7 mm
Width/Diameter 30.75 in / 781.1 mm
Shipping Weight 11.02 lbs / 5 kg
Certifications CE, RoHS
Enclosure Properties PETG, Polystyrene, Sealed
Included Accessories Hanging Hardware, Mounting Hardware
Optional Accessories Motion Kit (FP-MOTION MODULE)|Light Kit (FP-LIGHT MODULE)|Wall Mount Bracket (AC-WB4)|White Sound Sleeve (AC-SFP20-WH)|Black Sound Sleeve (AC-SFP20-BK)|Rigid Mount Adaptor (AC-FP6-RMA)|10W Transformer J-Box (AC-JB10-XFMR)|20W Transformer J-Box (AC-JB20-XFMR)
TAA Compliant (Trade America) No
BAA Compliant (Made in USA) No
Coverage Angle (±6dB @ 2kHz) 55°
Crossover Frequency 75 Hz or 350 Hz switchable
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz) 23.4 and 27.5
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz) 12.4dB and 14.4dB
Frequency Response (± 10 dB) 130 Hz – 22 kHz (200 Hz with high-pass filter)
Frequency Response (± 3 dB) 170 Hz – 22 kHz (300 Hz with high-pass filter)
Grille Properties High-Impact Polystyrene
Low Frequency Voice Coil 0.81 in / 20.5 mm
Max. Continuous Power RMS 15W
Max. Program Power 30 W
Minimum Impedance (Ω Ohms) 5.4 Ω
Network Type: High Pass 6 dB per octave 1st order
Nominal Impedance (Ω Ohms) 8 Ω
Fullrange Driver (2) 1″ Aluminum High Excursion
Sensitivity dB @ 1W/1M 75 dB
Sensitivity dB @ 2.83V/1M 75 dB
Tap Selector Rotary Switch J-Box
Transformer Options 25 / 70.7 / 100 V, 8 Ohm direct
Transformer Taps Max. Setting (25V/70.7V/100V) 1.25W/10W/30W
