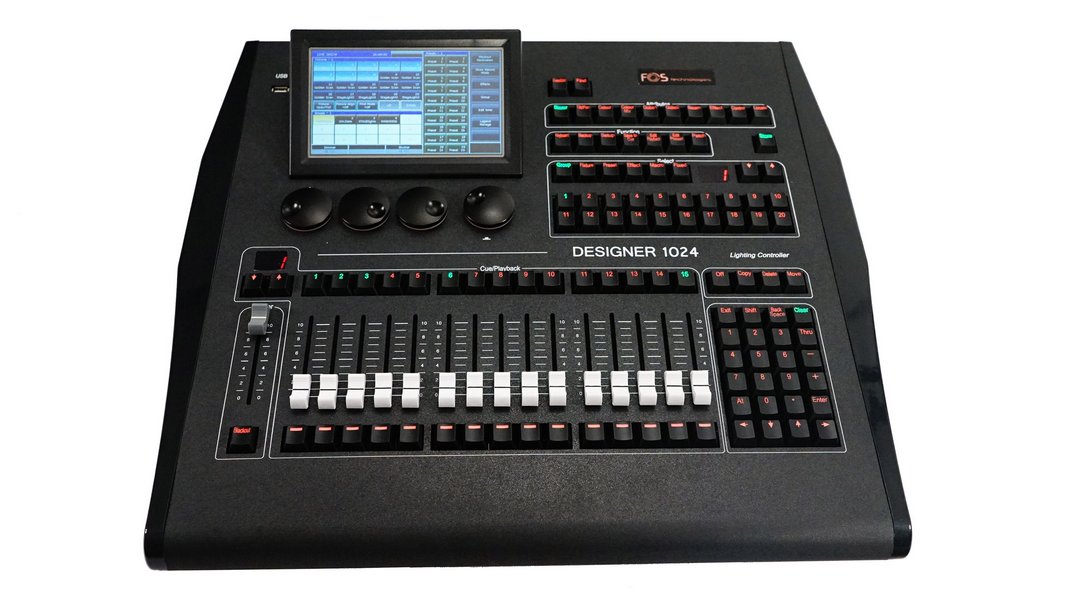

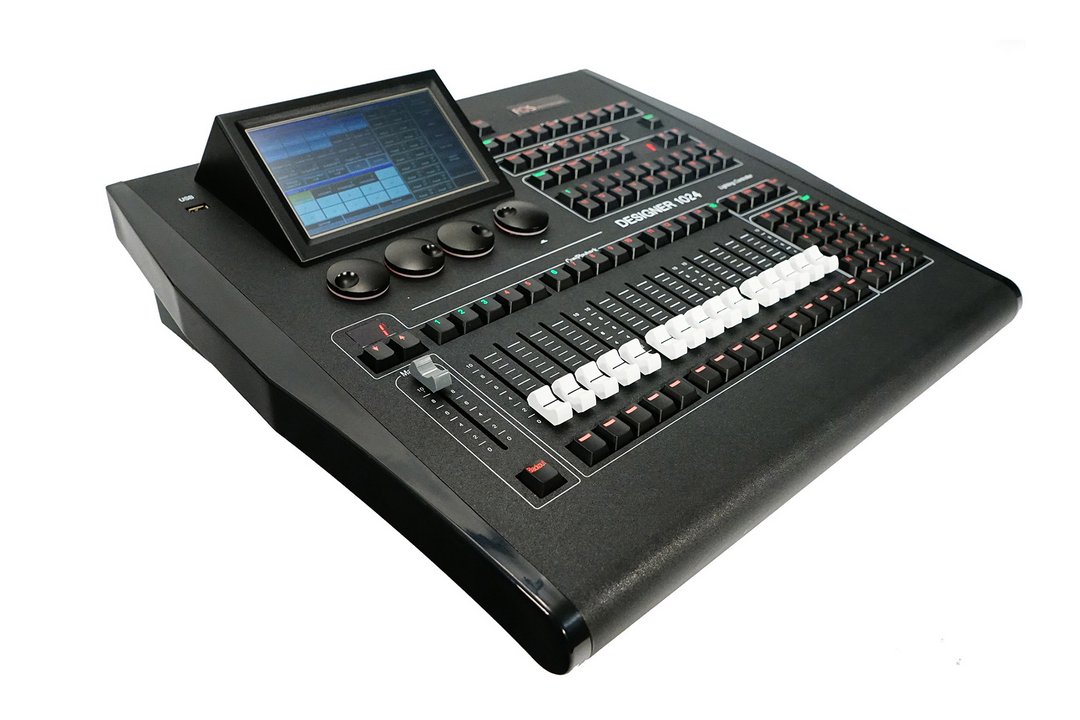

FOS DESIGNER 1024

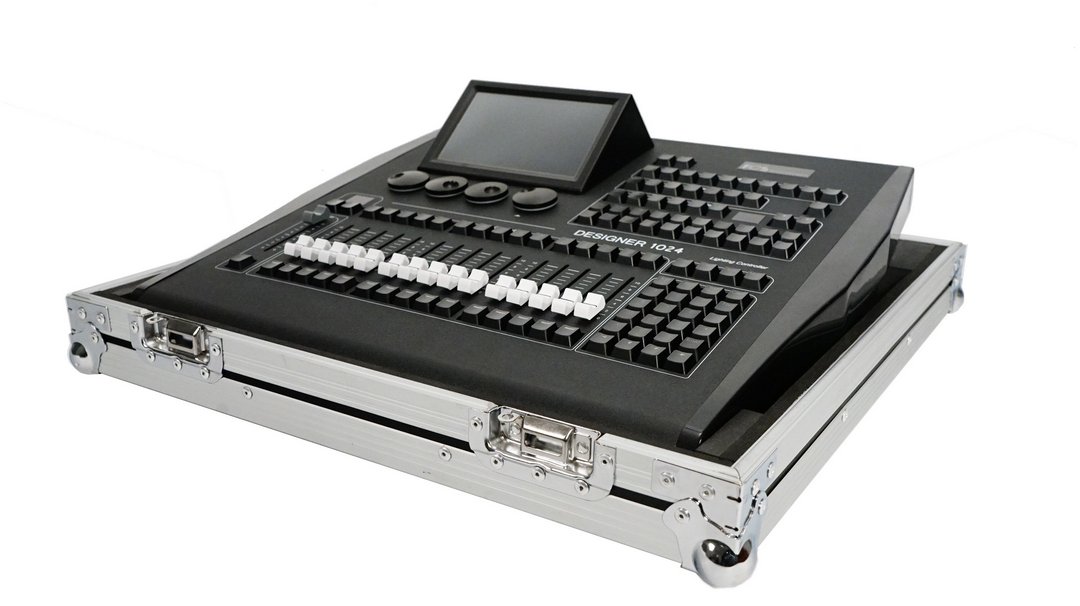

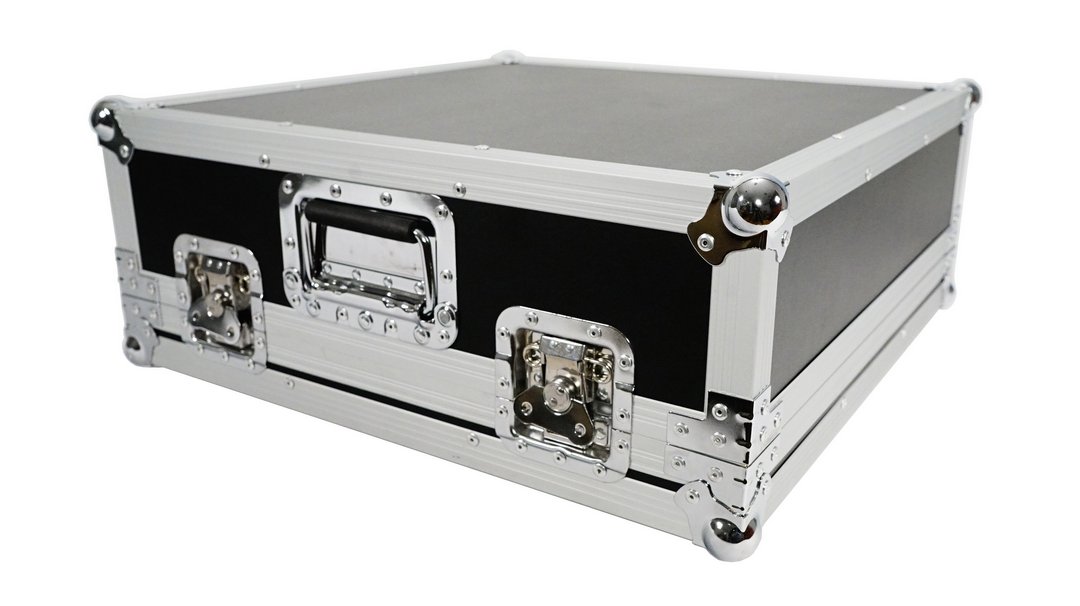

Lighting Controller , 1024 channels with 2 individual optical isolated DMX outputs and Net-work interface, 7″ TFT-LCD touch screen for operating, 3 colour backlite keyboard, R20 library files , USB interface , flight case included , 10kg
·Technical Specifications Channels / Universes: 1024 / 2, in optical isolated outputs with 3 pin XLRArtNET output7″ TFT – LCD touch screenBacklighted keys with different combinations for highlghtKey backlighting colors: Red, Green, Yellow4 Optical decoders for fixture attribute control400 different fixtures maximum patch600 playbacks maximum programmable, in to 15 faders x40 pages15 playbacks can be simultaneously active400 Groups, 400 Presets, 400 users shape effects & 400 macro shows maximumMacro shows can be triggered by MIDIColor mix palette for fixtures with RGB and CMY mixing systemShape generator with various patterns and adjustable parametersMore than 8000 fixtures in the library, with library editor and fixture personallity import via the USB portYou can back up your shows in the internal hard disc, or in a USB stickMIDI In and Out plugs.
