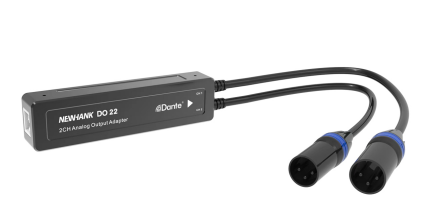

Dante to XLR Audio Cable: 2-Channel Analog Conversion
Original price was: €285.00.€255.00Current price is: €255.00. (inc. VAT)
Dante to 2 channel analog XLR conversion cable
Out of stock
Compact design, easy to use, supports hot-plug
Key Features
Built-in 2 input or 2 output audio channels
Easily and freely convert between analog audio signal and Dante digital audio signal
Extends audio, control, Ethernet, and power over a single affordable network cable
Replaces multiple analog or multi-core cables with only a network cable, cost-effective, versatile
•
DI 22/DO 22 supports PoE,and conforms to ieee 802.3af line power supply function
DU 22 supports USB power supply
Built-in lightning & surge protection
Extends uncompressed high-quality audio signal with near-zero latency
Transmits high quality 2-channel audio safely and reliably
Perfectly supports Dante software, the network and audio routing can be easily expanded and reconfigured with just a few mouse clicks
Channel:
DI 22 2ch dante Inputs, 2ch analog output
DO 22 2ch analog Inputs, 2ch dante output
Specifications
Sampling rates: 48kHz
Supported network speed: 100/1000Mpbs Ethernet
Bit depth: 24 bit
Latency: 1ms(default)
Ethernet connection: 100BASE-TX(Support PoE)
Input impedance: 20 KΩ (DI22)
Output impedance: 100 Ω (DO22)
Input level(balanced) : Max.18 dBu(DI22)
Output level(balanced) : Max.18 dBu(DO22)
Frequency response: 20 – 20 kHz，± 0.5dB
Dynamic range: > 100 dB
SNR(Signal to NoiseRatio): > 100 dB
THD + N: < 0.01%@4 dBu
Floor Noise: -90dBu
Power supply: PoE
Power consumption: 2 W
