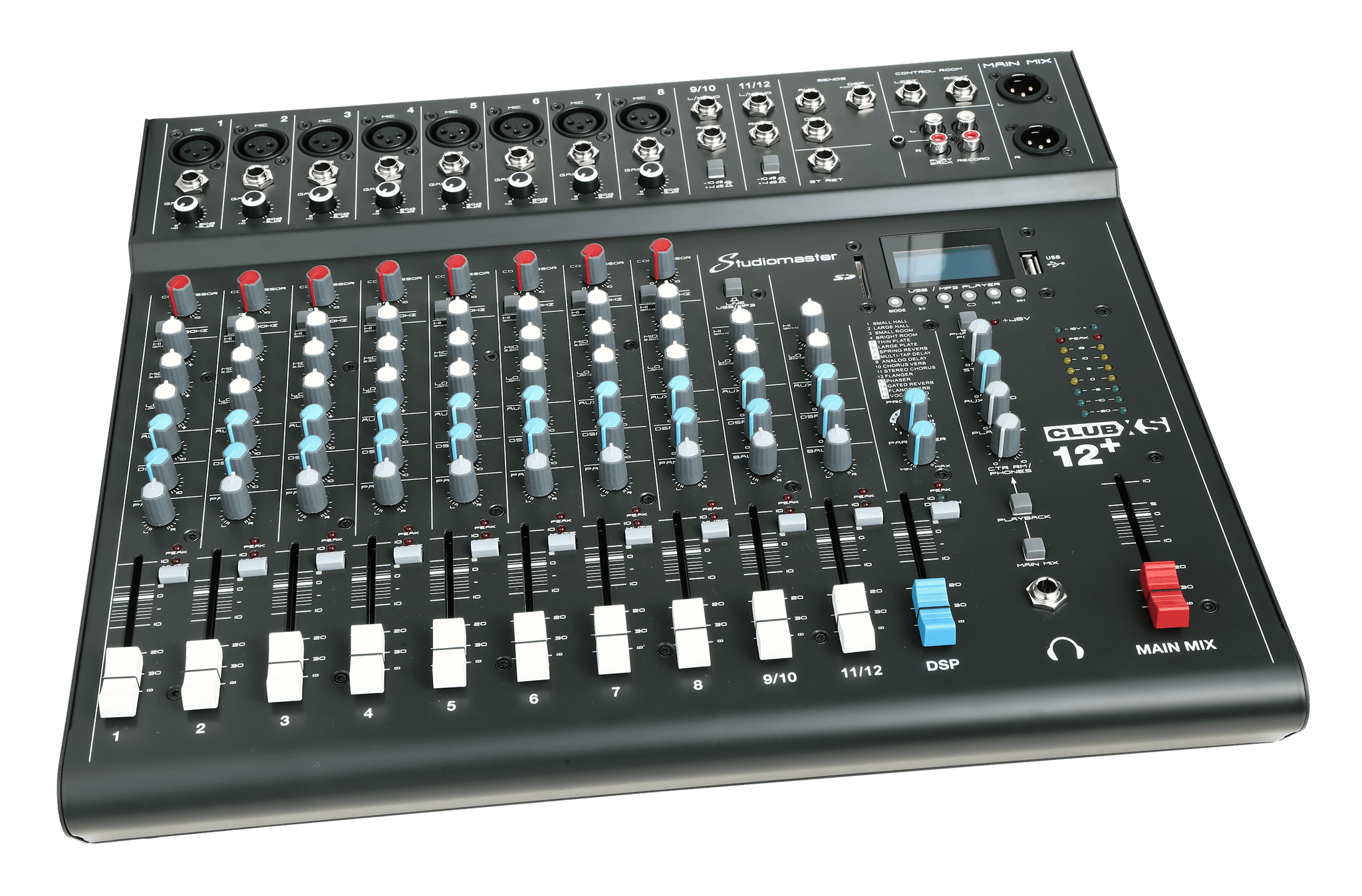

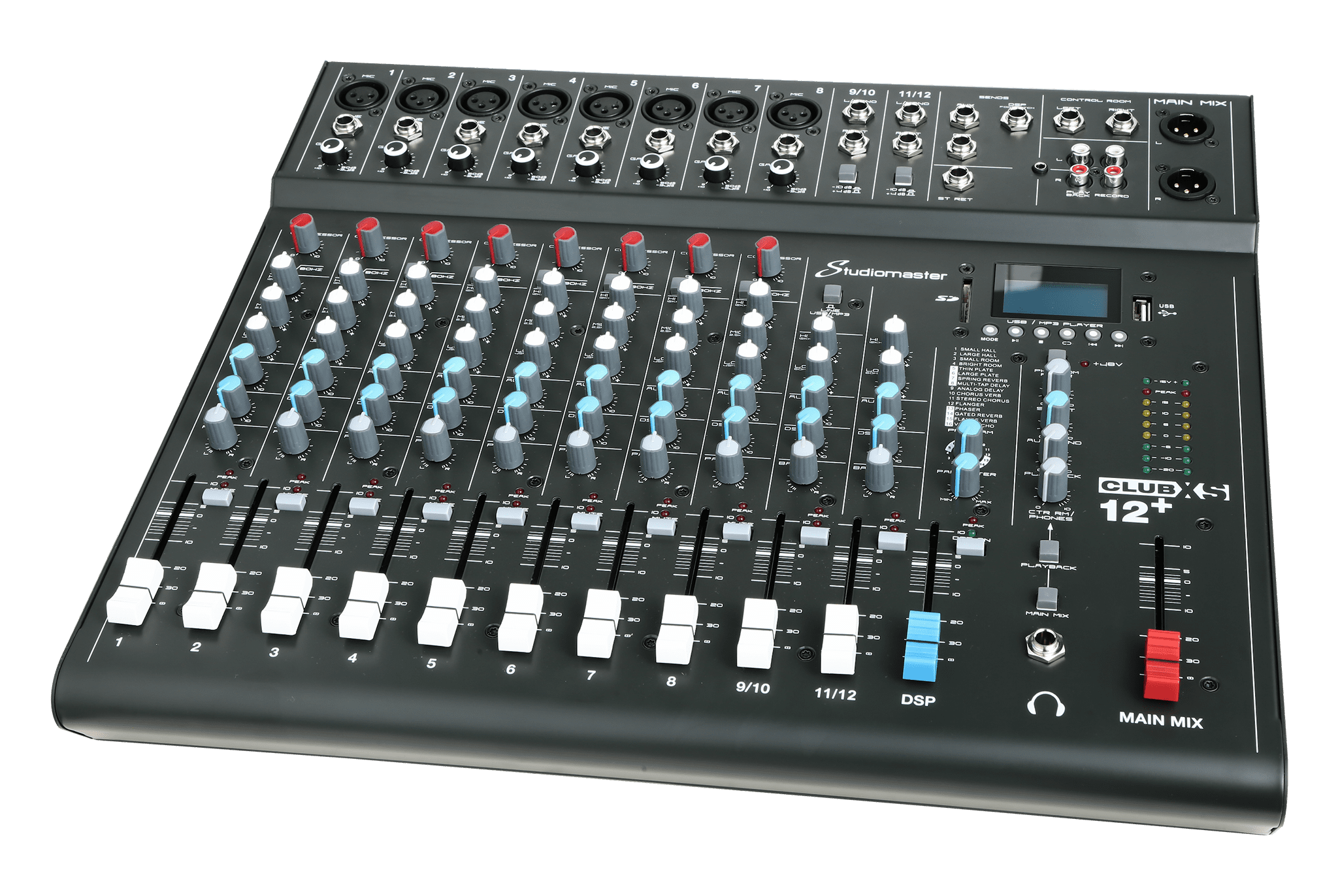

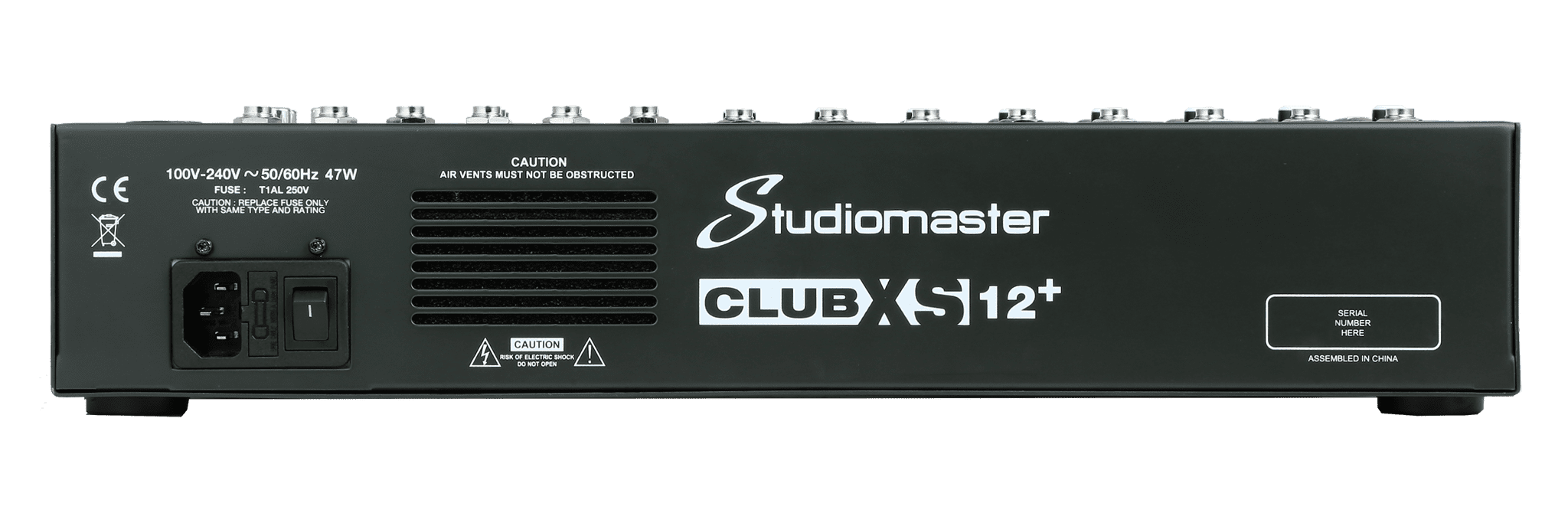

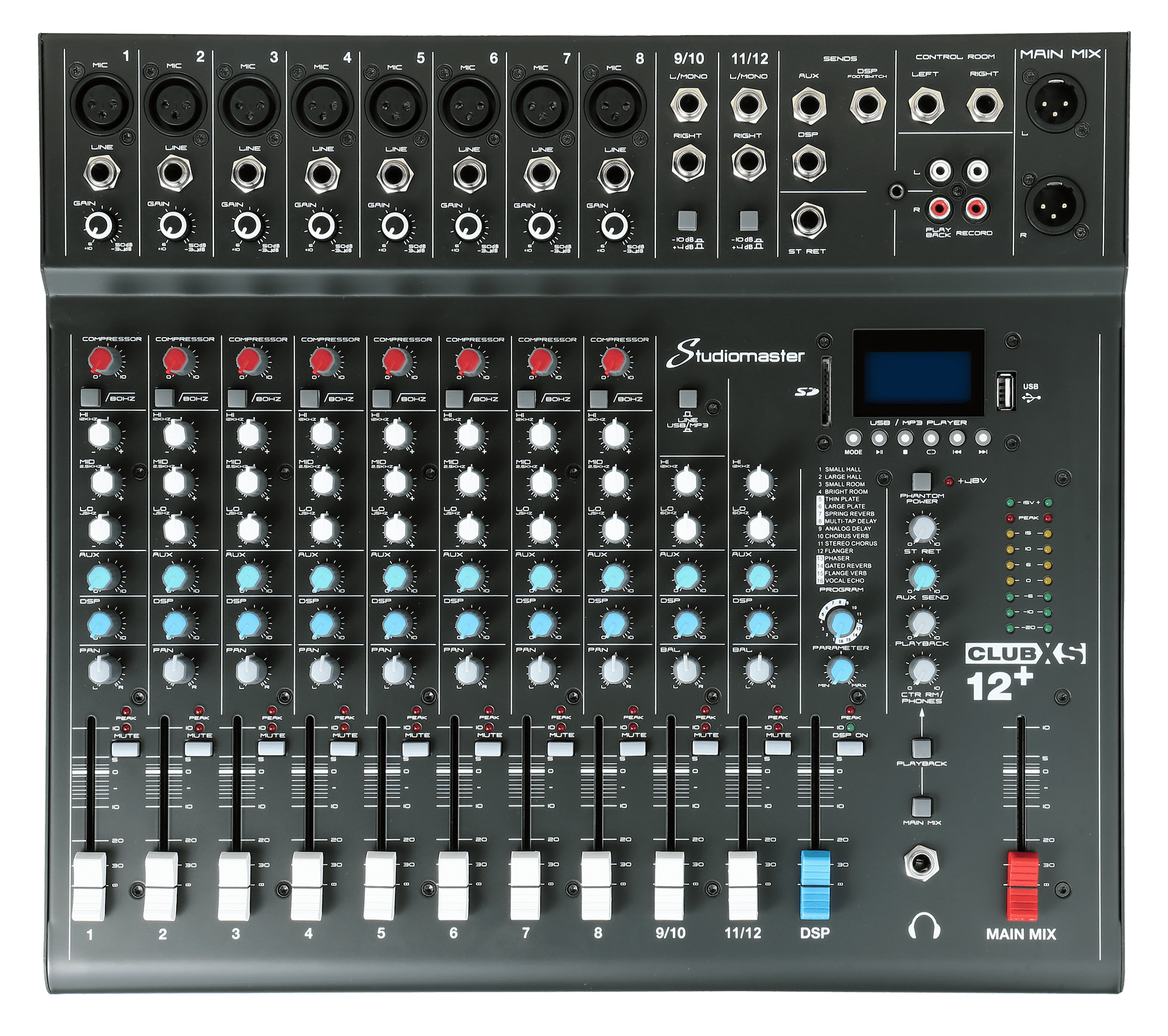

STM Mixer 8 Mic Channels + 2 Stereo Input channels MP3/USB/SD Audio playback
Out of stock
Description
The Studiomaster CLUBXS+ series are a range of comprehensive and affordable compact, hard wearing mixing consoles. With all the features required for live mixing or stereo recording an event, duo or band whether at home, in the rehearsal rooms or out at an event.
The compact range is available in 5 to 16 input versions with 19” rack adapters or dedicated 19” rack mounting models to fulful virtually any application.
Features
12 inputs
8 mic channels
2 stereo channels
Specifications
| Inputs | 12 | |
| Mic Input channels | 8 | |
| Stereo Input channels | 2 | |
| Gain | MIN ~ MAX | |
| Mic | 6dB ~ +50dB | |
| Line | +10dB ~ -34dB | |
| EIN | -100dB | |
| Frequency response | ||
| Mic Channel | 10Hz~20kHz+1/-3 | |
| THD Mic Channel | 0.1% | |
| Signal to noise ratio | 80dB | |
| Output Levels | MAX +26(BAL) / MAX +20(UNBAL) | |
| Channel EQ | ||
| Hi | 12kHz | |
| Mid | 2.5kHz | |
| Lo | 45Hz | |
| Lo Cut | 80Hz | |
| MP3/USB/SD Audio playback | YES | |
| USB/SD Audio recording | YES | |
| DSP Effects | YES | |
| Power requirements | 100V – 240V ~ | |
| Dimension (W x H x D) mm | 415 x 80 x 365mm | |
| Weight | 5.5kg | |
