Powerful Passive Line Array Column – 240 W, IP55, EN54-24
Original price was: €950.00.€800.00Current price is: €800.00. (inc. VAT)
Passive Line Array Column – 8×3” – 240Wrms – 110°H x 15°V/40°V – IP 55 – EN54-24 – Black
Out of stock

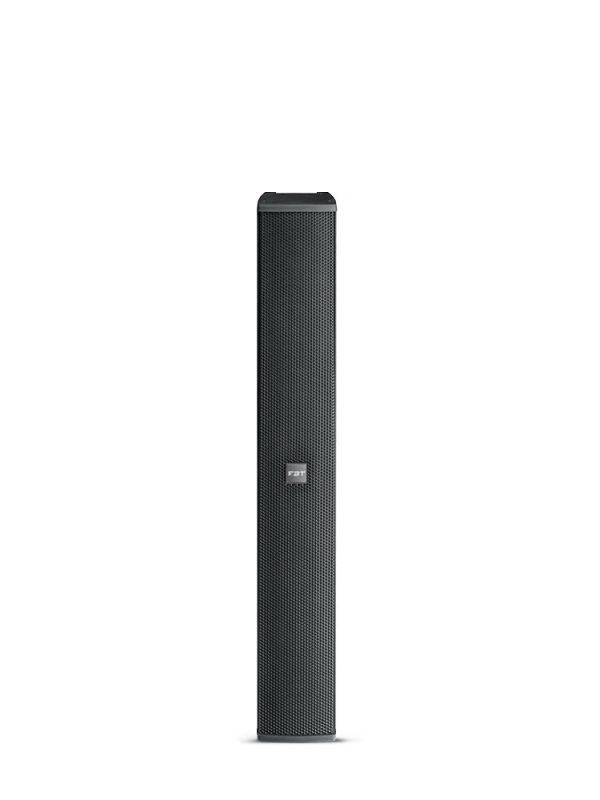

FBT CLA 803TB IP55, EN54-24 Column Line Array 240W – 119 / 122dB SPL
Bringing new coverage options to the installed sound market, the new VERTUS CLA (Column Line Array) range boastsEN54-24 certification and an IP55 rating, the range has been created to add discreet but powerful sound reinforcement in even the most challenging of projects, including the ability to select dispersion angles depending on the projects requirements.Suited to both indoor and outdoor use, the VERTUS CLA range comprises two models: the VERTUS CLA 803, with eight 3 full range woofers, and the CLA 403, with four 3″ full range woofers. Both versions have the same sleek, lightweight and durable, powder-coated aluminium housing. Completely dustproof and waterproof, the enclosures grille is covered with a special hydrophobic fabric to ensure absolute rejection of all atmospheric agents. Full EN54-24 certification also means both columns can be used for emergency and evacuation applications in the event of a fire, all VERTUS CLA columns are equipped with a ceramic terminal block and thermal fuse.
·Passive column array
·8 x 3” full-range custom woofers with 0.7” voice-coils
·Frequency response from 140Hz to 20KHz
·Vertical dispersion angle selector: 110° H x 15° V (NARROW), 110° H x 40° V (WIDE)
·Ceramic screw-in connector with thermal fuse
100V / 120W line transformer with power selector (excludable)
·Extruded aluminum cabinet with powder coating
Grille with hydrophobic fabric
Wide availability of accessories for installation
Multiple CLA 803 and CLA 403 columns can be linked to increased SPL and coverage
IP55 rating means suitable for outdoor installation
EN54-24 certification means suitable for emergency and evacuation systems
Ideal for fixed installations in reverberant environments where requiring heightened intelligibility of both music and voice
Configuration: 1 Way
Frequency response: 140Hz – 20kHz -6dB
Low frequency woofer: 8 x 3″ – 0.75″ Voice Coil
Net Dimension (WxHxD): 100 x 704 x 125 mm
Net Weight: 4.7 KG
Transport Dimension (WxHxD): 140 x 745 x 165 mm
Transport Weight: 6.2 KG
Recommended Amplifier: 240 W RMS
Long term power: 120 W
Short term power: 480 W
Recommended HP filter: 130Hz -24dB Oct
Maximum SPL continuous/peak: 119 / 122 dB
Nominal Impedance: 8 Ohm
Sensitivity (@1W/1m): 95 dB
Dispersion (H x V): 110 Degrees x 15 Degrees (Narrow Setting) / 110 Degrees x 40 Degrees (Wide Setting)
Input connectors: Ceramic Terminal Block
