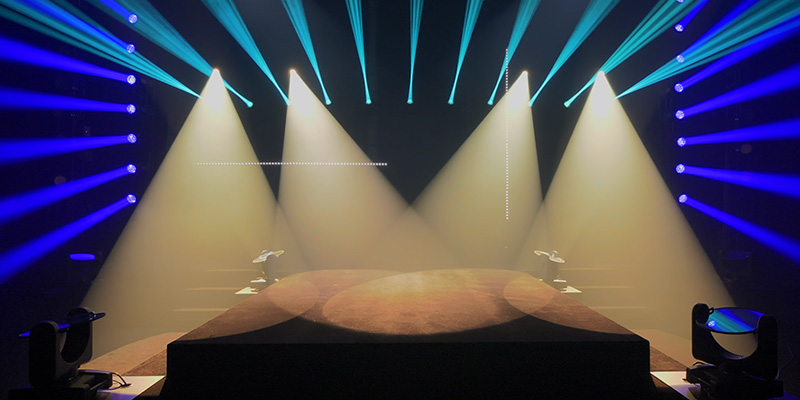

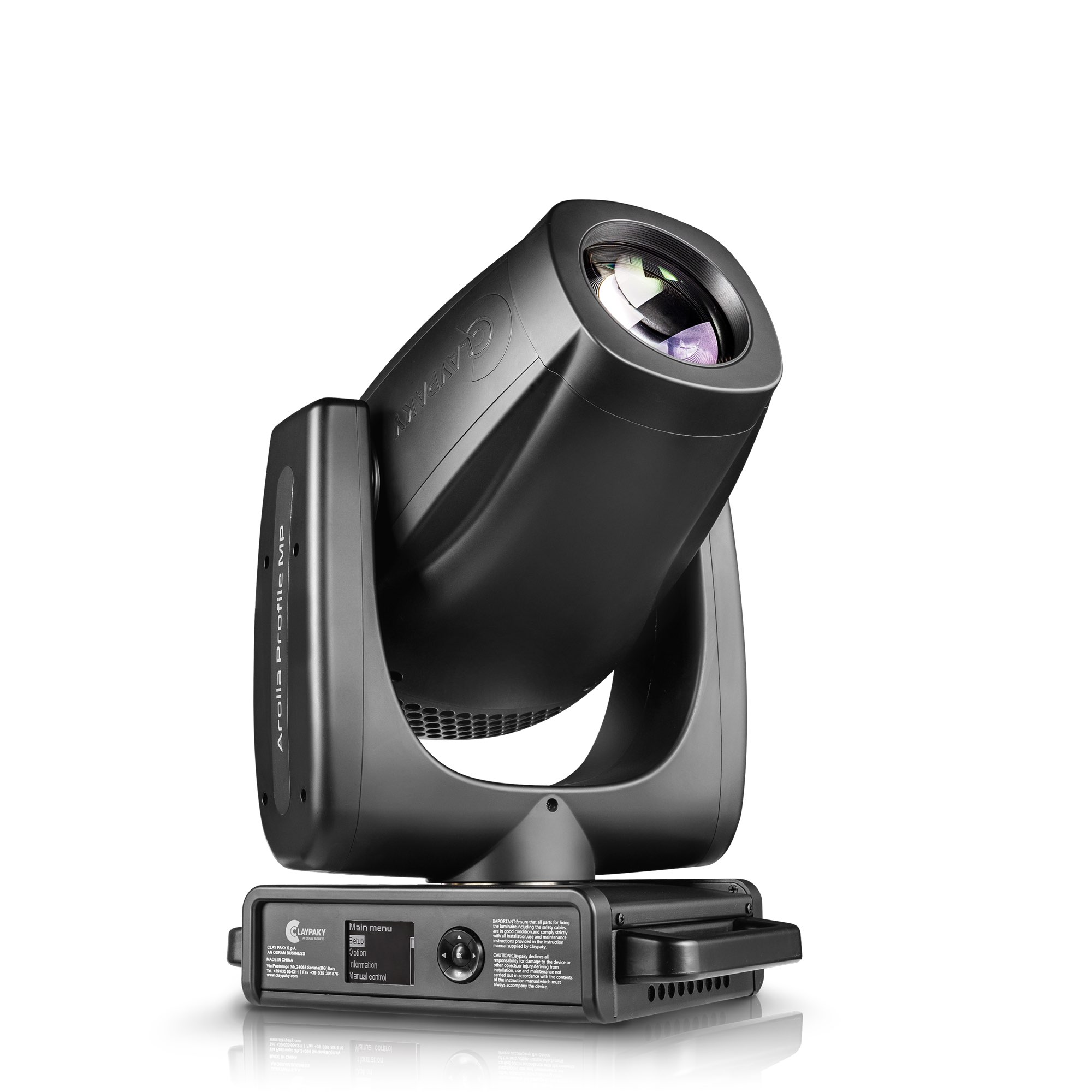

The Arolla Profile MP is the smallest and lightest moving head fixture in its class. While small in stature, it delivers powerful light output with its 470-watt white LED engine (at over 22,000 lumens output) and is full of the features you would expect in a much larger, more expensive luminaire. The eSWAP is a unique feature of this series, providing interchangeability of the framing assembly of the profile version with the gobo module from the spot model. These modules can be moved from their fixture to the other version. The fixture’s electronics immediately recognize and configure the fixture to operate with the module, so users do not have to change the menu system.

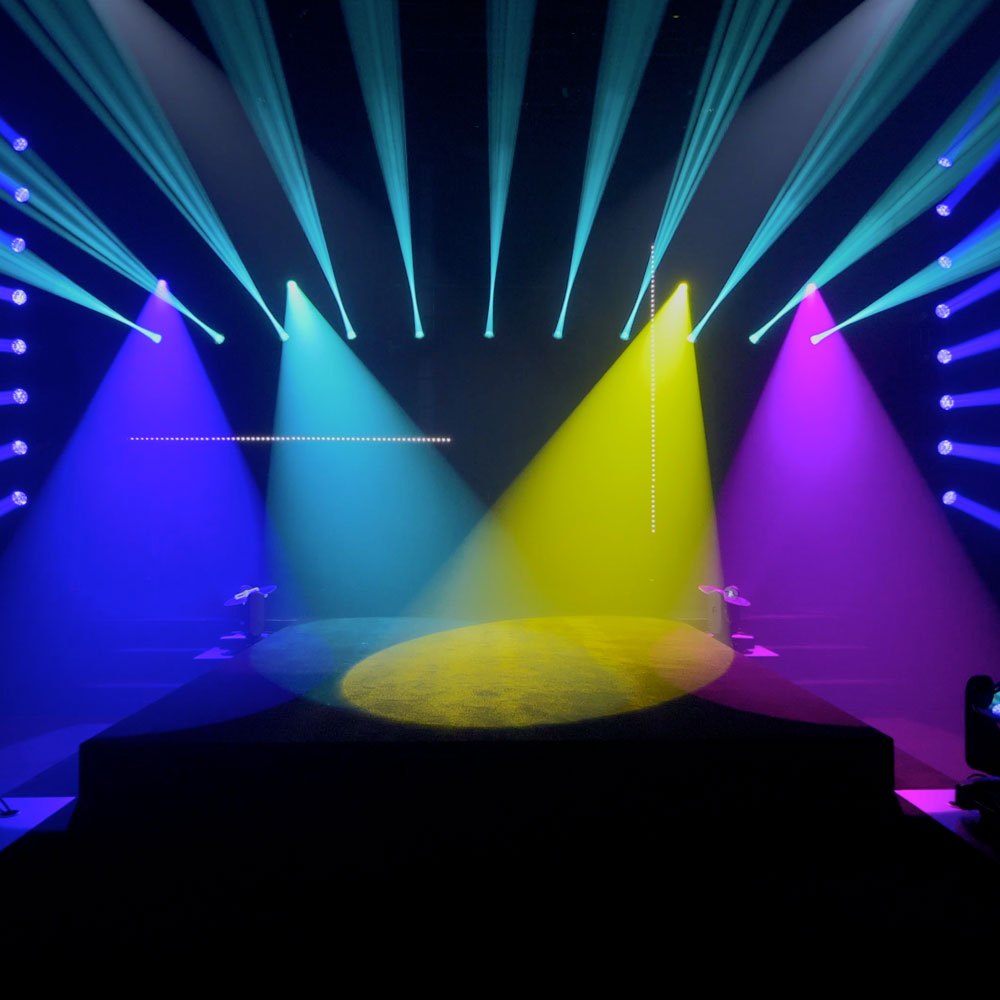

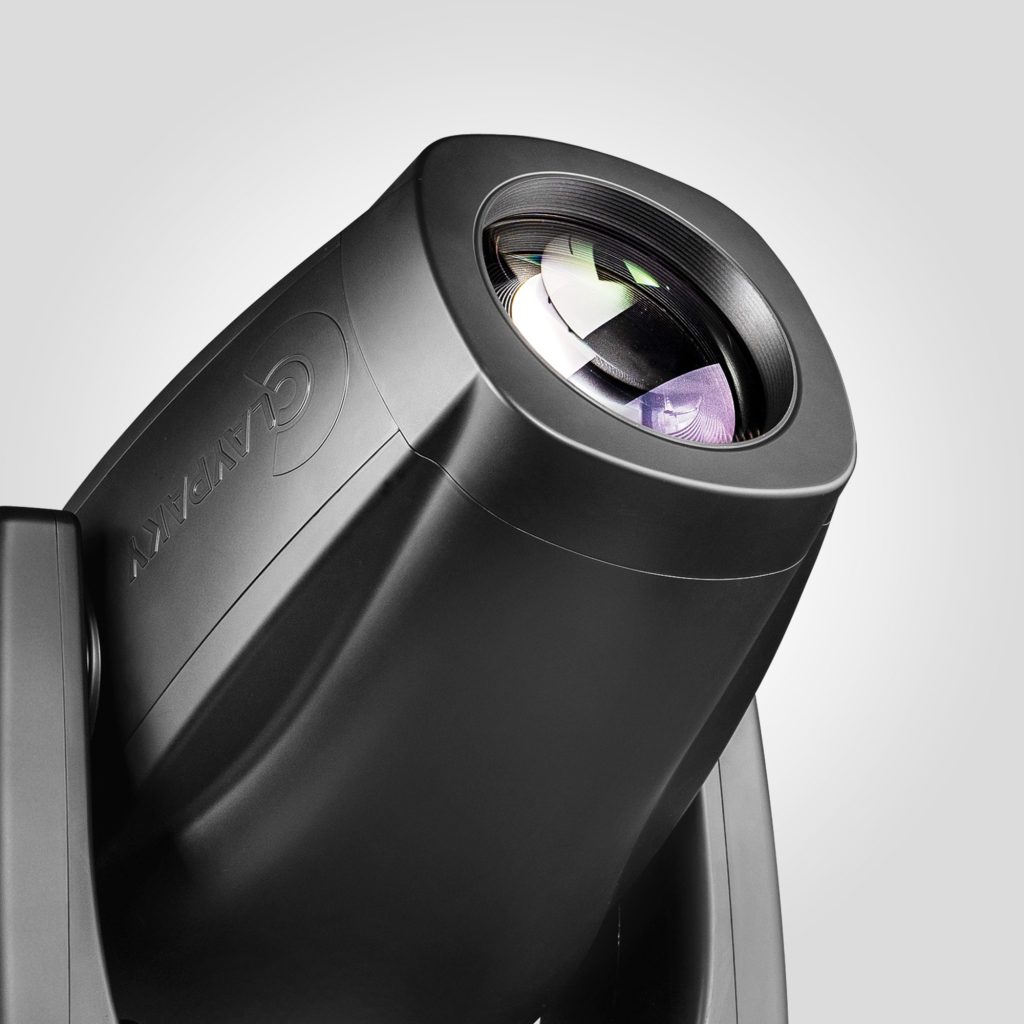

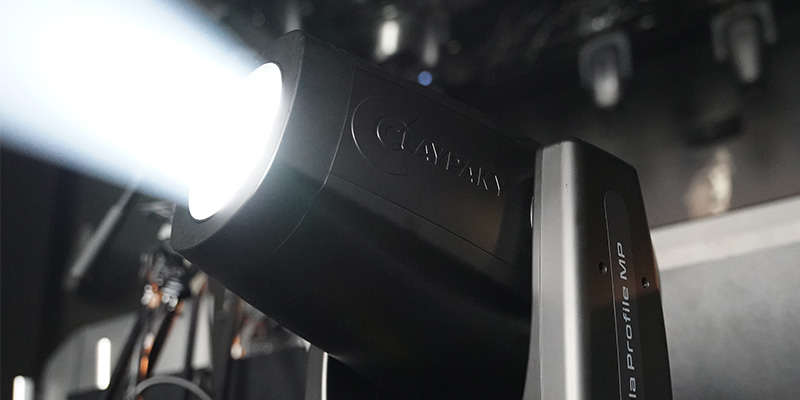

Claypaky known for our industry-leading precision optics and color reproduction has given the Arolla Profile MP fixture an optical system with a 6 to 50-degree zoom range, a CMY color mixing system for deep, rich colors (including an unmatched deep red), a seven-color color wheel that includes an 88+ CRI enhancement filter, and linear CTO to hit the color temperatures you need. The unit’s source is a native 6000K that does not produce the metallic white that often limits the fixture’s application and color temperature range. For eye-catching aesthetics, Arolla Profile MP is fitted with a 120-millimeter diameter front lens giving the unit a unique look when viewed from the front.

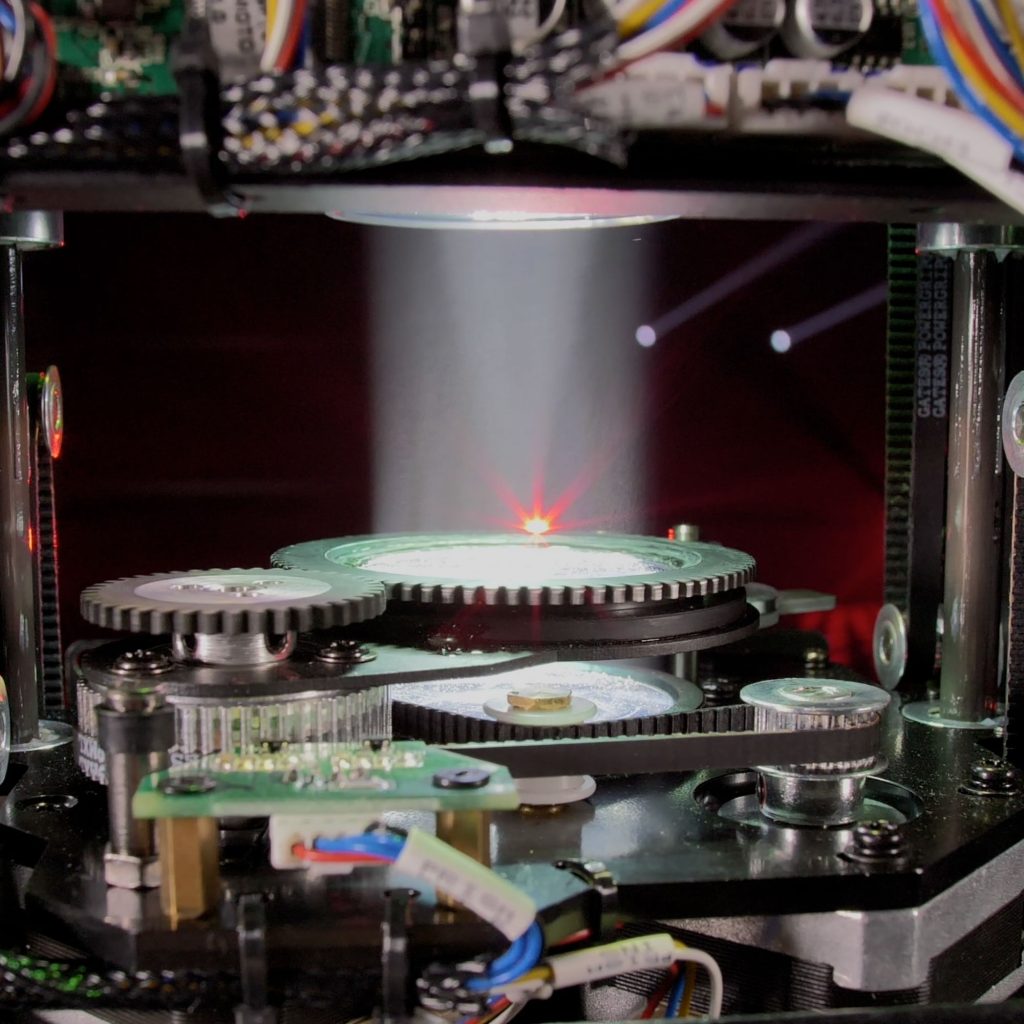

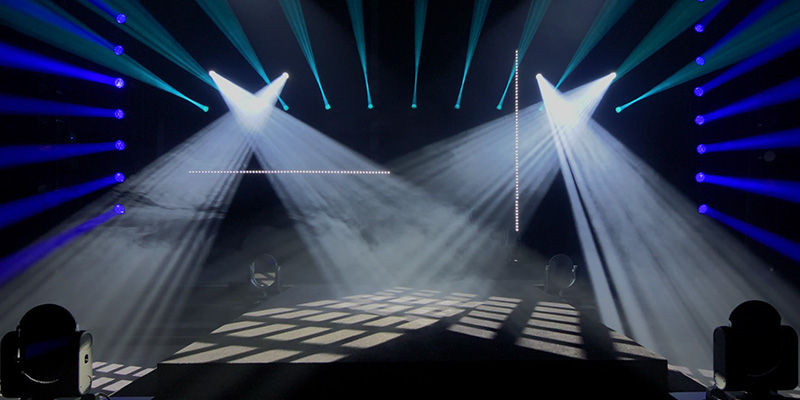

Arolla Profile MP features one rotating gobo wheel with seven rotating high-definition gobos, for effects. Thanks to our exclusive “Go-Bright” technology, there is no light loss or color shift when gobos are inserted into the beam. The unit also includes a four-focal plane framing system, a rotating animation wheel, and a four-facet rotating prism. For beam control a mechanical iris, a variable frost filter, a 24-bit digital dimmer with four user-selectable dimming curves that maintain color balance throughout the dimming range, and a fast-digital stop-strobe. Arolla Profile MP fixture operates on 100 to 240 volts AC and includes five user-selectable fan speed modes: Auto – Sln – Theatre – RnR – Standard.

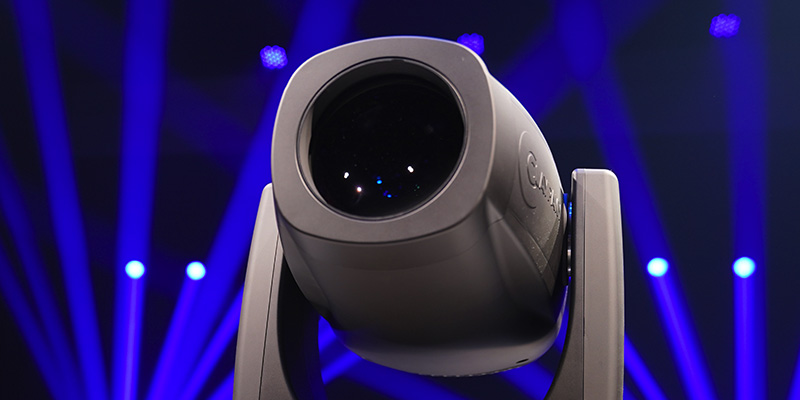

Arolla Profile MP weighs around 25 kilograms, or 55 pounds, making it one of the lightest moving head profile fixtures available, without giving up the output and features often found in much larger and heavier fixtures.
The Arolla Profile MP fixtures’ versatility allows them to fit comfortably and perform in tours, theatres, or fixed installations.
-
Light Source470W white LED engine (6400K ±300)
-
Light Output22,000 lm (in integrating sphere)
-
Zoom range6.2°- 48.8°
-
EffectsCMY color mixing; Linear CTO; 7-color wheel; 4 blades framing system; 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos; Linear heavy frost 5° for wash effect; Animation wheel; 4 Facets prism; Motorized Iris; Motorized Zoom and Focus; High resolution electronic Dimmer – 24 bit; High speed electronic Shutter and Strobe
LIGHT SOURCE
- Source type: White LED
- Power: 470W
- CRI: 70+ with selectable filter for typical CRI value up to 90
- Colour Temperature: 6400K ±300
- LED life expectancy: 40000Hrs L70*
*It may vary depending on various factors, as type of use and environment
PHOTOMETRIC DATA
- Zoom range: 6.2°- 48.8°
- Lumen output: 22054 (Integrating Sphere)
- Front lens: Ø 120 mm
- Optical system: High efficiency
NOISE LEVEL
- Fixed presets:
- Theatre: 43.3
- Silent: 43.9
- RnR: 48.7
- Constant: 49.7
- Auto: 49.8
CONTROL and CONNECTIONS
- Personalities: 2 modes with 37 / 39 channels
- Protocols: DMX, Art-Net, RDM, sACN
- Connectors:
- Locking 5 pin XLR IN/OUT
- RJ45 IN
- Power connector: PowerCon True 1 IN/OUT
- Web Server: Built In
- Cloud/IO: Fully compatible
DYNAMIC EFFECTS
- Colours:
- Linear CMY colour mixing
- Linear CTO 3000k – 6400k
- Fixed color wheel with 7 dichroic colors including High CRI filter
- Gobos:
- 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
Ext diam.22.9mm
Image diam. 17mm
Thickness 1.1mm
- 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
- Framing system:
- 4 blades with +/- 60° rotation of the full system
- “Total Curtain” effect allowing the full blackout with each single blade
- Built In macros
- The framing module is interchangeable with the optional Spot version without any setting.
- Frost:
- Linear heavy frost 5° for wash effect
- Rotating Effects
- Aluminum animation wheel with continuous rotation in both direction at variable speed
- 4 Facets prism with rotation in both direction at variable speed
- Iris:
- Motorized with variable pulse and random effects
- Movement:
- Tilt: 270° – 16bit
- Pan: 540° – 16bit
- Accuracy: Resolution ± 0.17° (Range 0.54°)
- Automatic repositioning
- Fast/Standard speed selectable by Function channel
- Mechanical Pan/Tilt lock for safe transportation and maintenance
- Beam:
- Motorized Zoom and Focus
- Dimmer/Shutter:
– High resolution electronic Dimmer – 24 bit, 4 curves
– High speed electronic Shutter and Strobe
HARDWARE and SOFTWARE
- Long life self-charging battery
- Display Graphic LCD backlit b/w Display
- Firmware upload from another fixture
- Firmware Upgrade via Web Server
- Diagnostic
- DMX monitoring
- Remote access through RDM
HOUSING
- Aluminum and steel structure with plastic covers
- Two side handles for transportation
- IP20 protection rate
- Working in any position
- Hanging system: with fast-lock Omega clamps (1/4 turn) on the base
- Optional safety chain
ELECTRICAL
- Operating Voltage: 100-240V, 50/60 Hz
- Power Supply: Electronic auto range with active PFC
- Max Power consumption: 740VA
THERMAL SPECIFICATION
- Max ambient temperature 45°C (113°F)
- Min ambient temperature -20°C (-4°F)
- Max temperature of the external surface 90°C (194°F)
- Total heat dissipation: 2527 BTU/hr ±10% / 2664 kJ/hr ±10%
SAFETY SPECS
- Minimum distance of illuminated objects: 2.5 meters (8’ 2”)
- Minimum distance from flammable materials: 0.2 meters (8”)
- Protections:
- Thermally protected power supply (overheating and cooling failure)
- Forced ventilation with axial fans
- Fuse T10A – 250V
COMPLIANCE
- CE Marking (in conformity to the following):
- 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
- 2014/30/EU – Electromagnetic Compatibility (EMC)
- 2100/65/EU – Restriction of the use of certain hazardous substances (RoHS)
- 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)
- UKCA conforms to UK regulations:
- S.I. 2016 N. 1101
- S.I. 2016 N. 1091
- S.I. 2012 N.3032
- S.I. 2010 N. 2617
- cMETus LISTED:
- UL 1573:2003
- CSA C22.2 N.166: 2015
PACKAGING
- Carton box + Polystyrene
- Carton box + Foam shell
- Flight case + Foam shell (4 positions)
WEIGHT – SIZE
- Weight: 25 Kg (55.1 lbs)
- Base Dimensions: 250x360mm 9.84 x 14.17 In
- Height with vertical head (h): 593mm 23.34 In
- Distance between two fixtures: 480mm
ACCESSORIES
- Omega clamps: 2 x 183102/805 (included)
- Power cord: CAB02B/802 (included)
- Foam shell: F21324/001 (optional)
- Flight case 4 positions: CF1008F (optional)
- Safety Chain: 105041/003 (optional)
- Kit Arolla Spot MP Gobo Module Converion: CA3007C00100 (optional)
