AP 302
Original price was: €380.00.€340.00Current price is: €340.00. (inc. VAT)
AMS SLAVE AMPLIFIER 2X200 W 8 OHMS 2X300W 4 OHMS
Out of stock
AP 302 is a professional amplifier for low impedance installations. In this way, it allows operation with 4 and 8 ohm speaker systems, as well as in Bridge mode.
For this, it has a stereo / bridge mode selector, as well as a lift ground switch to prevent noise or hum caused by connecting other devices to ground.

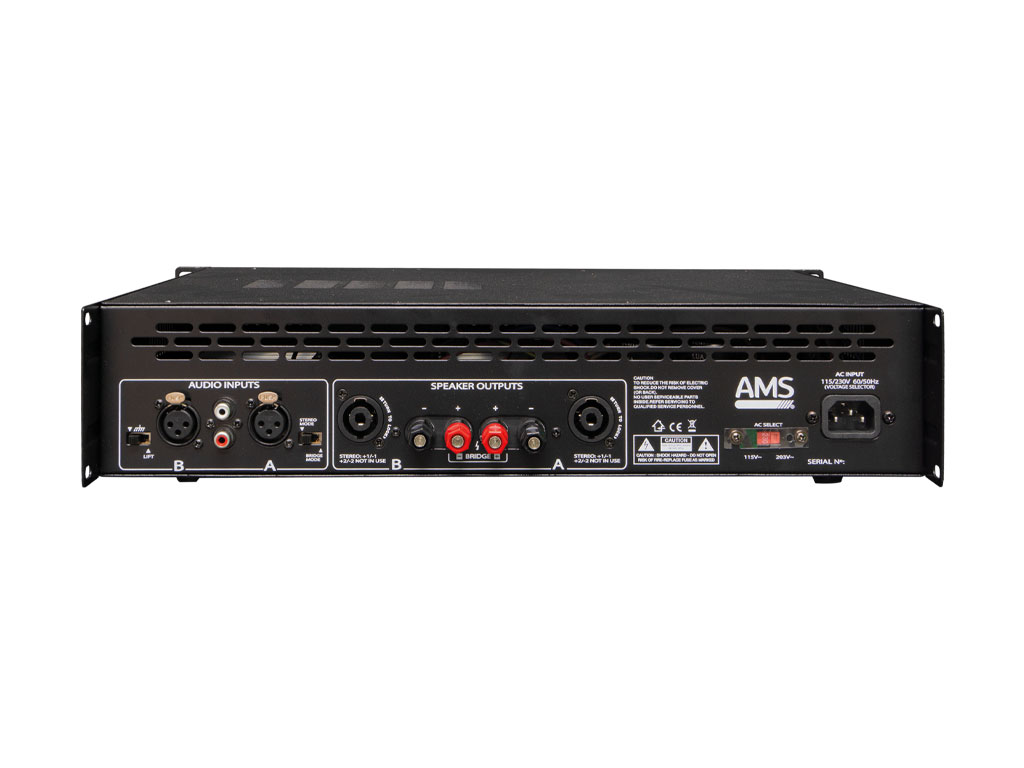

Each channel has balanced / unbalanced inputs through female XLR3 and RCA connectors. For the output it also has double connections, Speakon and Binding Post in this case.
In adition it has various protection systems, including short-circuit and DC at the output, over-temperature or limiter, as well as a soft start function. Its size in 2 HU 19″ standard,
allows the placement of several units in a transport rack.
| Weight | 10 kg |
|---|---|
| Dimensions | 0.35 × 0.48 × 0.09 cm |
- Continuous cycle fans.
- Soft Start function.
| No. Chanels | 2 |
| W/Ch @ 8 Ohm | 200W+200W |
| W/Ch @ 4 Ohm | 300W+300W |
| W Bridge @ 8 Ohm | 600W |
| Frequency Range | 20Hz – 20 kHz ± 1.5dB |
| THD+N | 0.1% |
| Slew Rate | 30V/uS |
| S/N Rate | 95 dBA |
| Damping Factor | >200 (5Hz-1kHz) |
| Dynamic Range | >80 dB |
| Gain | 26 dB |
| Input Impedance | 20 KOhm (balanced) / 10 KOhm (unbalanced) |
| Input Sensitvity | 1V |
| Connections | XNL4/Binding post (Output) XLR3p male/RCA (input) |
| Protections | Soft start, DC, VHF, Short circuit, Limiter, overheat |
