ADP-DAI-AU-1X0
Original price was: €340.00.€305.00Current price is: €305.00. (inc. VAT)

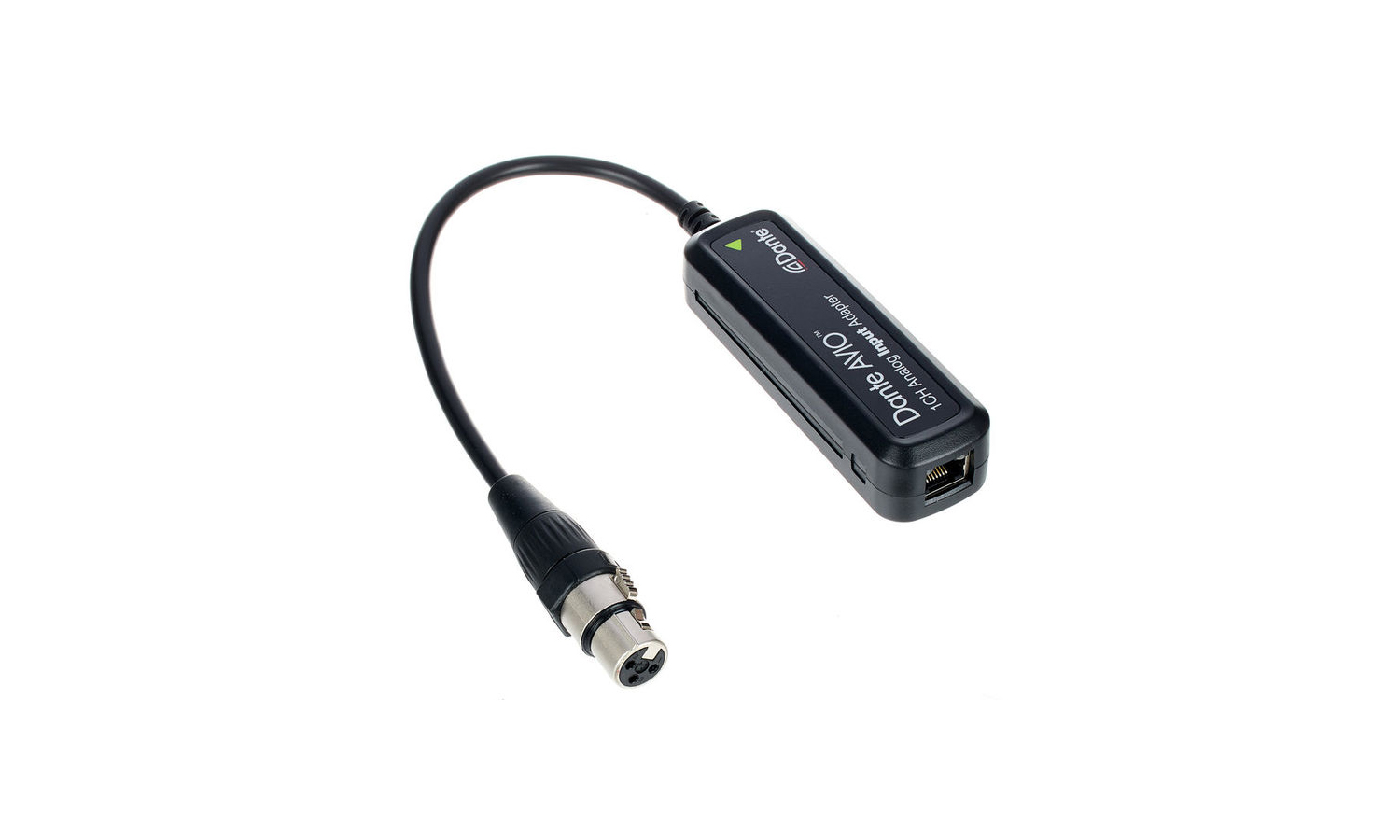

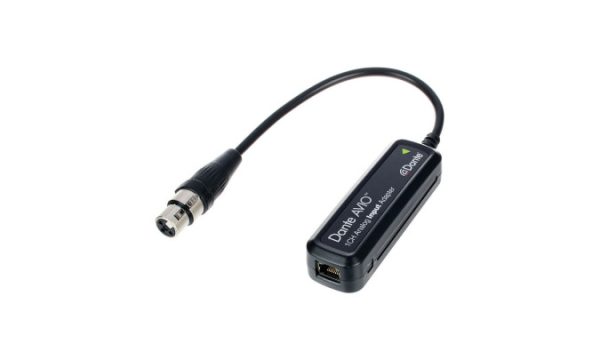

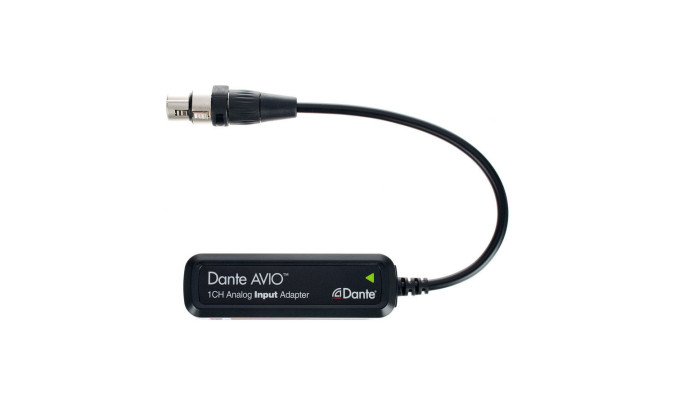

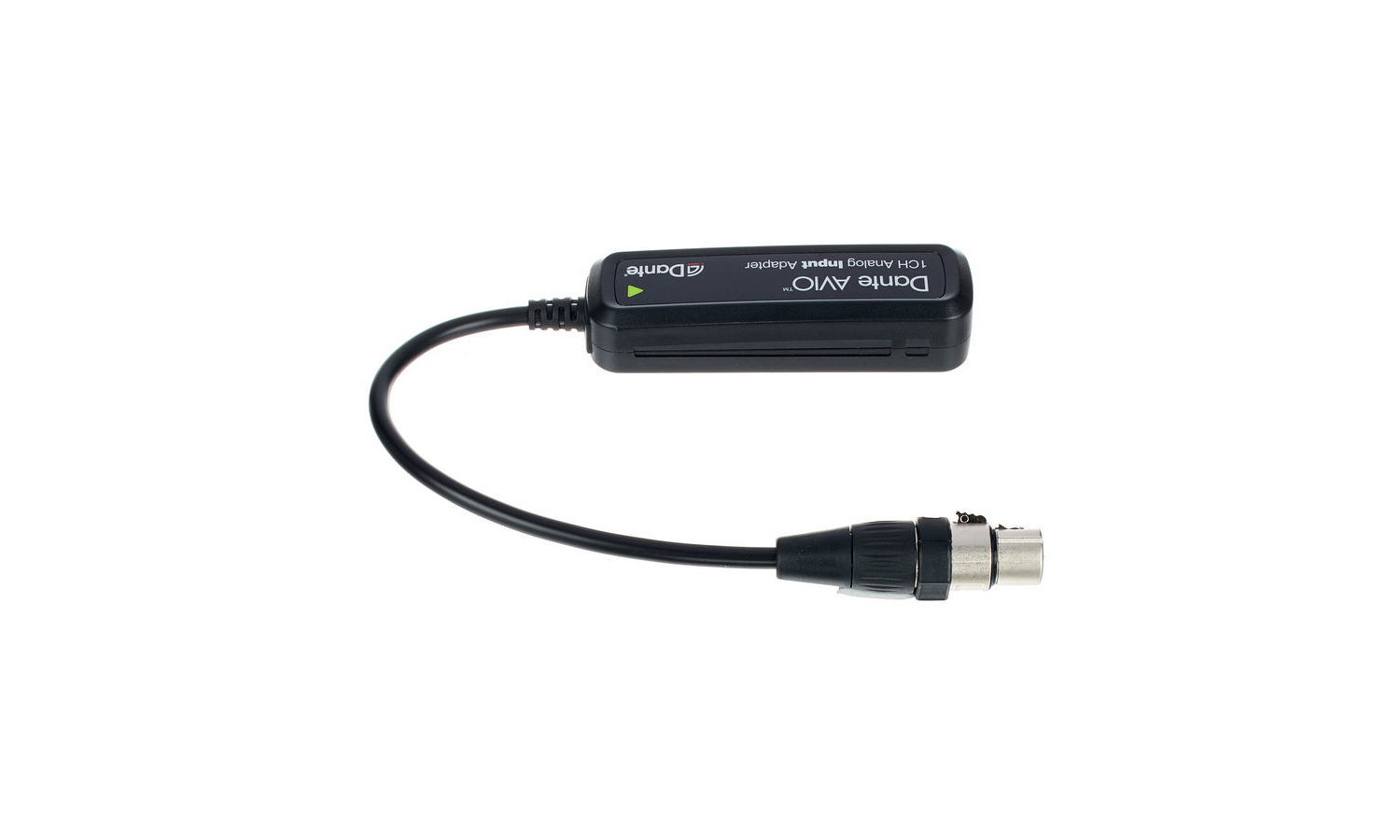

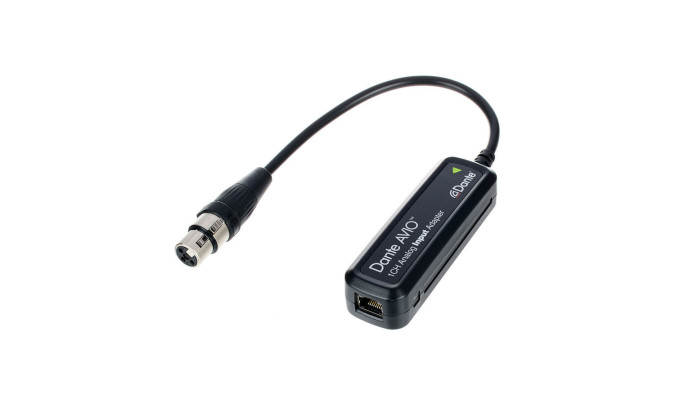

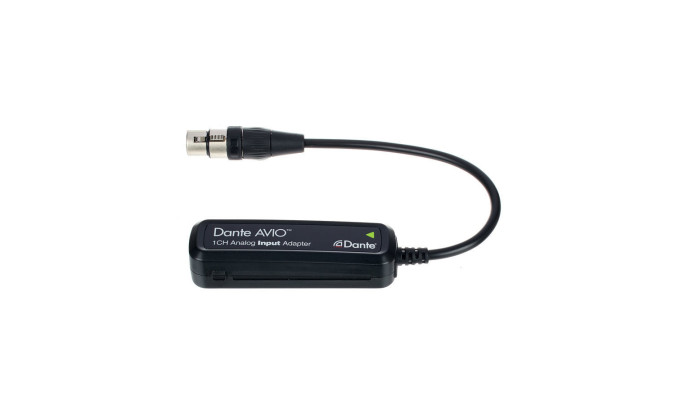

Dante AVIO Analog Input 1×0 |
Only 1 left in stock
Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources – adapt them to the world of audio networking with Dante AVIO. Supports one channel of analog audio input.
• Connect legacy mixers and consoles to a Dante network
• Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
• Connect stage DI boxes and keyboard instruments directly to a Dante network
Note that Dante AVIO adapters require a Power over Ethernet (PoE) switch or 802.3af compliant PoE injector.
| DANTE adapter with an analog input. It allows to connect the output of the tables analog mixes and any system with line-level audio output to a network of DANTE audio. Requires PoE power. |
One channel balanced line level analog input
• Adjustable signal levels: +24dBu / +4dBu / 0dBu/ 0dBV /-10dBV (through Dante Controller)
• Frequency Response: 20Hz to 20kHz (-/+0.5dB)
• Impedance: 20k Ohm balanced, 10k Ohm unbalanced
• Dynamic Range > 100dB
• Signal to Noise Ratio: > 100dB
• Total Harmonic Distortion: < 0.01% at +4dBu
• Sample Rates: 44.1, 48, 96 kHz
• Bit Depth: 24
• Powered through Class 1 802.3af PoE Switch or injector
