Neutrino Series DSP Processors: Versatile I/O Configurations
Neutrino Series processors are available in four I/O configurations – 8×8, 8×16, 16×8 and 16×16 with Mic/Line input selection per input, 48v phantom power, and quality mic pre-amps. A-Series N, D, and ND model versions provide Network I/O (16×16 DANTE™), Digital I/O ( 8×8 AES/EBU), and Network/Digital I/O combo model versions for added I/O and application flexibility. From a large palette of audio DSP modules, create your personal DSP system design to accommodate each unique project requirement. The Xilica Designer software GUI is easy to use and auto features reduce DSP design time and network connection management (in DHCP mode). Control Neutrino via Ethernet using the included Xilica Designer software GUI, from any PC using our NeuPanel PC control designer, with the logic input/relay output ports, using optional controls, or any third party controller.
Inputs and Outputs
Input Impedance: >10k Ohms
Output Impedance: 50 Ohms
Maximum Level: +20dBu
Type: Electronically balanced
Audio Performance
Frequency Response: +/- 0.1dB (20 to 30kHz)
Dynamic Range: 110dB typ (unweighted)
CMMR: > 100dB (50 to 10kHz)
Crosstalk: < -100dB
Distortion: 0.002% (1kHz @+4dBu)
Digital Audio Performance
Processor: 40-bit
Sampling Rate: 48kHz
Analog Converters: High Performance 24-bit

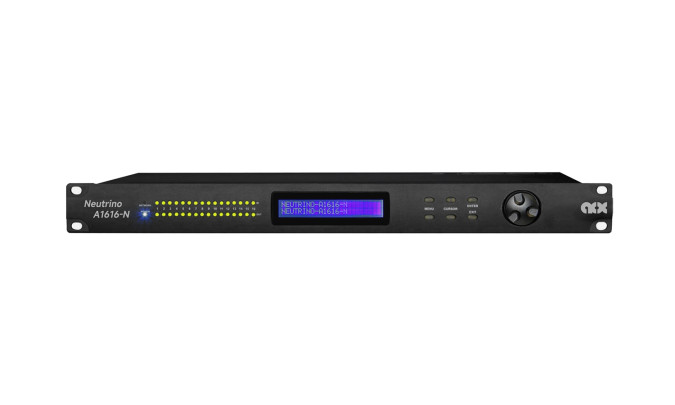

Front Panel Controls
Display: 2 x 24 Character Backlit LCD
Signal LEDs: 1 per channel
Status LED: Data
Buttons: Menu Controls
Dial Encoder: Embedded Thumb Wheel

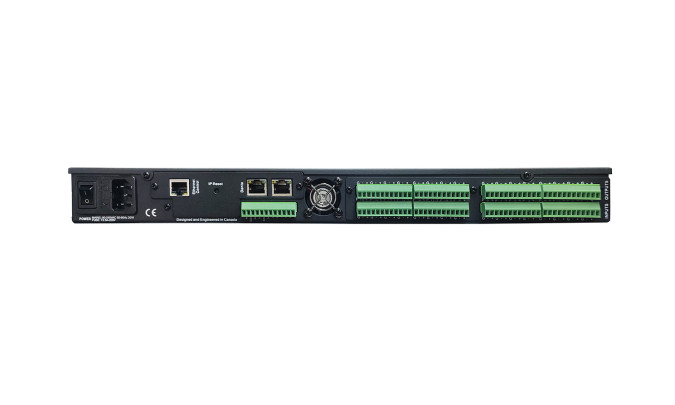

Connectors
Analog Inputs: Phoenix Plug-in 3.81mm
Analog Outputs: Phoenix Plug-in 3.81mm
Ethernet: Standard CAT-5
Power: Standard IEC Socket
General
Power: 90-240 VAC (50-60Hz)
Dimensions: 19”x1.75”x9” (483x44x229 mm)
Weight: 11 lbs / 5 kg
EAN Code: 885799110037
Note: Specifications subject to change without notice
